203CNQ080R

Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 200A, Silicon, PLASTIC, PRM4, 2 PIN
CategoryDiscrete semiconductor    diode
File Size459KB,16 Pages
ManufacturerSENSITRON
Websitehttp://www.sensitron.com/
Download Datasheet Parametric View All

203CNQ080R Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 200A, Silicon, PLASTIC, PRM4, 2 PIN

203CNQ080R Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionR-PUFM-X2
Contacts2
Reach Compliance Codecompli
ECCN codeEAR99
applicationPOWER
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PUFM-X2
Humidity sensitivity level1
Maximum non-repetitive peak forward current2500 A
Number of components2
Phase1
Number of terminals2
Maximum output current200 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologySCHOTTKY
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
t
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 890, REV. A

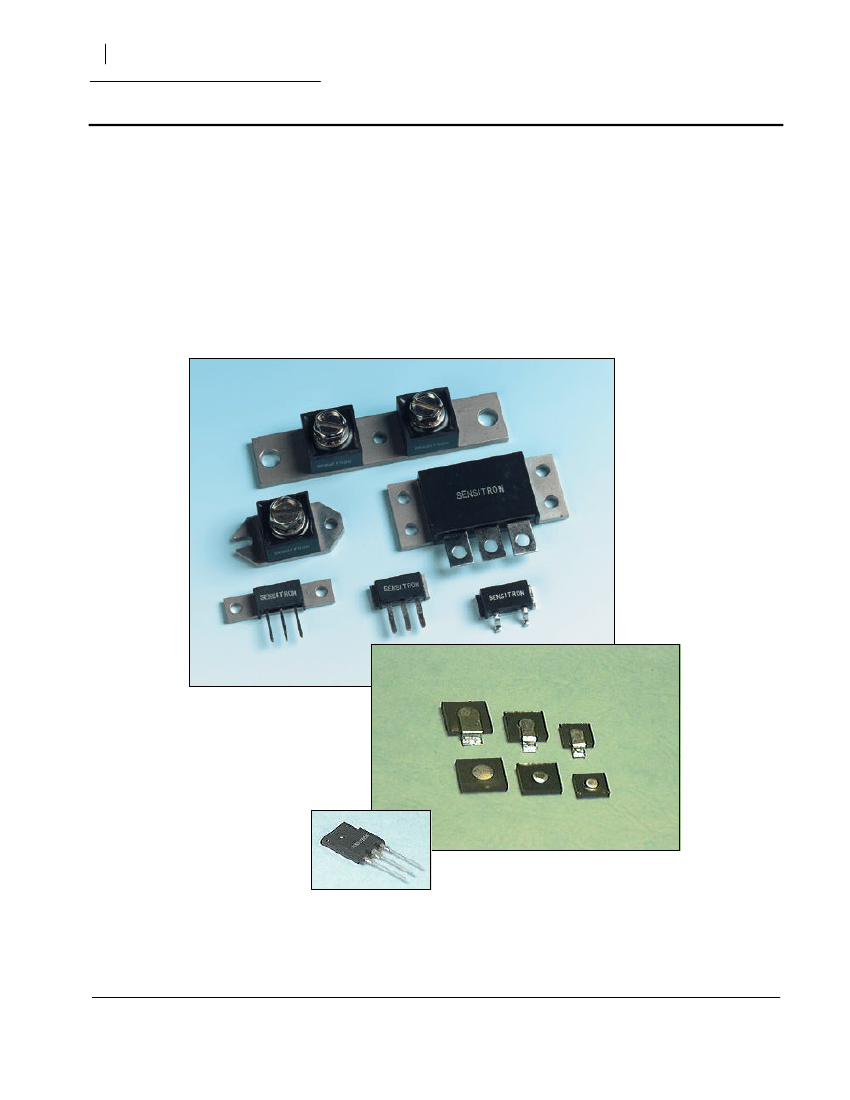

Plastic Schottky Rectifier
Product Catalog
New Package! TO-247
Featuring:
High Current/Leaded and Surface Mount Package Types
