TCS5037-0141177: DescriptionCircular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric Compare View All

TCS5037-0141177 Overview

Circular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle

TCS5037-0141177 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

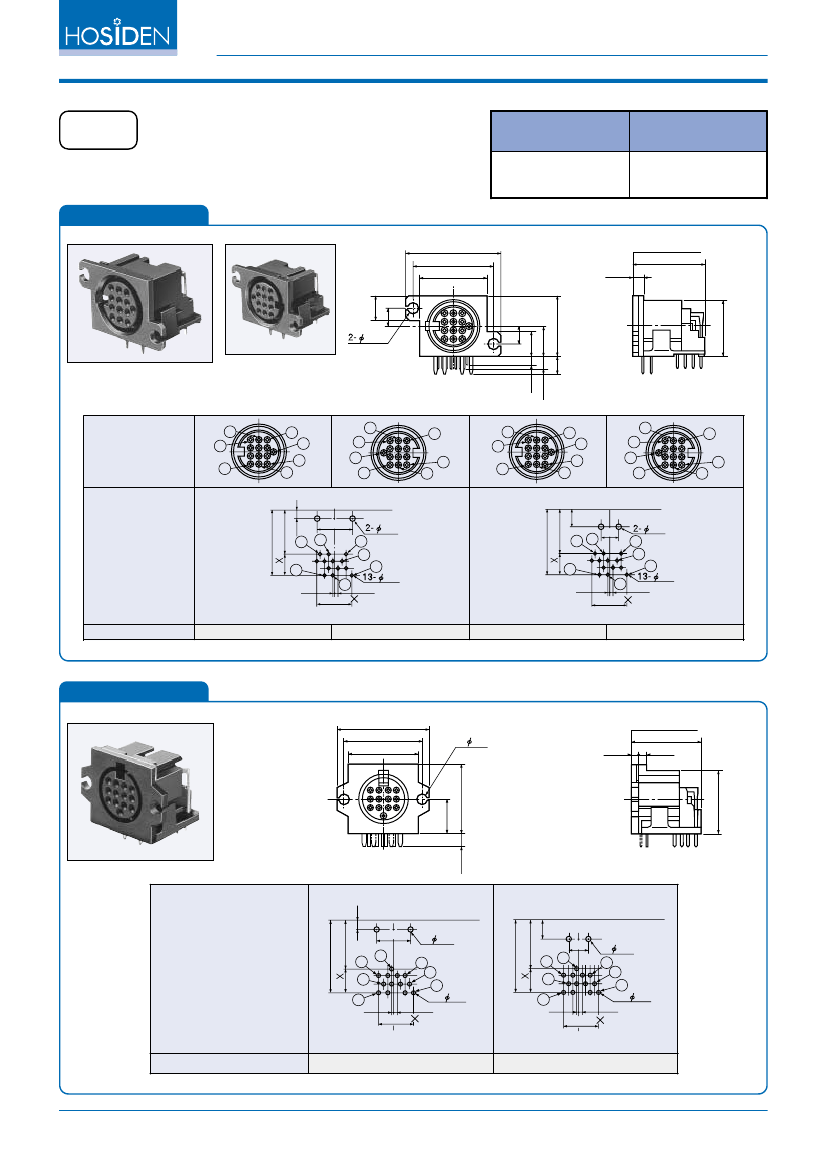

Circular

【

13P

】

Quick Locking Type

Unit:mm

13Pin

Receptacle Model No.

TCS5091

TCS5092

TCS5037

Mate Plug Model No.

TCP9361（P.4）

TCP9386（P.4）

TCP4307（P.4）

TCS5091-1141177

Right Angle Receptacle

27

23

19

Front of Socket

20

3

7

5

TCS5092-1141177

3

3.75

5

7

8.5

3.2

5

Pin Arrangement

1

4

9

13

12

8

12

13

9

8

5

4

1

5

9

13

12

8

12

13

9

8

4

1

5

4

18.5

12.5

2.5

18.5

12.5

Front of Socket

E

10

1.4

4

8

12

9

13

5 0.95

0.3

P=1.25 8

0.9

Front of Socket

5

E

4

1

0.3

8

5

E

12

13

9

5 0.95

P=1.25 8

0.9

1.4

P=2 3

Recommended PCB

Layout

(BOTTM VIEW)

1

Model No.

TCS5091-1140177

TCS5092-1140177

TCS5091-1141177

P=2 3

TCS5092-1141177

TCS5037-0140177

Right Angle Receptacle

26

22.2

19.5

Front of Socket

20

2

2-

3.2

2

19.5

10

2.5

3.5

Front of Socket

5

E

12.5

E

10

2-

9

5

0.9

1.4

18.5

E

5

12 13

P=2 3

8

4

E

Front of Socket

2-

9

5

0.9

1.4

P=2 3

Recommended PCB

Layout

(BOTTM VIEW)

18.5

12.5

12

8

4

13

1

13-

0.95

0.3

P=1.25 8

1

13-

0.95

0.3

P=1.25 8

Model No.

TCS5037-0140177

TCS5037-0141177

18

15.8

17

TCS5037-0141177 Related Products

	TCS5037-0141177	TCS5092-1140177	TCS5091-1141177	TCS5091-1140177	TCS5037-0140177	TCS5092-1141177
Description	Circular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle	Circular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle	Circular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle	Circular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle	Circular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle	Circular Connector, 13 Contact(s), Female, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	13	13	13	13	13	13
