NPN High Power Silicon Transistors
2N6674 & 2N6675
Features
•
•
Available in JAN, JANTX, and JANTXV
per MIL-PRF-19500/537
TO-3 (TO-204AA) Package
Maximum Ratings
Ratings
Collector - Emitter Voltage
Collector - Base Voltage
Collector - Base Voltage
Emitter - Base Voltage
Base Current
Collector Current
Total Power Dissipation @ TA = +25 °C (1)
@ TA = +25 °C
Operating & Storage Temperature Range
Symbol
VCEO
VCBO
VCBX
VEBO
IB
IC
PT
Top, Tstg
6.0(2)
175
2N6674
300
450
450
7.0
5.0
15
3.0(3)
175
2N6675
400
650
650
Units
Vdc
Vdc
Vdc
Vdc
Adc
Adc
W
W
°C
-65 to +200
Thermal Characteristics
Characteristics
Thermal Resistance, Junction-to-Case
1) Derate linearly @ 1.0 mW/°C for TA > +25°C
2) Derate linearly @ 34.2 mW/°C for TA > +25°C
3) Derate linearly @ 17.1 mW/°C for TA > +25°C
Symbol
R
θJC
Maximum
1.0
Units
°C/W
Electrical Characteristics
OFF Characteristics
Collector - Emitter Breakdown Voltage
IC = 200 mAdc
2N6674
2N6675
Collector - Emitter Cutoff Current
VCE = 450 Vdc, VBE = -1.5 Vdc
VCE = 650 Vdc, VBE = -1.5 Vdc
Emitter - Base Cutoff Current
VEB = 7.0 Vdc
Collector - Base Cutoff Current
VCB = 450 Vdc
2N6674
2N6674
2N6675
Symbol
V(BR)CEO
Mimimum
300
400
---
Maximum
---
Units
Vdc
ICEX
0.1
0.1
2.0
1.0
Adc
IEBO
ICBO
---
---
mAdc
mAdc
Revision Date: 9/8/2011
New Product
1
2N6674 & 2N6675
Electrical Characteristics -con’t
ON Characteristics (2)
Forward Current Transfer Ratio
IC = 1.0 Adc, VCE = 3.0 Vdc
IC = 10.0 Adc, VCE = 2.0 Vdc
Collector - Emitter Saturation Voltage
IC = 10.0 Adc, IB = 2.0 Adc
IC = 15.0 Adc, IB = 5.0 Adc
Base - Emitter Saturation Voltage
IC = 1.0 Adc, IB = 2.0 Vdc
VCE(sat)
Symbol
Minimum
Maximum
Unit
HFE
15
8
---
---
40
20
1.0
5.0
1.5
Vdc
Vdc
VBE(sat)
---
DYNAMIC Characteristic
Small-Signal Short-Circuit Forward Current Transfer Ratio
IC = 0.5 Adc, VCE = 10 Vdc, f = 1.0 kHz
Output Capacitance
VCB = 10 Vdc, IE = 0, 100 kHz
≤
f
≤
1.0 MHz
| hfe |
Cobo
td
tr
ts
tf
tc
3.0
150
10
500
pF
Switching Characteristic
Delay Time
Rise Time
Storage Time
Fall Time
Cross-Over Time
0.1
0.6
2.5
0.5
0.5
μs
μs
μs
μs
μs
See Figure 3 of MIL-PRF-19500/537
SAFE OPERATING AREA
DC Tests:
Test 1:
Test 2:
TEST 3:
TEST 4:
TEST 5:
TC = +25 °C, 1 Cycle, t = 1.0 s (See Figure 4 of MIL-PRF-19500/537)
VCE = 11.7 Vdc, IC = 15 Adc
VCE = 30 Vdc, IC = 5.9 Adc
VCE = 100 Vdc, IC = 0.25 Adc
VCE = 25 Vdc, IC = 7.0 Adc
VCE = 300 Vdc, IC = 20 mAdc
VCE = 400 Vdc, IC = 10 mAdc
2N6674
2N6675
Clamped Switching
TA = 25 °C, VCC = 15 Vdc, Load condition B, RBB1 = 5
Ω,
RBB2 = 1.5
Ω,
V BB2 = 5 Vdc, L = 50
μH,
R of inductor = 0.05
Ω,
RL = R of inductor. (See Figure 6 of MIL-PRF-19500/537)
Clamp Voltage = 350, lC = 10 Adc
Clamp Voltage = 450, lC = 10 Adc
(2) Pulse Test: Pulse Width = 300
μs,
Duty Cycle
≤2.0%.
2N6674
2N6675
2
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Revision Date: 8/5/2012
2N6674 & 2N6675

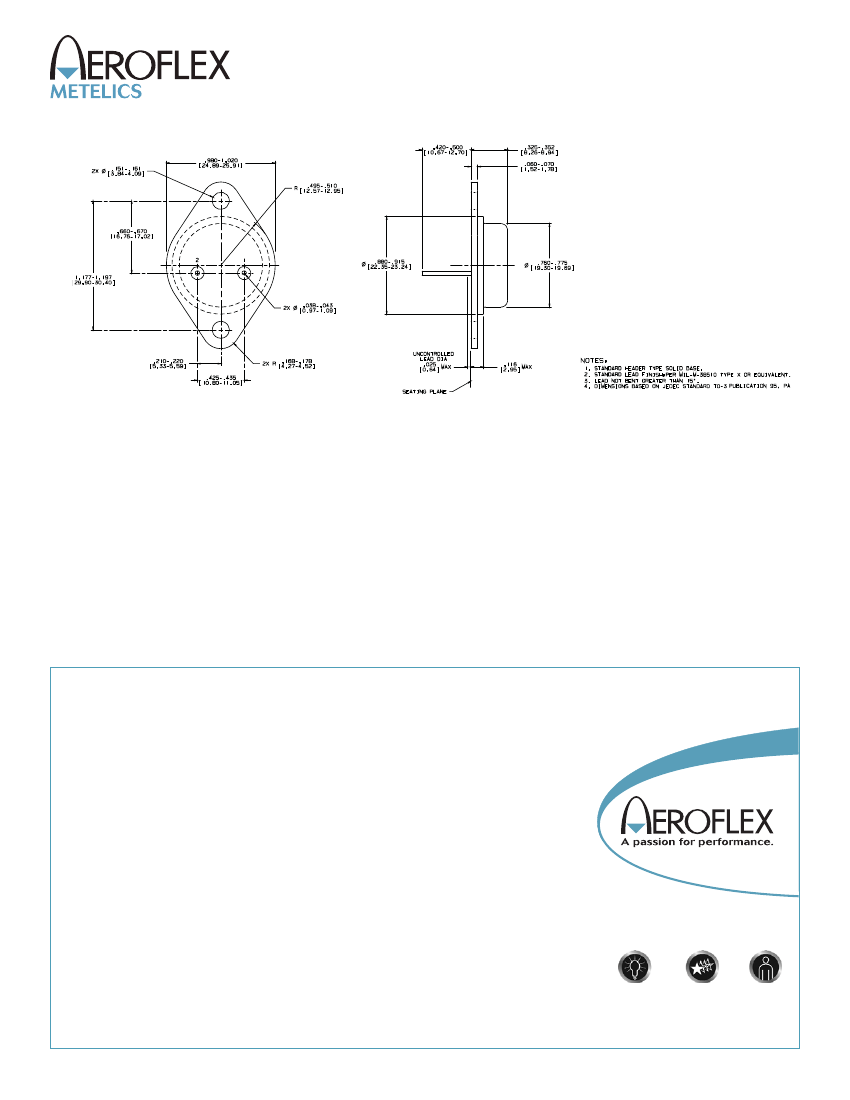

Outline Drawing
