CY7C09349-10AI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY7C09349-10AI

CY7C09349-10AI: DescriptionDual-Port SRAM, 8KX9, 10ns, CMOS, PQFP100, PLASTIC, TQFP-100; Categorystorage storage; File Size80KB，2 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY7C09349-10AI Overview

Dual-Port SRAM, 8KX9, 10ns, CMOS, PQFP100, PLASTIC, TQFP-100

CY7C09349-10AI Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QFP
package instruction	LFQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	10 ns
Spare memory width	18
JESD-30 code	S-PQFP-G100
length	14 mm
memory density	73728 bit
Memory IC Type	DUAL-PORT SRAM
memory width	9
Number of functions	1
Number of ports	2
Number of terminals	100
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX9
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.6 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	14 mm

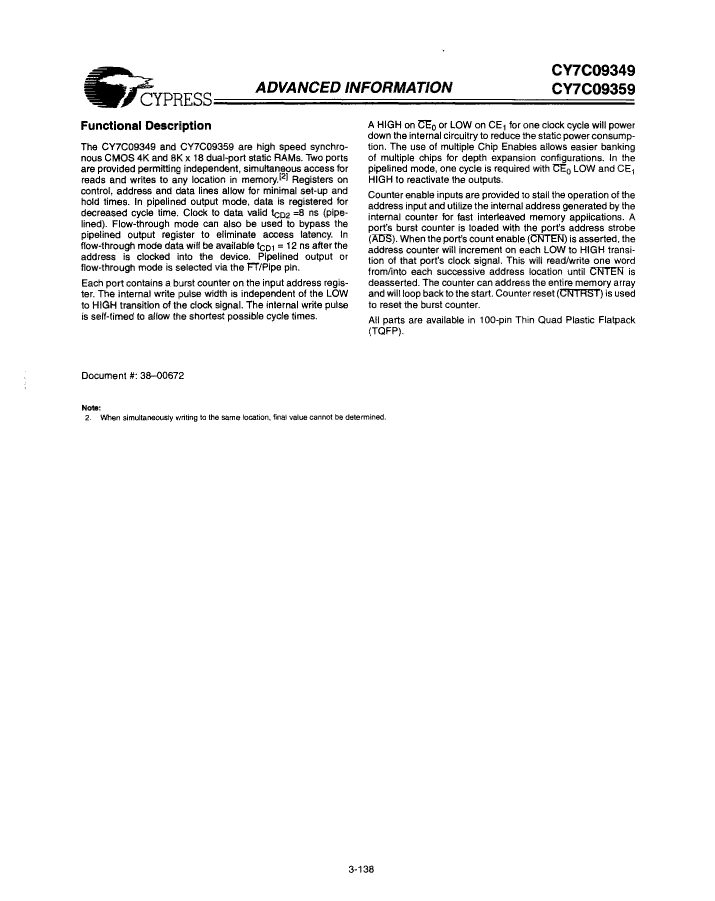

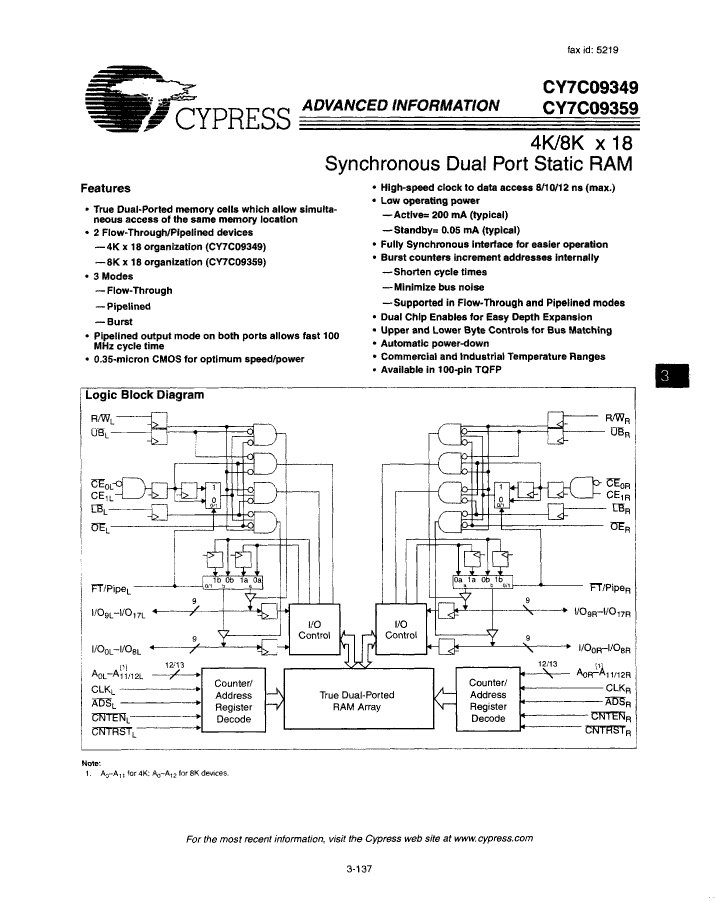

Preview

Download Datasheet

View All

CY7C09349-10AI Related Products

	CY7C09349-10AI	CY7C09359-10AI	CY7C09359-10AC	CY7C09349-8AC	CY7C09349-8AI	CY7C09349-10AC	CY7C09359-8AC	CY7C09359-8AI
Description	Dual-Port SRAM, 8KX9, 10ns, CMOS, PQFP100, PLASTIC, TQFP-100	Dual-Port SRAM, 16KX9, 10ns, CMOS, PQFP100, PLASTIC, TQFP-100	Dual-Port SRAM, 16KX9, 10ns, CMOS, PQFP100, PLASTIC, TQFP-100	Dual-Port SRAM, 8KX9, 8ns, CMOS, PQFP100, PLASTIC, TQFP-100	Dual-Port SRAM, 8KX9, 8ns, CMOS, PQFP100, PLASTIC, TQFP-100	Dual-Port SRAM, 8KX9, 10ns, CMOS, PQFP100, PLASTIC, TQFP-100	Dual-Port SRAM, 16KX9, 8ns, CMOS, PQFP100, PLASTIC, TQFP-100	Dual-Port SRAM, 16KX9, 8ns, CMOS, PQFP100, PLASTIC, TQFP-100
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	LFQFP,	LFQFP,	LFQFP,	LFQFP,	LFQFP,	LFQFP,	LFQFP,	LFQFP,
Contacts	100	100	100	100	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	10 ns	10 ns	10 ns	8 ns	8 ns	10 ns	8 ns	8 ns
Spare memory width	18	18	18	18	18	18	18	18
JESD-30 code	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100
length	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
memory density	73728 bit	147456 bit	147456 bit	73728 bit	73728 bit	73728 bit	147456 bit	147456 bit
Memory IC Type	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM
memory width	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	100	100	100	100	100	100	100	100
word count	8192 words	16384 words	16384 words	8192 words	8192 words	8192 words	16384 words	16384 words
character code	8000	16000	16000	8000	8000	8000	16000	16000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C
organize	8KX9	16KX9	16KX9	8KX9	8KX9	8KX9	16KX9	16KX9
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LFQFP	LFQFP	LFQFP	LFQFP	LFQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Maker	Cypress Semiconductor	-	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
