CY7C4281-10JIR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY7C4281-10JIR

CY7C4281-10JIR: DescriptionFIFO, 64KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32; Categorystorage storage; File Size510KB，15 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY7C4281-10JIR Overview

FIFO, 64KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32

CY7C4281-10JIR Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QFJ
package instruction	QCCJ,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
period time	10 ns
JESD-30 code	R-PQCC-J32
length	13.97 mm
memory density	589824 bit
memory width	9
Number of functions	1
Number of terminals	32
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64KX9
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.55 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm

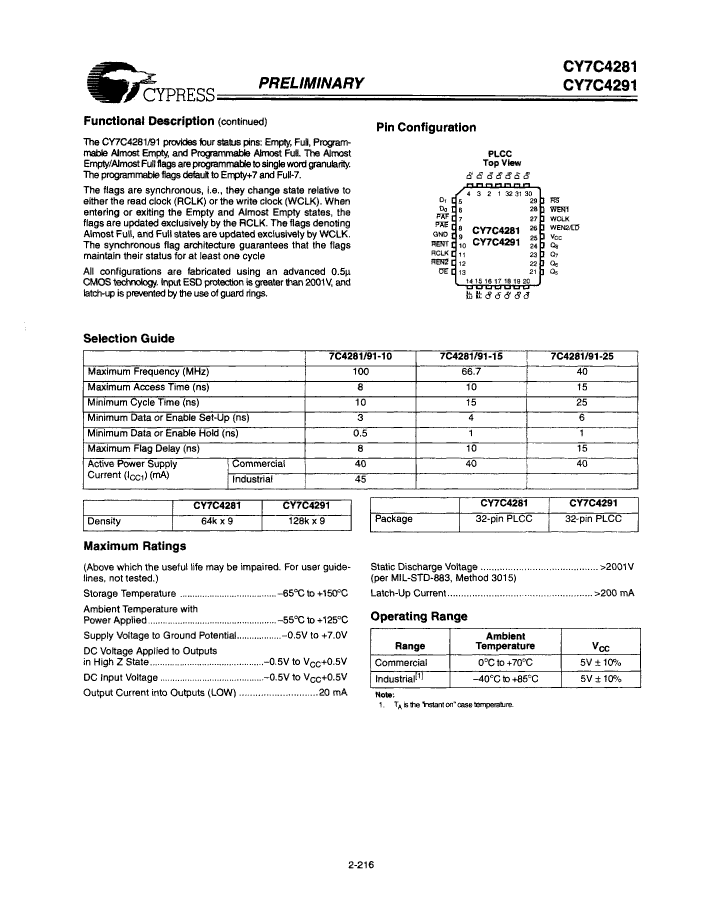

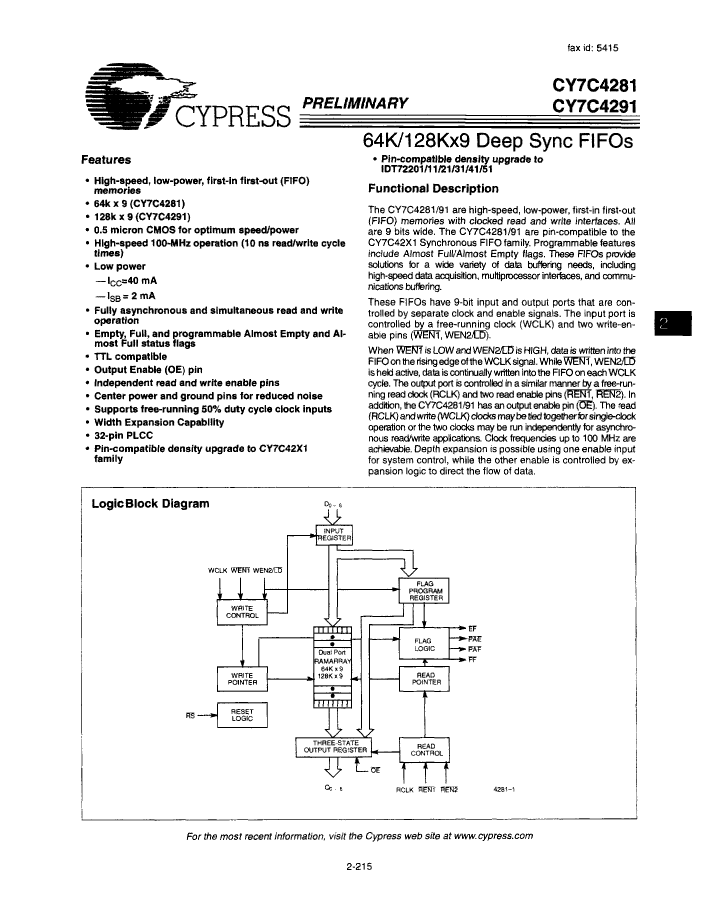

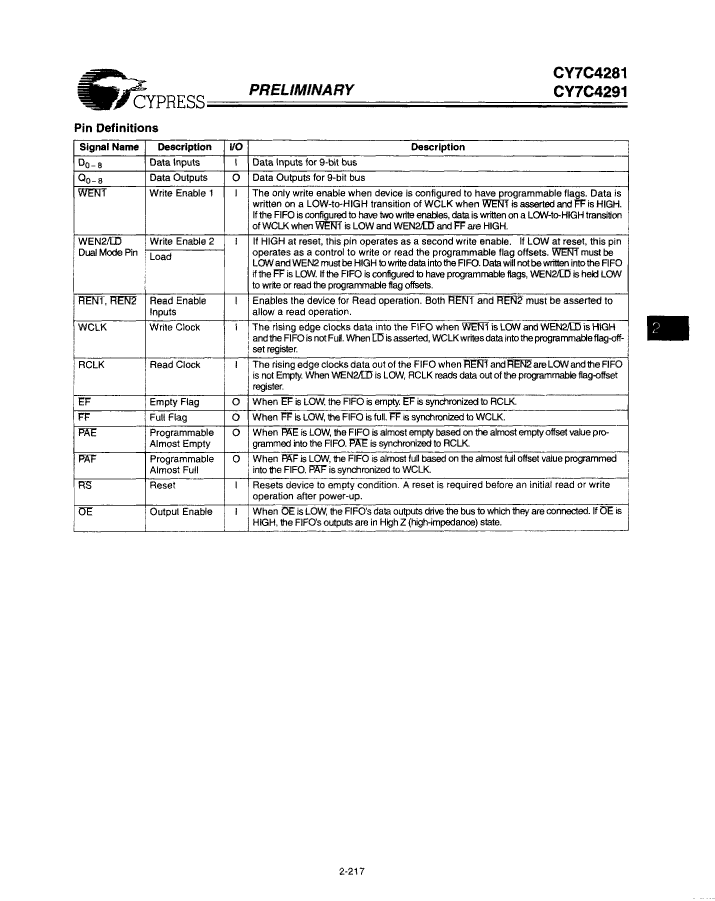

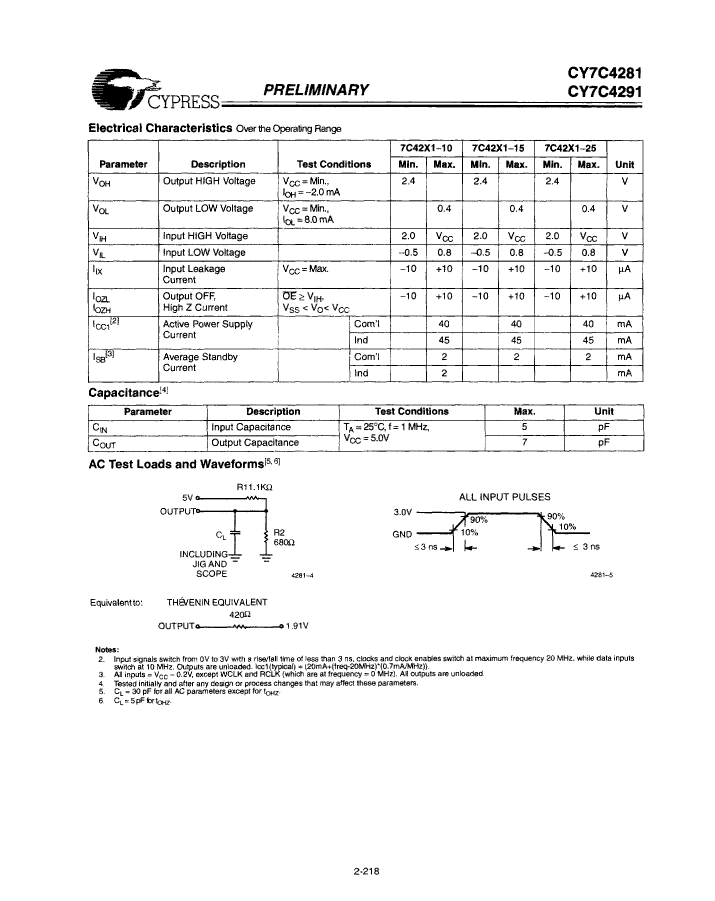

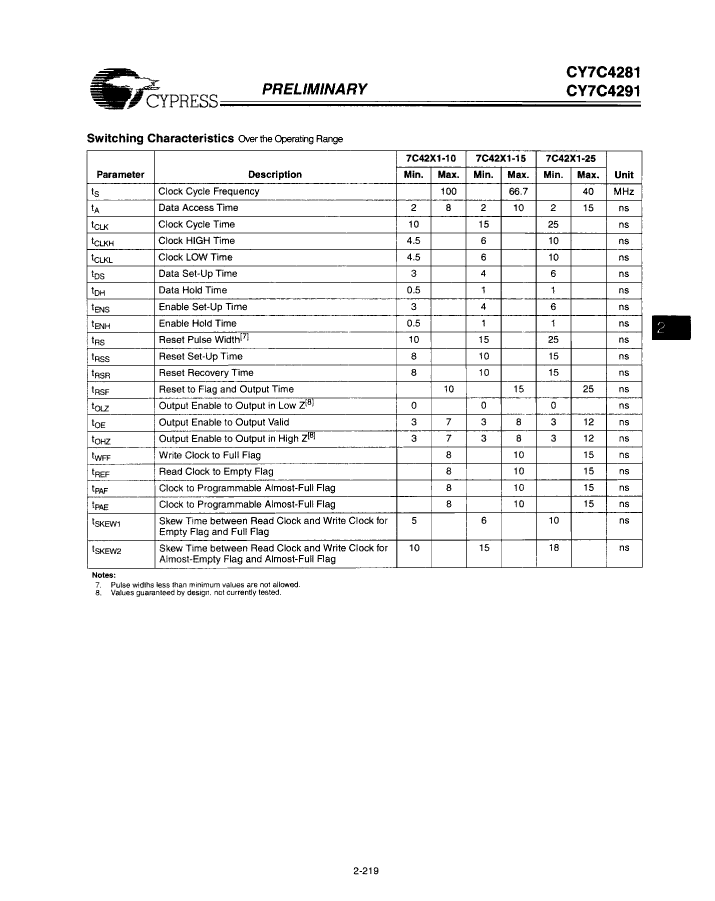

Preview

Download Datasheet

View All

CY7C4281-10JIR Related Products

	CY7C4281-10JIR	CY7C4291-10JIR	CY7C4281-25JCR	CY7C4281-10JCR	CY7C4291-10JCR	CY7C4281-15JCR	CY7C4291-15JCR	CY7C4291-25JCR
Description	FIFO, 64KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32	FIFO, 128KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32	FIFO, 64KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32	FIFO, 64KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32	FIFO, 128KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32	FIFO, 64KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32	FIFO, 128KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32	FIFO, 128KX9, Synchronous, CMOS, PQCC32, PLASTIC, LCC-32
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Contacts	32	32	32	32	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
period time	10 ns	10 ns	25 ns	10 ns	10 ns	15 ns	15 ns	25 ns
JESD-30 code	R-PQCC-J32	R-PQCC-J32	R-PQCC-J32	R-PQCC-J32	R-PQCC-J32	R-PQCC-J32	R-PQCC-J32	R-PQCC-J32
length	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm
memory density	589824 bit	1179648 bit	589824 bit	589824 bit	1179648 bit	589824 bit	1179648 bit	1179648 bit
memory width	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32
word count	65536 words	131072 words	65536 words	65536 words	131072 words	65536 words	131072 words	131072 words
character code	64000	128000	64000	64000	128000	64000	128000	128000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX9	128KX9	64KX9	64KX9	128KX9	64KX9	128KX9	128KX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.55 mm	3.55 mm	3.55 mm	3.55 mm	3.55 mm	3.55 mm	3.55 mm	3.55 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm
