MT28F400B3SG-9T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MT28F400B3SG-9T

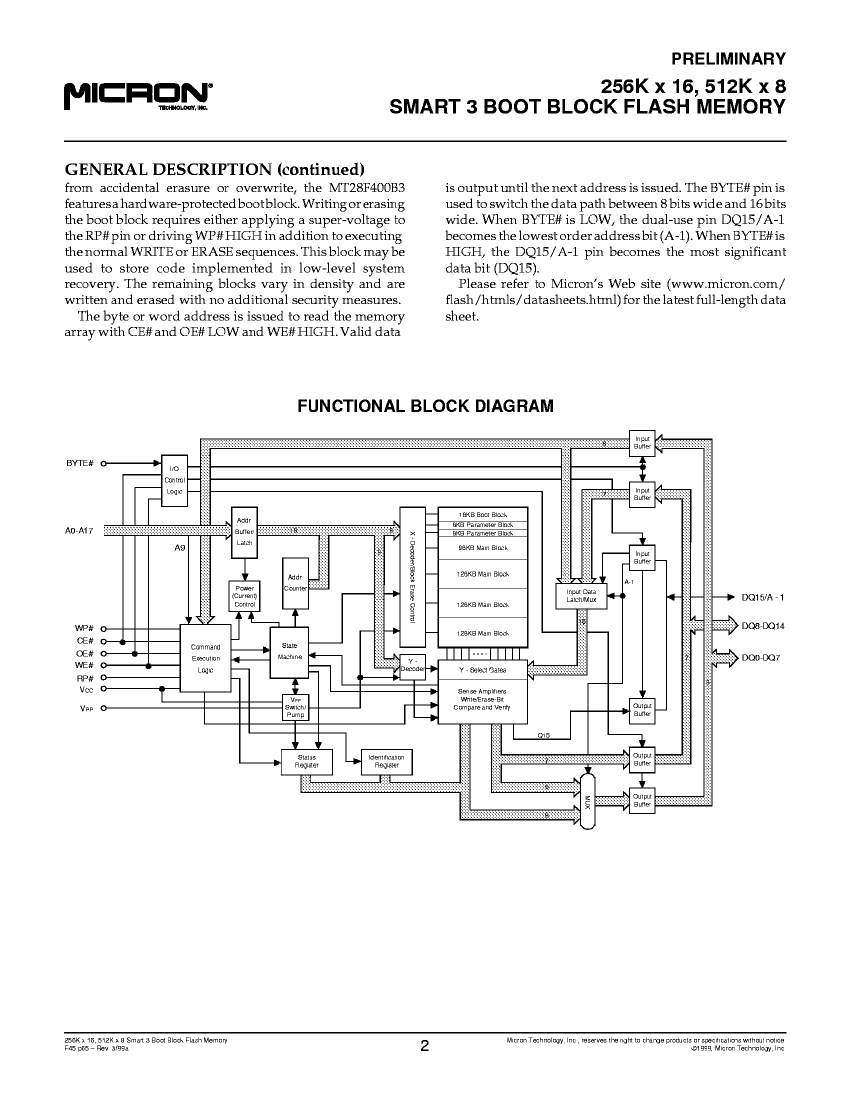

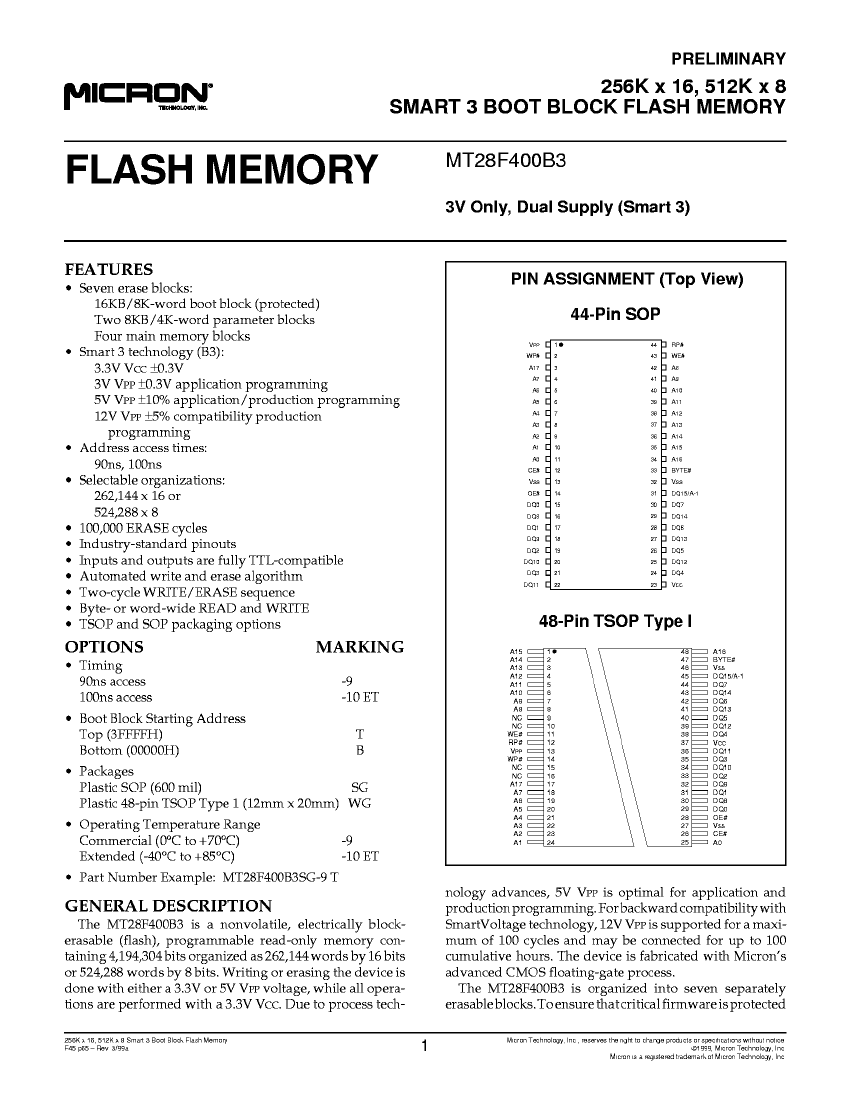

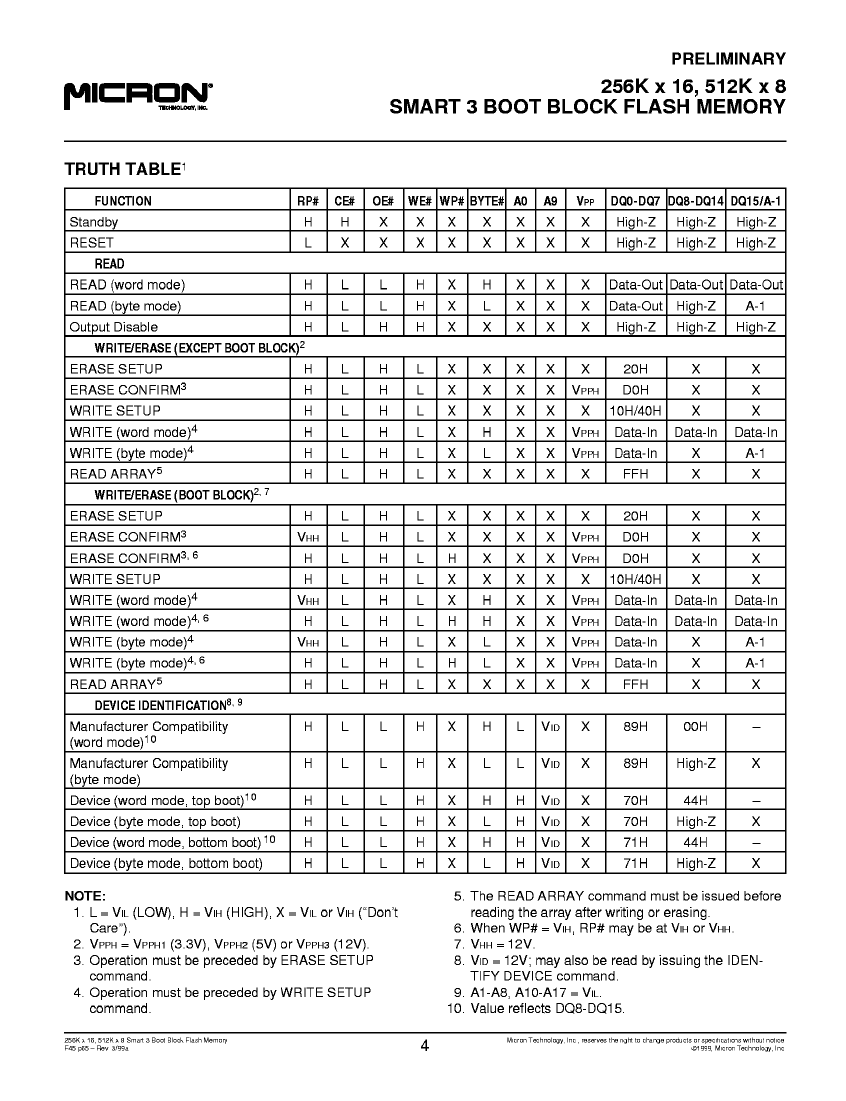

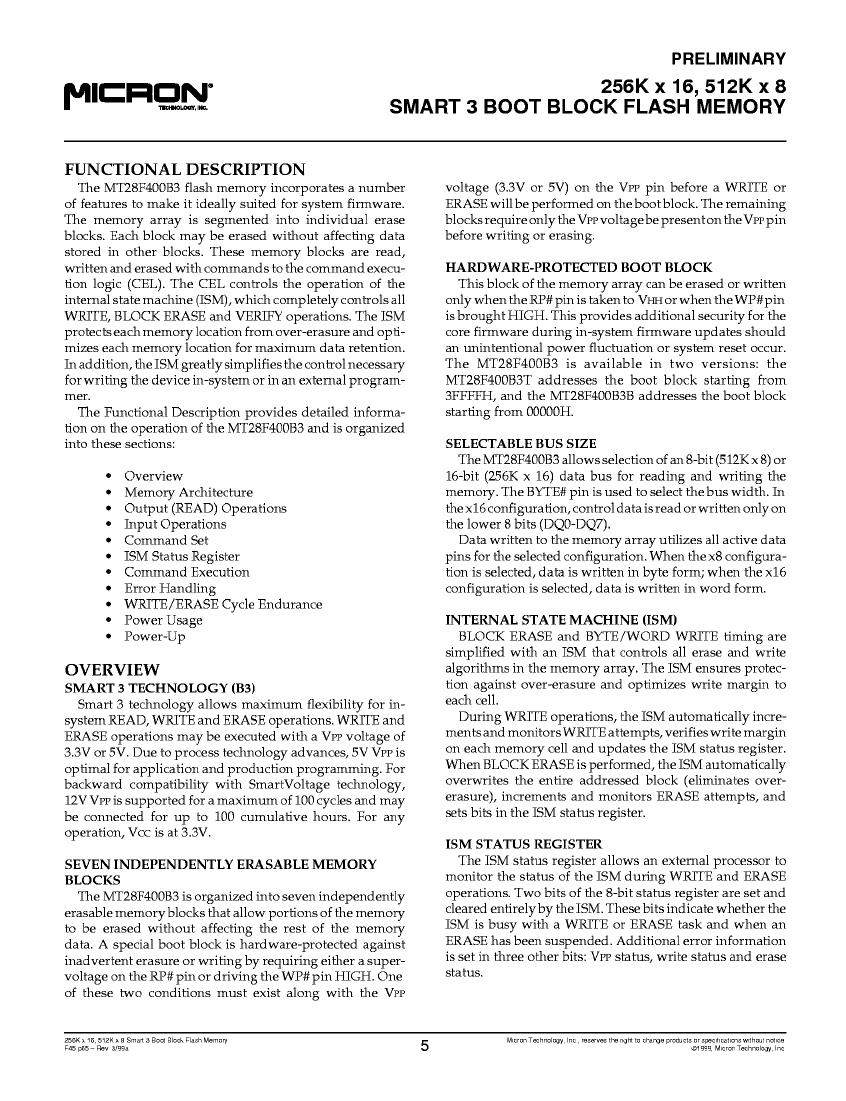

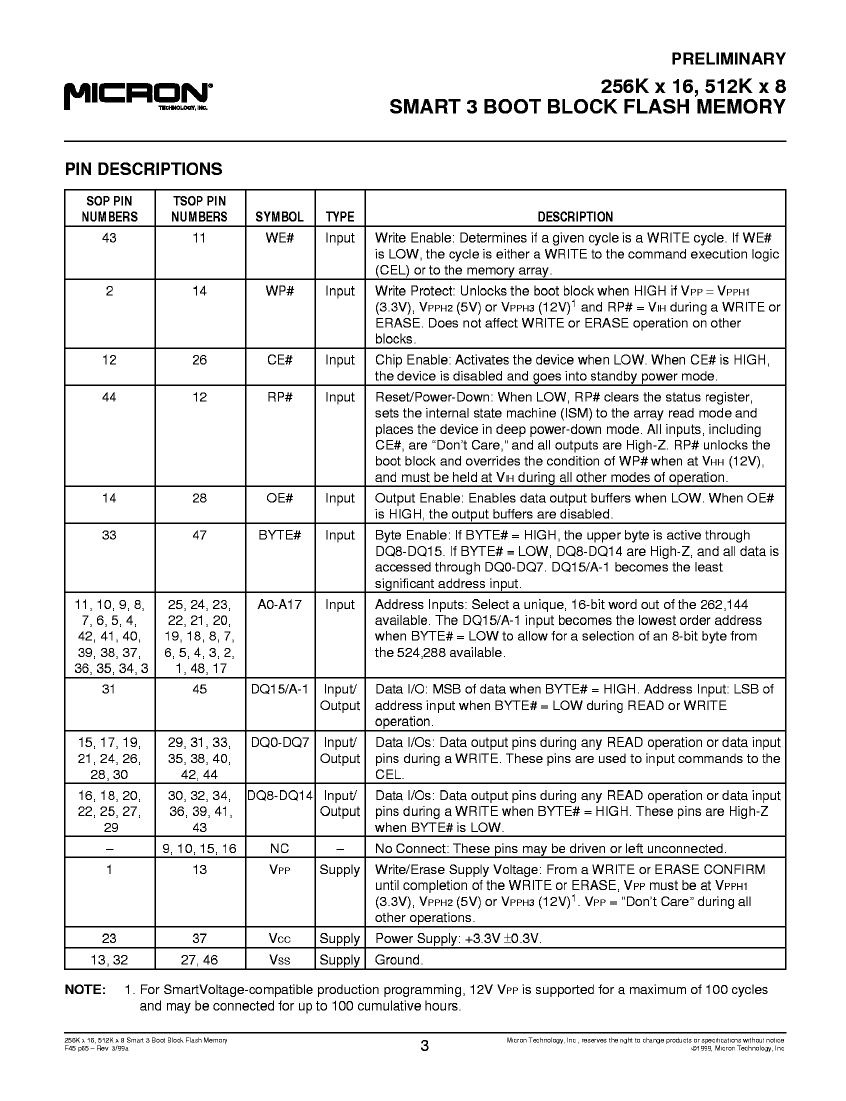

Preview

MT28F400B3SG-9T: DescriptionFlash, 256KX16, 90ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size769KB，28 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT28F400B3SG-9T Overview

Flash, 256KX16, 90ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44

MT28F400B3SG-9T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	0.600 INCH, PLASTIC, SOP-44
Contacts	44
Reach Compliance Code	_compli
ECCN code	EAR99
Maximum access time	90 ns
Other features	ALSO CONFG AS 256KX16; TOP BOOT BLOCK
Spare memory width	8
startup block	TOP
command user interface	YES
Data polling	NO
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	28.195 mm
memory density	4194304 bi
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of departments/size	1,2,1,3
Number of terminals	44
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP44,.63
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	235
power supply	3.3 V
Programming voltage	3 V
Certification status	Not Qualified
Maximum seat height	2.7 mm
Department size	16K,8K,96K,128K
Maximum standby current	0.000005 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
switch bit	NO
type	NOR TYPE
width	12.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MT28F400B3SG-9T Related Products

	MT28F400B3SG-9T	LMZ10504_15	MT28F400B3SG-10ETT	MT28F400B3WG-10ETT
Description	Flash, 256KX16, 90ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	4A SIMPLE SWITCHER Power Module With 5.5-V Maximum Input Voltage	Flash, 512KX8, 100ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 512KX8, 100ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48
Parts packaging code	SOIC	-	SOIC	TSOP1
package instruction	0.600 INCH, PLASTIC, SOP-44	-	0.600 INCH, PLASTIC, SOP-44	12 X 20 MM, PLASTIC, TSOP1-48
Contacts	44	-	44	48
Reach Compliance Code	_compli	-	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99
Maximum access time	90 ns	-	100 ns	100 ns
Other features	ALSO CONFG AS 256KX16; TOP BOOT BLOCK	-	ALSO CONFG AS 256KX16; TOP BOOT BLOCK	ALSO CONFG AS 256KX16; TOP BOOT BLOCK
startup block	TOP	-	TOP	TOP
JESD-30 code	R-PDSO-G44	-	R-PDSO-G44	R-PDSO-G48
length	28.195 mm	-	28.195 mm	18.4 mm
memory density	4194304 bi	-	4194304 bi	4194304 bi
Memory IC Type	FLASH	-	FLASH	FLASH
memory width	16	-	8	8
Number of functions	1	-	1	1
Number of terminals	44	-	44	48
word count	262144 words	-	524288 words	524288 words
character code	256000	-	512000	512000
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	-	85 °C	85 °C
organize	256KX16	-	512KX8	512KX8
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	SOP	TSOP1
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	-	PARALLEL	PARALLEL
Programming voltage	3 V	-	3 V	3 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	-	2.7 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	-	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	-	3.3 V	3.3 V
surface mount	YES	-	YES	YES
technology	CMOS	-	CMOS	CMOS
Temperature level	COMMERCIAL	-	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	-	GULL WING	GULL WING
Terminal pitch	1.27 mm	-	1.27 mm	0.5 mm
Terminal location	DUAL	-	DUAL	DUAL
type	NOR TYPE	-	NOR TYPE	NOR TYPE
width	12.6 mm	-	12.6 mm	12 mm
Base Number Matches	1	-	1	1
