BRD515 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BRD515

BRD515: DescriptionDC-DC Regulated Power Supply Module, 2 Output, DIP-24; CategoryPower/power management The power supply circuit; File Size35KB，1 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

BRD515 Overview

DC-DC Regulated Power Supply Module, 2 Output, DIP-24

BRD515 Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel
Parts packaging code	MODULE
package instruction	,
Contacts	12
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL -15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.65 V
Nominal input voltage	5 V
JESD-30 code	R-XXMA-P
JESD-609 code	e0
Maximum load regulation	0.5%
Number of functions	1
Output times	2
Number of terminals	12
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.6 V
Minimum output voltage	14.4 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

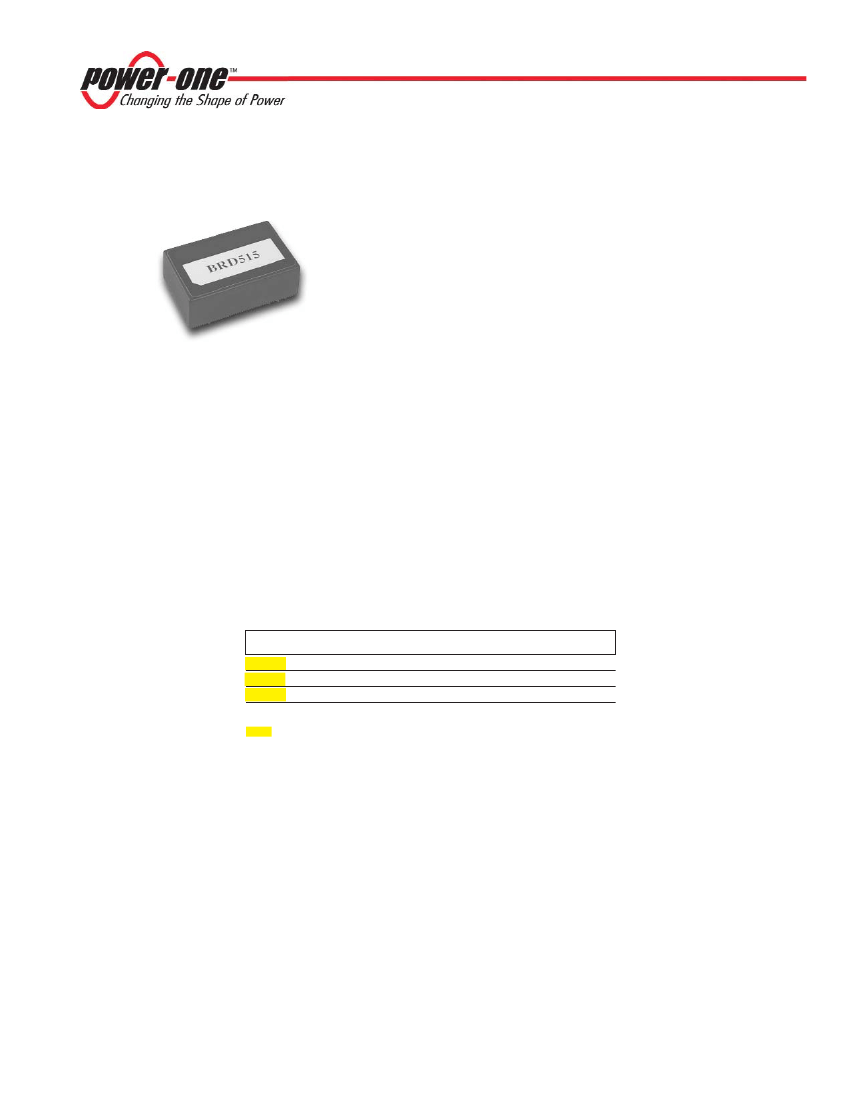

BRD Dual-Output DC-DC Series Data Sheet

2 Watts

Features

•

Dimensions: 1.25” (31.8mm) x 0.80” (20.3mm) x 0.40” (10.2mm)

Industry-standard DIP Package

Industry-standard pinout

85°C case operation

Short-circuit protection

5V input

Input LC filter

Regulated outputs

500V isolation

Description

BRD dual-output DC-DC converters offer excellent

regulation and isolation in an industry-standard DIP

package. The 5V input BRD is ideal for industrial and

EDP applications. The BRD features short-circuit

protection and 500 VDC isolation. Please see the BRS

Series for single-output applications.

Model Selection

MODEL

INPUT VOLTAGE

RANGE (VDC)

OUTPUT

VOLTAGE (VDC)

OUTPUT

CURRENT (AMPS)

BRD505

BRD512

BRD515

4.65 - 5.5

±5

± 12

± 15

± 0.100

± 0.085

± 0.070

Model numbers highlighted in yellow or shaded are not recommended for new designs.

NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not authorized for use as critical components in life support systems,

equipment used in hazardous environments, or nuclear control systems without the express written consent of the respective divisional president

of Power-One, Inc.

TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the

date manufactured. Specifications are subject to change without notice.

REV. MAY 28, 2004

Page 1 of 1

BRD515 Related Products

	BRD515
Description	DC-DC Regulated Power Supply Module, 2 Output, DIP-24
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel
Parts packaging code	MODULE
Contacts	12
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL -15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.65 V
Nominal input voltage	5 V
JESD-30 code	R-XXMA-P
JESD-609 code	e0
Maximum load regulation	0.5%
Number of functions	1
Output times	2
Number of terminals	12
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.6 V
Minimum output voltage	14.4 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
