Part Number

Search

BYV72-100

Description
DIODE 30 A, 100 V, SILICON, RECTIFIER DIODE, Rectifier Diode
CategoryDiscrete semiconductor    diode
File Size119KB,4 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

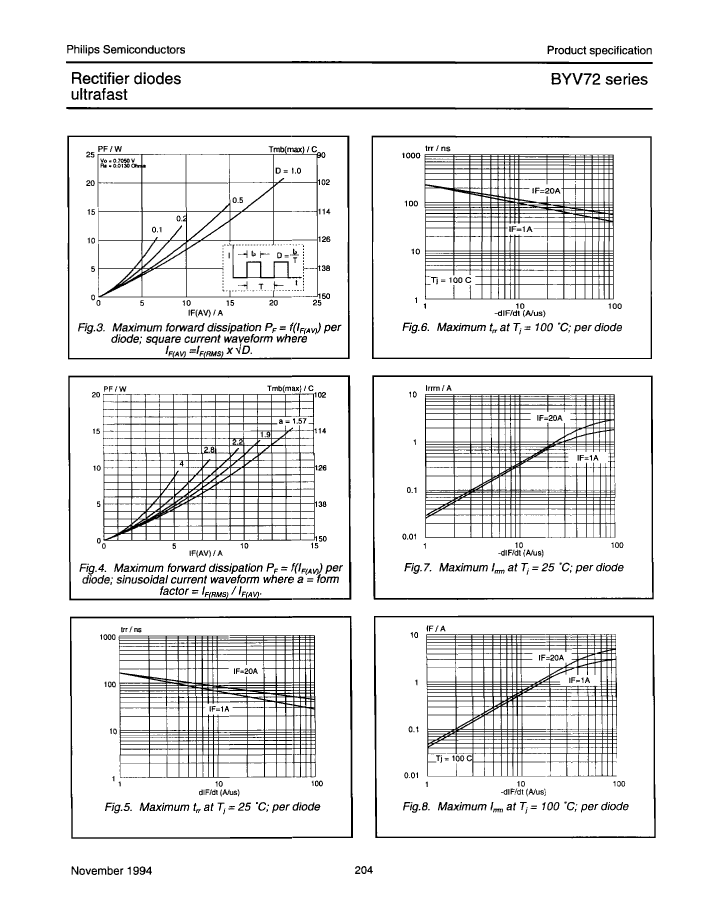

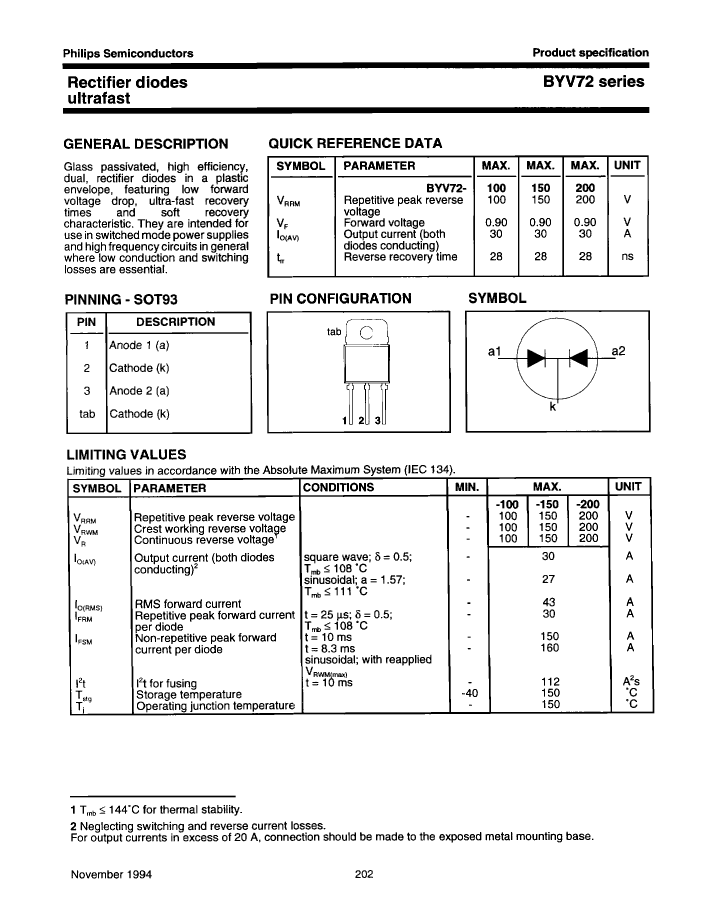

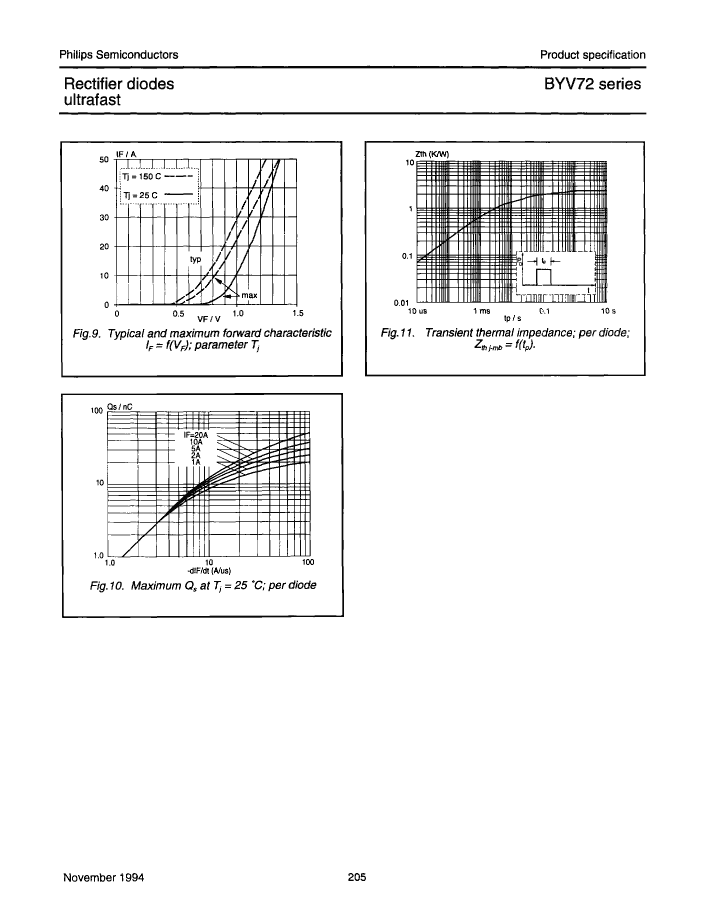

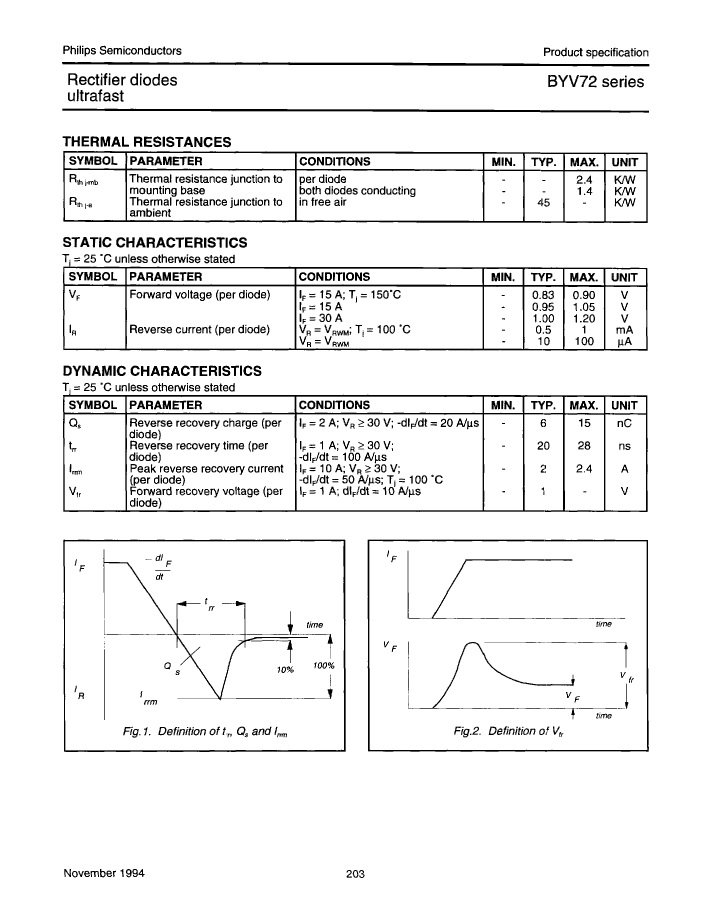

BYV72-100 Overview

DIODE 30 A, 100 V, SILICON, RECTIFIER DIODE, Rectifier Diode

BYV72-100 Parametric

Parameter NameAttribute value
MakerNXP
package instructionR-PSFM-T3
Reach Compliance Codeunknown
applicationEFFICIENCY
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PSFM-T3
Maximum non-repetitive peak forward current160 A
Number of components2
Phase1
Number of terminals3
Maximum output current30 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage100 V
Maximum reverse recovery time0.028 µs
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE

BYV72-100 Related Products

BYV72-100 BYV72-150 BYV72-200
Description DIODE 30 A, 100 V, SILICON, RECTIFIER DIODE, Rectifier Diode DIODE 30 A, 150 V, SILICON, RECTIFIER DIODE, Rectifier Diode DIODE 30 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode
Maker NXP NXP NXP
package instruction R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
Reach Compliance Code unknown unknown unknown
application EFFICIENCY EFFICIENCY EFFICIENCY
Shell connection CATHODE CATHODE CATHODE
Configuration COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
Maximum non-repetitive peak forward current 160 A 160 A 160 A
Number of components 2 2 2
Phase 1 1 1
Number of terminals 3 3 3
Maximum output current 30 A 30 A 30 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 100 V 150 V 200 V
Maximum reverse recovery time 0.028 µs 0.028 µs 0.028 µs
surface mount NO NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE
Maximum operating temperature - 150 °C 150 °C
