2N3663D75Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N3663D75Z

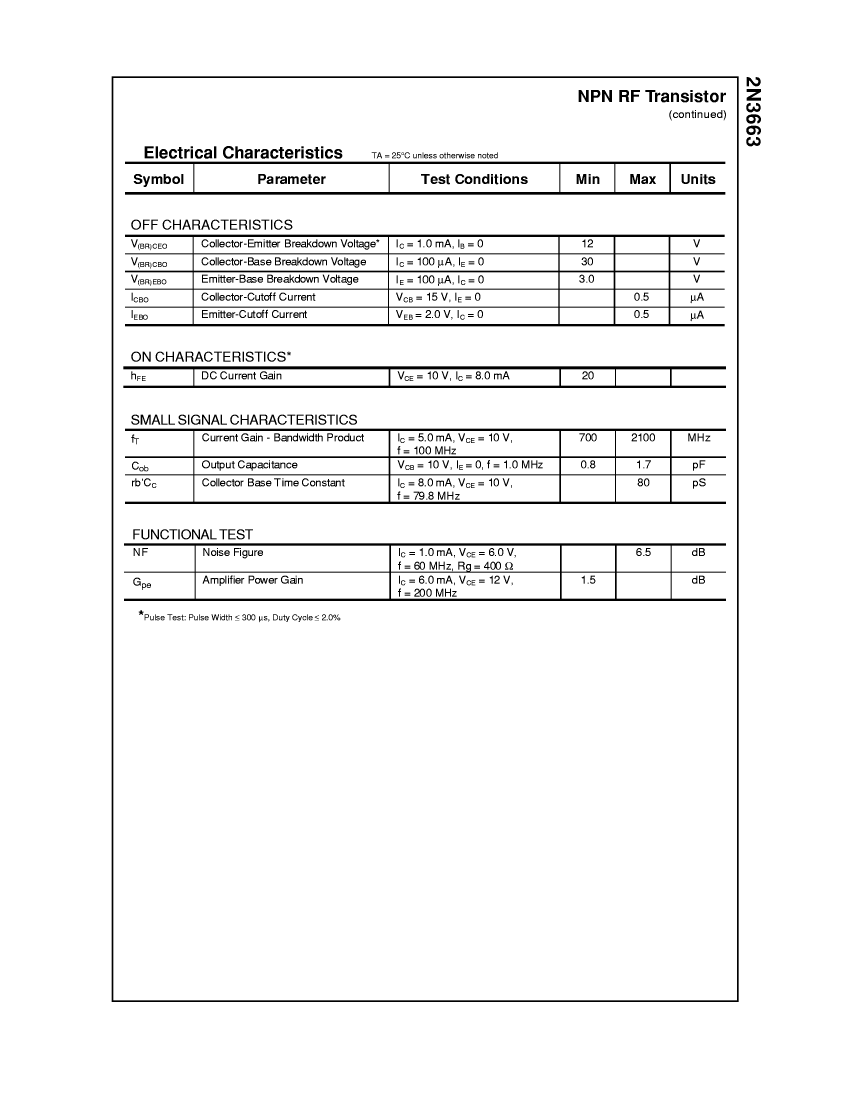

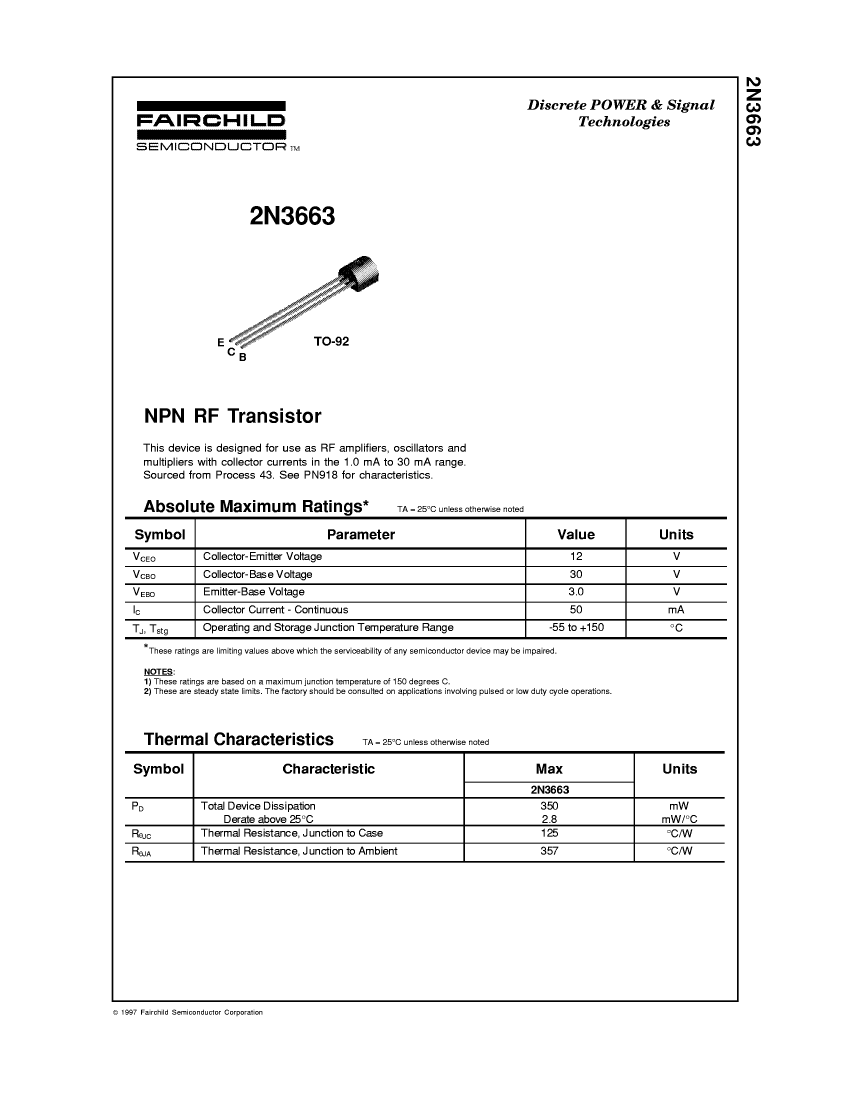

2N3663D75Z: DescriptionRF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92; CategoryDiscrete semiconductor The transistor; File Size43KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

2N3663D75Z Overview

RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92

2N3663D75Z Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-based maximum capacity	1.7 pF
Collector-emitter maximum voltage	12 V
Configuration	SINGLE
highest frequency band	VERY HIGH FREQUENCY BAND
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	700 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

2N3663D75Z Related Products

	2N3663D75Z	2N3663D27Z	2N3663D26Z	2N3663D74Z	2N3663J05Z	2N3663J18Z
Description	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92, 3 PIN	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92, 3 PIN
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Collector-based maximum capacity	1.7 pF	1.7 pF	1.7 pF	1.7 pF	1.7 pF	1.7 pF
Collector-emitter maximum voltage	12 V	12 V	12 V	12 V	12 V	12 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	700 MHz	700 MHz	700 MHz	700 MHz	700 MHz	700 MHz
Base Number Matches	1	1	1	1	1	1
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	-	-
