Datasheet> All Categories > Mechanical and electronic products> switch> 2TP887-21

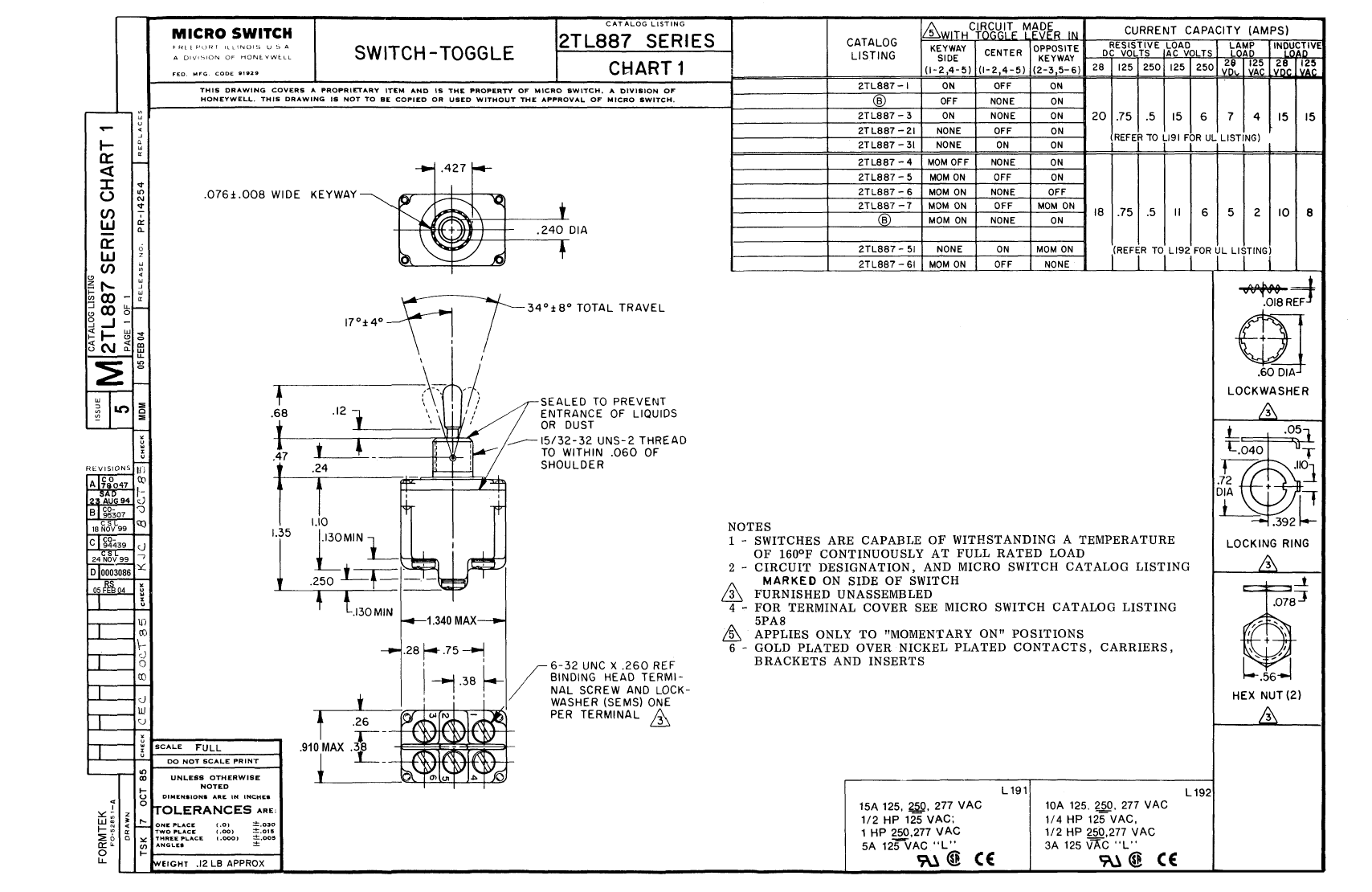

PDF
Preview

2TP887-21

Description
Toggle Switch, DPST, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded
CategoryMechanical and electronic products    switch
File Size85KB，1 Pages
ManufacturerHoneywell
Websitehttp://www.ssec.honeywell.com/
Download Datasheet Parametric Compare View All

2TP887-21 Overview

Toggle Switch, DPST, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded

2TP887-21 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Actuator typeLEVER
body width23.11 mm
body height30.99 mm
Body length or diameter34.04 mm
Contact (AC) maximum rated R load15A@125VAC
Maximum contact current (AC)15 A
Maximum contact current (DC)20 A
Contact (DC) maximum rated R load20A@28VDC
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)28 V
Manufacturer's serial number2TP887
Installation featuresPANEL MOUNT-THREADED
Maximum operating temperature71 °C
sealDUST PROOF; WATER PROOF
surface mountNO
Switch actionLATCHED
switch functionDPST
Switch typeTOGGLE SWITCH
Termination typeSCREW
Base Number Matches1

Preview

Download Datasheet

2TP887-21 Related Products

2TP887-21 2TP887-1 2TP887-5 2TP887-61 2TP887-4 2TP887-51 2TP887-31 2TP887-3 2TP887-6 2TP887-7
Description Toggle Switch, DPST, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPDT, Latched And Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPST, Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPST, Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded Toggle Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code unknow unknow unknow unknow unknow unknow unknow unknow unknow unknow
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Actuator type LEVER LEVER LEVER LEVER LEVER LEVER LEVER LEVER LEVER LEVER
body width 23.11 mm 23.11 mm 23.11 mm 23.11 mm 23.11 mm 23.11 mm 23.11 mm 23.11 mm 23.11 mm 23.11 mm
body height 30.99 mm 30.99 mm 30.99 mm 30.99 mm 30.99 mm 30.99 mm 30.99 mm 30.99 mm 30.99 mm 30.99 mm
Body length or diameter 34.04 mm 34.04 mm 34.04 mm 34.04 mm 34.04 mm 34.04 mm 34.04 mm 34.04 mm 34.04 mm 34.04 mm
Contact (AC) maximum rated R load 15A@125VAC 15A@125VAC 11A@125VAC 11A@125VAC 11A@125VAC 11A@125VAC 15A@125VAC 15A@125VAC 11A@125VAC 11A@125VAC
Maximum contact current (AC) 15 A 15 A 11 A 11 A 11 A 11 A 15 A 15 A 11 A 11 A
Maximum contact current (DC) 20 A 20 A 18 A 18 A 18 A 18 A 20 A 20 A 18 A 18 A
Contact (DC) maximum rated R load 20A@28VDC 20A@28VDC 18A@28VDC 18A@28VDC 18A@28VDC 18A@28VDC 20A@28VDC 20A@28VDC 18A@28VDC 18A@28VDC
Maximum contact voltage (AC) 125 V 125 V 125 V 125 V 125 V 125 V 125 V 125 V 125 V 125 V
Maximum contact voltage (DC) 28 V 28 V 28 V 28 V 28 V 28 V 28 V 28 V 28 V 28 V
Manufacturer's serial number 2TP887 2TP887 2TP887 2TP887 2TP887 2TP887 2TP887 2TP887 2TP887 2TP887
Installation features PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED
Maximum operating temperature 71 °C 71 °C 71 °C 71 °C 71 °C 71 °C 71 °C 71 °C 71 °C 71 °C
seal DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF DUST PROOF; WATER PROOF
surface mount NO NO NO NO NO NO NO NO NO NO
Switch action LATCHED LATCHED LATCHED AND MOMENTARY MOMENTARY MOMENTARY MOMENTARY LATCHED LATCHED MOMENTARY MOMENTARY
switch function DPST DPDT DPDT DPST DPDT DPDT DPDT DPDT DPST DPDT
Switch type TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH TOGGLE SWITCH
Termination type SCREW SCREW SCREW SCREW SCREW SCREW SCREW SCREW SCREW SCREW
Base Number Matches 1 1 1 1 1 1 1 1 1 1
