PA28F004SC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> PA28F004SC

PA28F004SC: DescriptionFlash, 512KX8, 90ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size451KB，12 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

PA28F004SC Overview

Flash, 512KX8, 90ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44

PA28F004SC Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	0.525 X 1.110 INCH, PLASTIC, SOP-44
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	90 ns
Other features	USER-SELECTABLE 5V OR 12V VPP
JESD-30 code	R-PDSO-G44
length	28.2 mm
memory density	4194304 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	3 V
Certification status	Not Qualified
Maximum seat height	2.95 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	13.3 mm
Base Number Matches	1

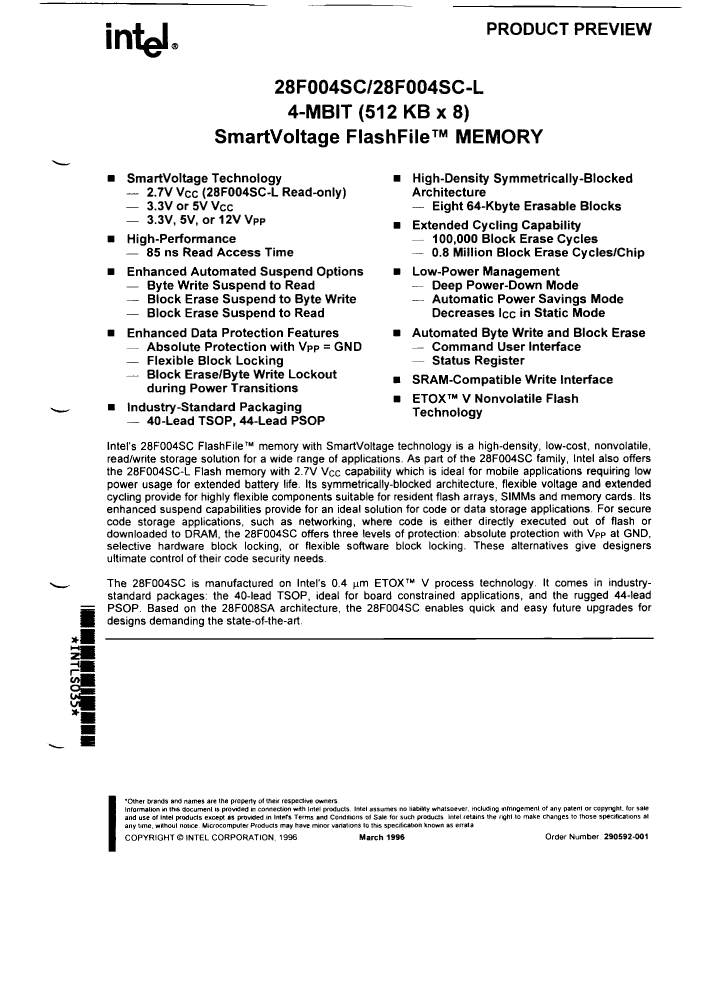

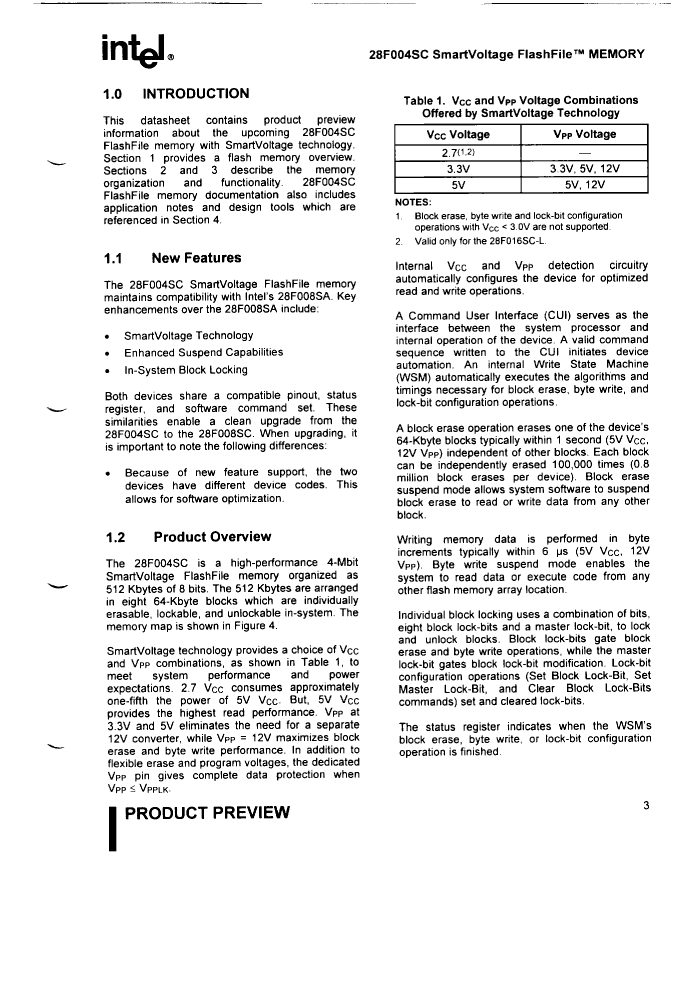

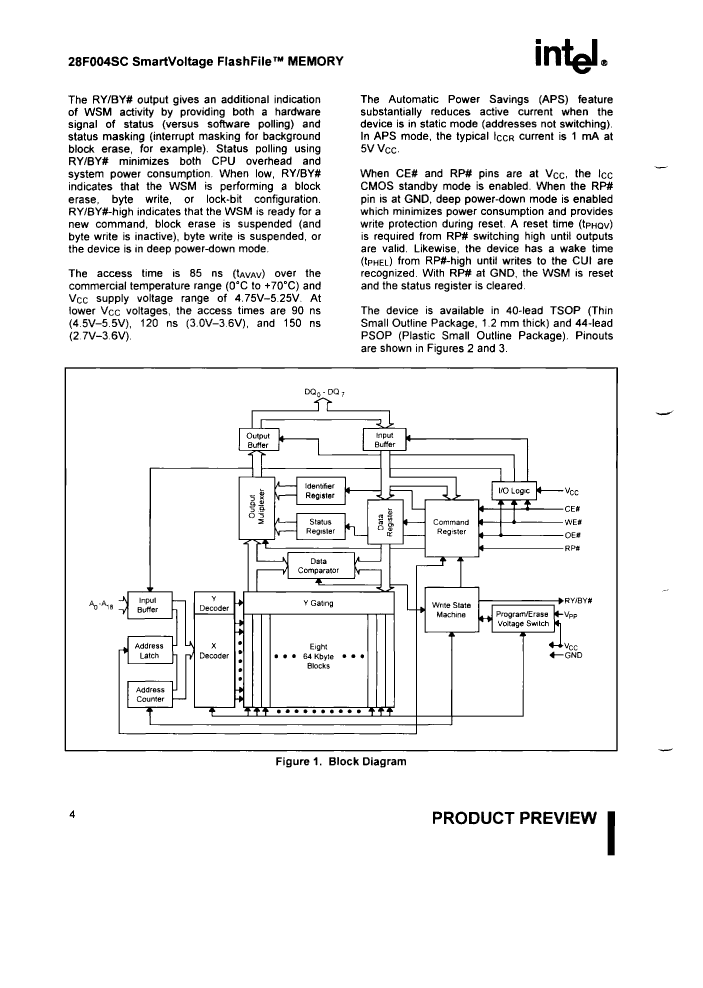

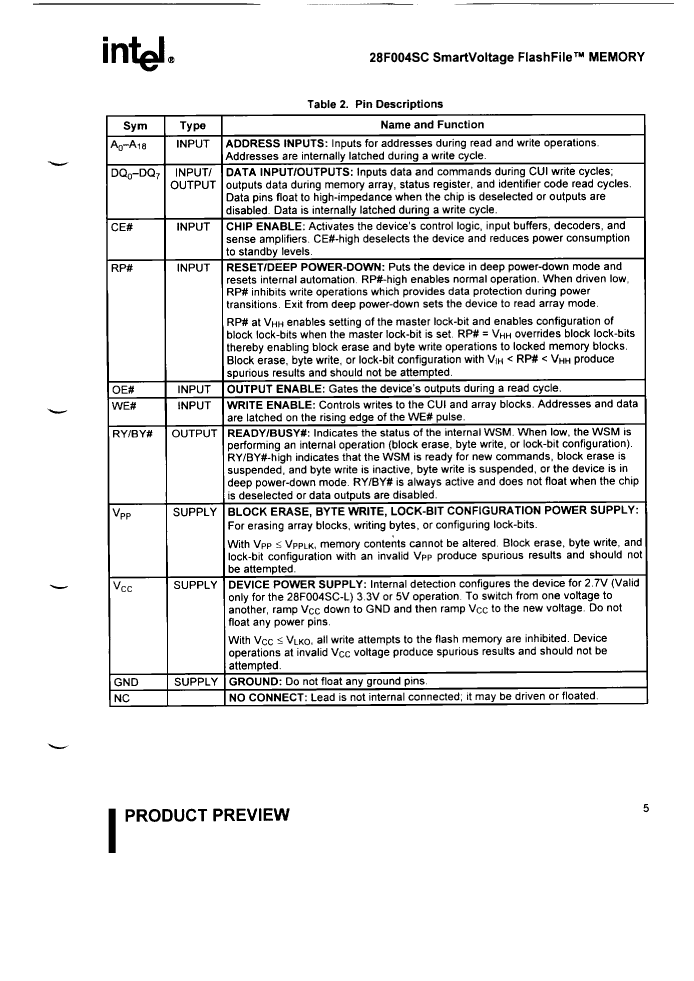

Preview

Download Datasheet

View All

PA28F004SC Related Products

	PA28F004SC	E28F004SC-L	E28F004SC	PA28F004SC-L
Description	Flash, 512KX8, 90ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44	Flash, 512KX8, 90ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 512KX8, 90ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 512KX8, 90ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44
Parts packaging code	SOIC	TSOP	TSOP	SOIC
package instruction	0.525 X 1.110 INCH, PLASTIC, SOP-44	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	0.525 X 1.110 INCH, PLASTIC, SOP-44
Contacts	44	40	40	44
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	90 ns	90 ns	90 ns	90 ns
Other features	USER-SELECTABLE 5V OR 12V VPP	USER-SELECTABLE 5V OR 12V VPP	USER-SELECTABLE 5V OR 12V VPP	USER-SELECTABLE 5V OR 12V VPP
JESD-30 code	R-PDSO-G44	R-PDSO-G40	R-PDSO-G40	R-PDSO-G44
length	28.2 mm	18.4 mm	18.4 mm	28.2 mm
memory density	4194304 bi	4194304 bi	4194304 bi	4194304 bi
Memory IC Type	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	44	40	40	44
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1	TSOP1	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.95 mm	1.2 mm	1.2 mm	2.95 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	2.7 V	3 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.5 mm	0.5 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	13.3 mm	10 mm	10 mm	13.3 mm
Base Number Matches	1	1	1	1
