P1402SAL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> P1402SAL

Preview

P1402SAL: DescriptionSilicon Surge Protector, 20A, DO-214AA, MODIFIED DO-214AA, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size33KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

P1402SAL Overview

Silicon Surge Protector, 20A, DO-214AA, MODIFIED DO-214AA, 2 PIN

P1402SAL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Littelfuse
Parts packaging code	DO-214AA
package instruction	SMALL OUTLINE, R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Configuration	SINGLE
Maximum off-state DC voltage	140 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
On-state non-repetitive peak current	20 A
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Trigger device type	SILICON SURGE PROTECTOR

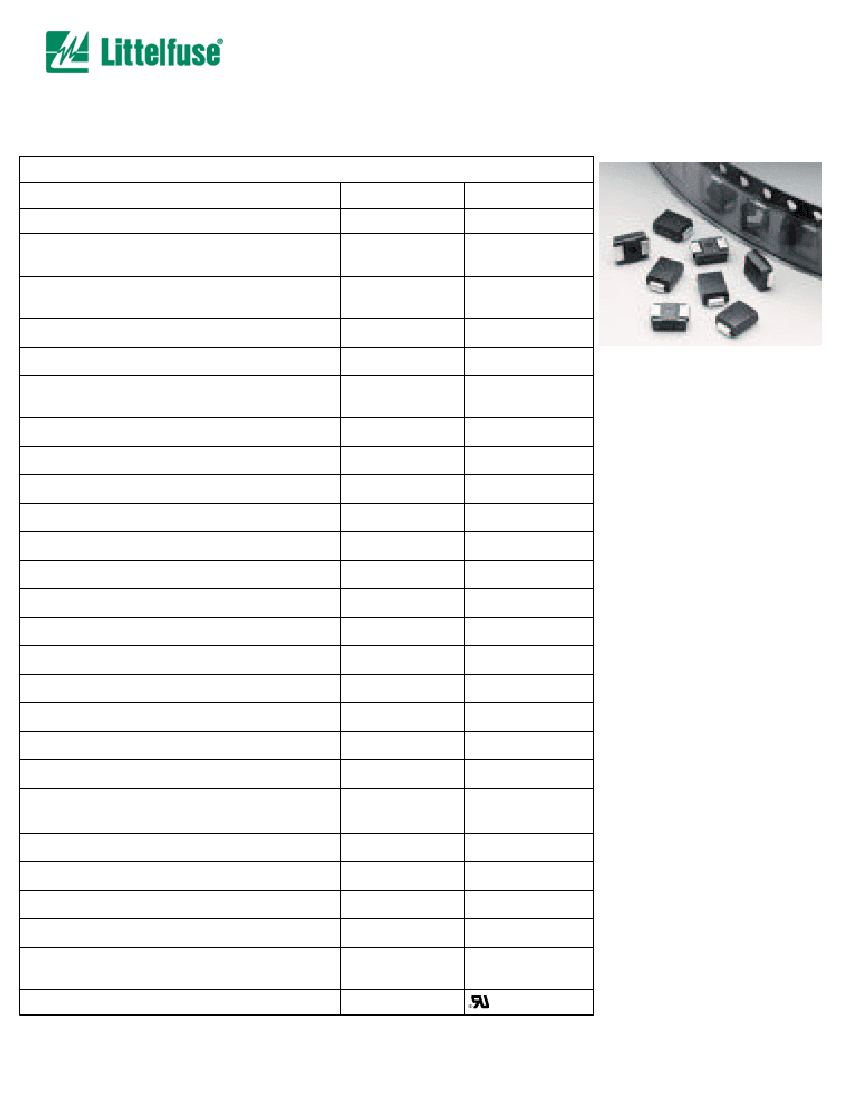

P1402SAL Preview

Part:

P1402SA

Series:

DO-214AA Broadband Optimized™ SIDACtor® device

Technology:SIDACtor® Devices

PARAMETERS

Package Type

Mount Method

Package Size/Form Factor

Pins for Peak Off-state Voltage

V<sub>DRM</sub>-1

Peak Off-state Voltage

Switching Voltage

Pins for Peak Off-state Voltage

V<sub>DRM</sub>-2

Peak Off-state Voltage

Switching Voltage

On-state Voltage

On-state forward Voltage

Leakage Current

Switching Current

Holding Current

Minimum Off-state Capacitance

Maximum Off-state Capacitance

Peak Pulse Current - 2x10Âµs

Peak Pulse Current - 8x20Âµs

Peak Pulse Current - 10x160Âµs

Peak Pulse Current - 10x560Âµs

Peak Pulse Current - 10x1000Âµs

Peak Pulse Current - 5x310Âµs

Peak Pulse Current - 5x320Âµs

Peak Pulse Current - 10x700Âµs

Peak One-cycle Surge Current

Rate of Rise of Current

Certifications

Pkg Type

Mount

size

Pins (V

DRM

1)

V

DRM

1 (V)

V

S

@ V

DRM

1 (V)

Pins (V

DRM

2)

V

DRM

2 (V)

V

S

@ V

DRM

2 (V)

V

T

MAX (V)

V

F

(V)

I

DRM

I

S

MAX (mA)

I

H

MIN (mA)

C

O

(pF) Min

C

O

(pF) Max

I

PP

2x10Âµs (A)

I

PP

8x20Âµs (A)

5

800

120

15.0

35

150

4.0000

Surface Mount

Modified

DO-214AA

"1-2, 3-2"

140

180

3-Jan

PROTECTS AGAINST:

Lightning Transients

Telecom - Tip and Ring

I

PP

10x160Âµs (A) 90

I

PP

10x560Âµs (A) 50

I

PP

10x1000Âµs

(A)

I

PP

5x310Âµs (A)

I

PP

5x320Âµs (A)

45

0

I

PP

10x700Âµs (A) 0

I

TSM

60Hz (A)

di/dt MAX

(A/Âµs)

Cert

20

500

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

P1402SAL Related Products

	P1402SAL	P1402SA
Description	Silicon Surge Protector, 20A, DO-214AA, MODIFIED DO-214AA, 2 PIN	Silicon Surge Protector, 20A, DO-214AA, MODIFIED DO-214AA, 2 PIN
Is it Rohs certified?	conform to	incompatible
Maker	Littelfuse	Littelfuse
Parts packaging code	DO-214AA	DO-214AA
package instruction	SMALL OUTLINE, R-PDSO-C2	SMALL OUTLINE, R-PDSO-C2
Contacts	2	2
Reach Compliance Code	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED
Configuration	SINGLE	SINGLE
Maximum off-state DC voltage	140 V	140 V
JEDEC-95 code	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3
On-state non-repetitive peak current	20 A	20 A
Number of components	1	1
Number of terminals	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	C BEND	C BEND
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	NOT SPECIFIED
Trigger device type	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR
