BAS316 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > BAS316

Preview

BAS316: Description0.2A,81V,Surface Mount Small Signal Switching Diodes, Single, 100V, 0.25A, 1.25V, 0.15A, 4A, 1uA; File Size151KB，4 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

BAS316 Overview

0.2A,81V,Surface Mount Small Signal Switching Diodes, Single, 100V, 0.25A, 1.25V, 0.15A, 4A, 1uA

BAS316 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SOD-323
package instruction	R-PDSO-G2
Reach Compliance Code	unknown
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.4 W
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
VRRM (V) max	100
IF (A) max	0.25
VF (V) max	1.25
Condition1_IF (A)	0.15
IFSM (A) max	4
IR (uA) max	1
Condition2_VR (V)	75
trr (ns) max	4
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-65
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOD-323

BAS316 Preview

Production specification

Silicon Epitaxial Planar Diode

FEATURES



Very small plastic SMD package

High switching speed:max.4ns

Continuous reverse voltage:max.100v

Repetitive peak reverse voltage:max.100v

Repetitive peak forward current:max.500mA

BAS316

Pb

Lead-free

APPLICATIONS



Surface mount fast switching diode

SOD-323

ORDERING INFORMATION

Type No.

BAS316

Marking

A6

Package Code

SOD-323

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Repetitive peak reverse voltage

Continuous Reverse Voltage

Continuous forward Current

Repetitive peak forward current

Non-Repetitive peak forward current

t=1μs

t=1ms

t=1s

Symbol

V

RRM

V

R

I

F

I

FRM

I

FSM

P

d

T

j

,T

STG

R

thj-s

R

thj-A

R

thj-c

Value

100

250

500

4

1

0.5

400

-65 to +150

150

500

210

Unit

V

mA

A

mW

℃

℃/W

Power Dissipation, Ts≤90℃

Junction and Storage Temperature Rage

Thermal resistance from junction to solder point

Thermal resistance from junction to ambient

Thermal resistance from junction to

case

B013

Rev.B

www.gmesemi.com

1

Production specification

Silicon Epitaxial Planar Diode

BAS316

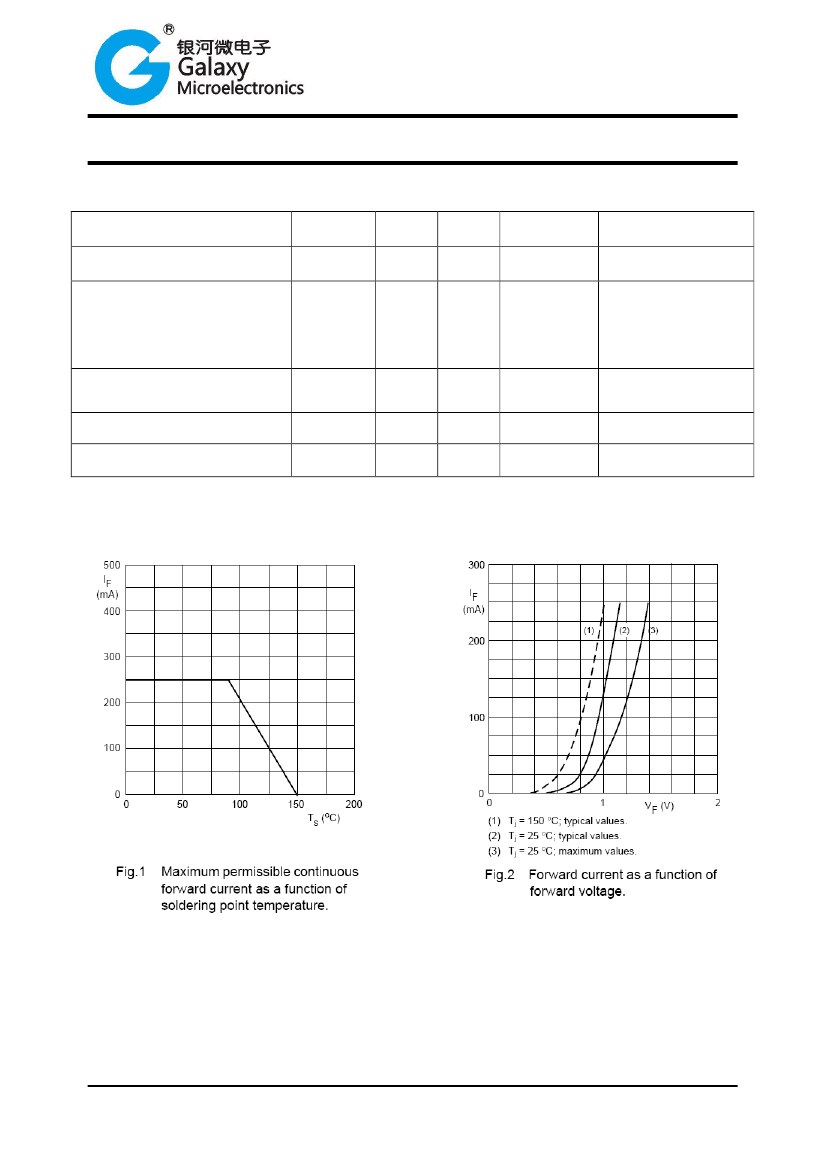

ELECTRICAL CHARACTERISTICS

@ Ta=25℃ unless otherwise specified

Characteristic

Reverse Breakdown Voltage

Forward Voltage

Symbol

V

(BR)R

V

F

Min

100

Max

-

0.715

0.855

1.0

1.25

-

1.0

0.03

1.5

4.0

Unit

V

Test Condition

I

R

=100μA

I

F

=1.0mA

I

F

=10mA

I

F

=50mA

I

F

=150mA

V

R

=75V

V

R

=25V

V

R

=0,f=1.0MHz

I

F

=I

R

=10mA,R

L

=100Ω

Reverse Current

Capacitance between terminals

Reverse Recovery Time

I

R

C

T

t

rr

μA

pF

ns

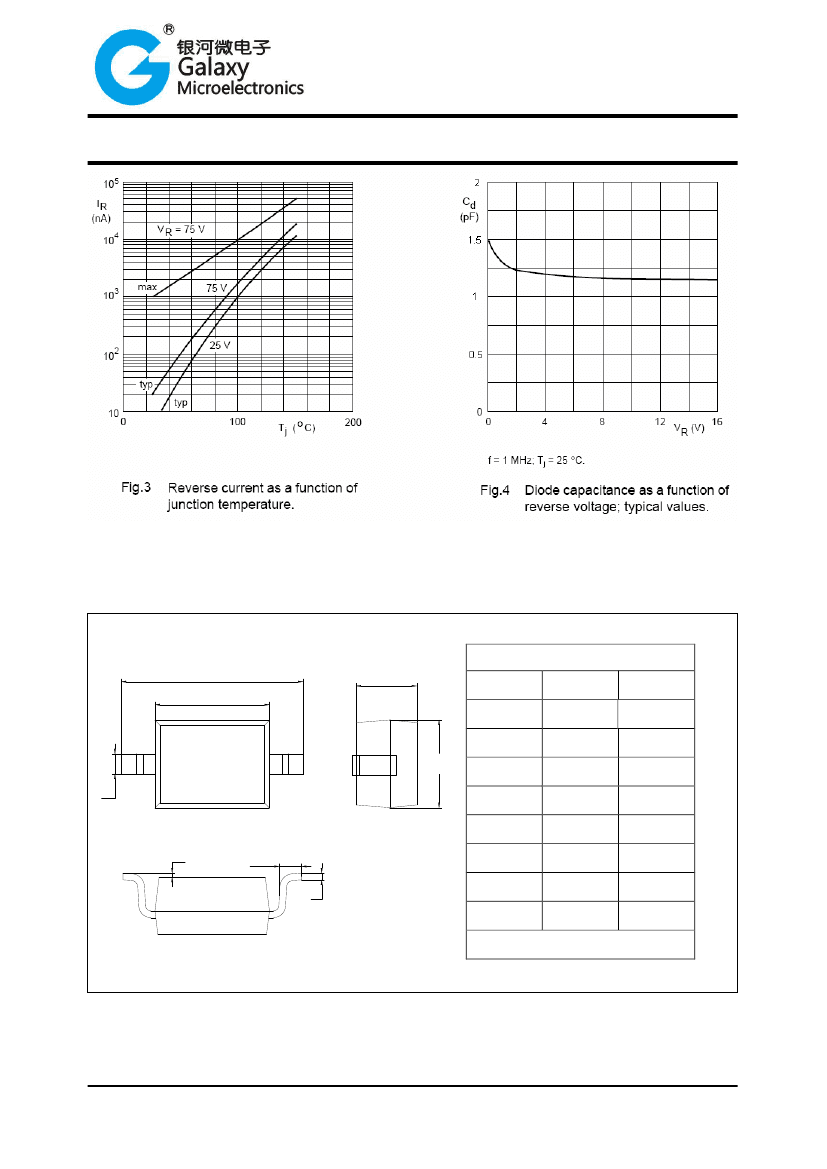

TYPICAL CHARACTERISTICS

@ Ta=25℃ unless otherwise specified

B013

Rev.B

www.gmesemi.com

2

Production specification

Silicon Epitaxial Planar Diode

BAS316

PACKAGE OUTLINE

Plastic surface mounted package

SOD-323

K

A

SOD-323

C

Dim

A

B

Min

1.60

1.20

0.80

0.25

0.22

0.02

0.05

2.55

Max

1.80

1.40

0.90

0.35

0.42

0.1

0.15

2.75

C

D

E

D

H

E

J

H

J

K

All Dimensions in mm

B013

Rev.B

www.gmesemi.com

3

Production specification

Silicon Epitaxial Planar Diode

SOLDERING FOOTPRINT

0.63

BAS316

0.83

1.60

2.85

Unit

：mm

PACKAGE INFORMATION

Device

BAS316

Package

SOD-323

Shipping

3000/Tape&Reel

B013

Rev.B

www.gmesemi.com

4

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
