DF15005S - DF1510S
SPICE MODELS: DF15005S DF1501S DF1502S DF1504S DF1506S DF1508S DF1510S
1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE
RECTIFIER
Features
·
·
·
·
·
·
·
Glass Passivated Die Construction
Diffused Junction
Low Forward Voltage Drop, High Current
Capability
Surge Overload Rating to 50A Peak
Designed for Surface Mount Application
Plastic Material - UL Flammability
Classification Rating 94V-0
UL Listed Under Recognized Component
Index, File Number E94661
DF-S
L
G
Dim
A
B
C
D
E
G
H
J
K
L
Min
7.40
6.20
0.22
0.076
¾
1.02
8.13
2.40
5.00
1.00
Max
7.90
6.50
0.30
0.33
10.40
1.53
8.51
3.40
5.20
1.20
A B
D E
Mechanical Data
·
·
·
·
·
·
·
Case: Molded Plastic
Terminals: Solder Plated Leads, Solderable
per MIL-STD-202, Method 208
Polarity: As Marked on Case
Also Available in Lead Free Plating (Matte Tin
Finish). Please see Ordering Information,
Note 4, on Page 3
Weight: 0.38 grams (approx.)
Mounting Position: Any
Marking: Type Number
J
H
C
K
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Rectified Current
@ T
A
= 40°C
Non-Repetitive Peak Forward Surge Current, 8.3 ms
single half-sine-wave superimposed on rated load
(JEDEC method)
Forward Voltage (per element)
Peak Reverse Current at rated
DC blocking voltage (per element)
I
2
t Rating for Fusing (t<8.3ms)
Typical Total Capacitance per element (Note 1)
Typical Thermal Resistance, Junction to Ambient
(Note 2)
Operating and Storage Temperature Range
Notes:
@ I
F
= 1.5A
@ T
A
= 25°C
@ T
A
= 125°C
@ T
A
= 25°C unless otherwise specified
DF
DF
Symbol 15005S 1501S
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
I
2
t
C
T
R
qJA
T
j
, T
STG
50
35
100
70
DF
1502S
200
140
DF
1504S
400
280
1.5
50
1.1
10
500
10.4
25
40
DF
1506S
600
420
DF
1508S
800
580
DF
1510S
1000
700
Unit
V
V
A
A
V
µA
A
2
s
pF
°C/W
°C
-65 to +150
1. Measured at 1.0 MHz and Applied Reverse Voltage of 4.0V DC.
2. Thermal resistance, junction to ambient, measured on PC board with 5.0mm
2
(0.03mm thick) land areas.
DS17002 Rev. 5 - 2
1 of 3
www.diodes.com
DF15005S-DF1510S
ã
Diodes Incorporated
60 Hz Resistive or
Inductive load
1.5
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
2.0
I
O
, AVERAGE FORWARD CURRENT (A)
10
1.0
1.0
0.1
0.5
0
40
60
80
100
120
140
0.01
0.4
0.6
0.8
1.0
1.2
1.4
T
A
, AMBIENT TEMPERATURE (°C)

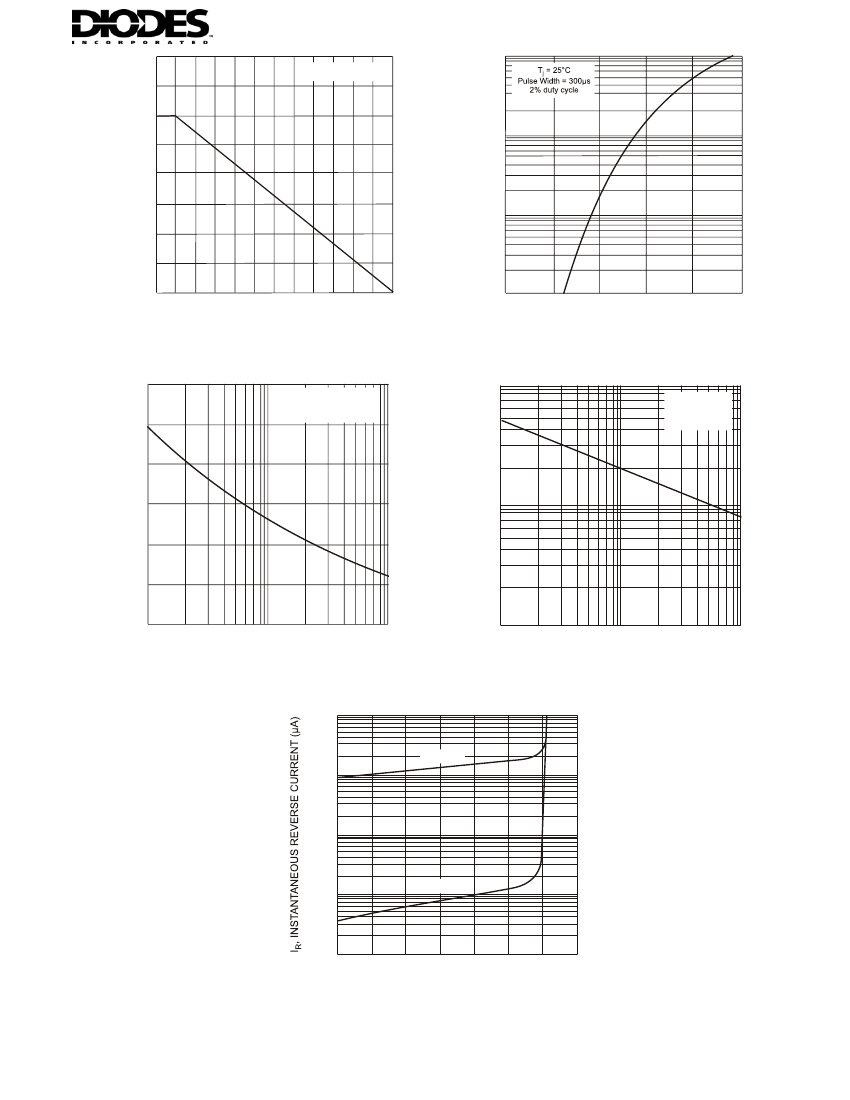

Fig. 1 Output Current Derating Curve
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typ Forward Characteristics (per element)
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
Single half-sine-Wave
(JEDEC Method)
100
T
j
= 25°C
f = 1.0 Mhz
V
sig
= 50 mV p-p
50
40
30
C
T
, CAPACITANCE (pF)
1
10
100
10
20
10
0
1
1
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typ Total Capacitance (per element)
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Forward Surge Current
100
T
j
= 125°C
10
1.0
0.1
T
j
= 25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typ Reverse Characteristics (per element)
DS17002 Rev. 5 - 2
2 of 3
www.diodes.com
