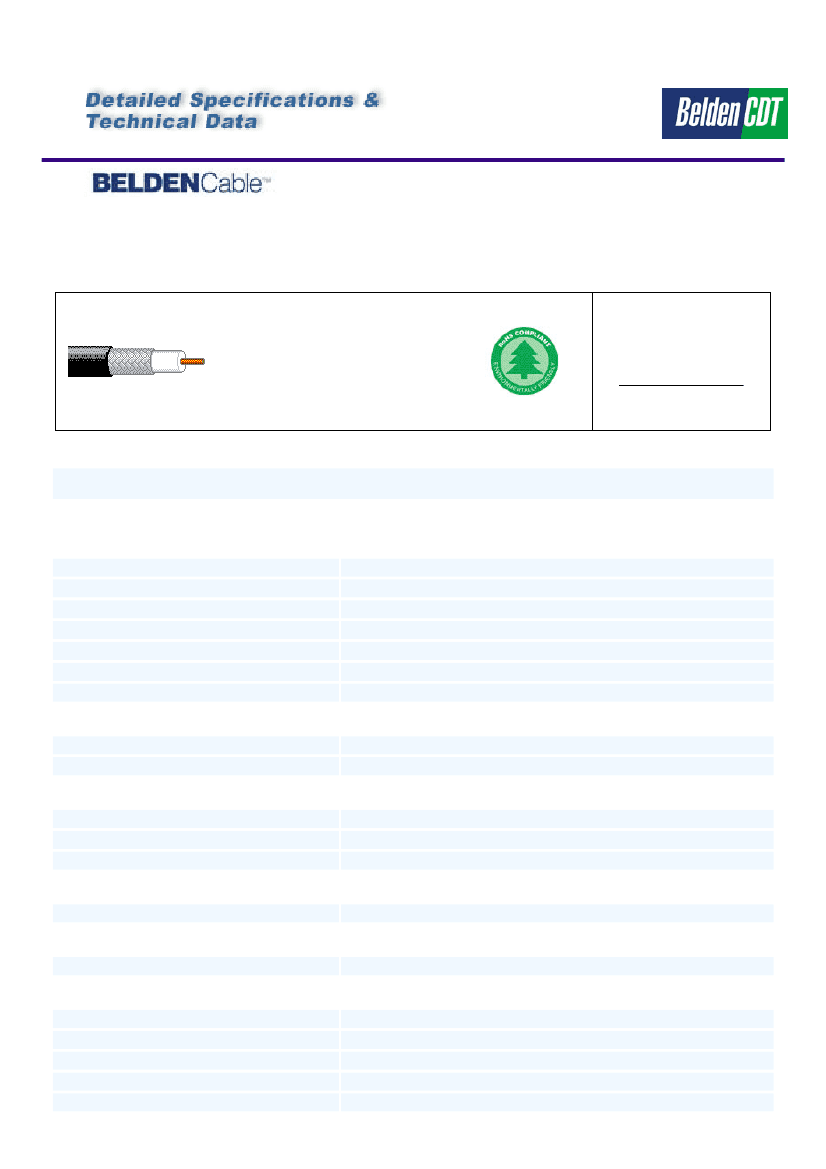

8240 Coax - RG-58A/U Type
For more information please
call
1-800-Belden1
See Put-ups and Colors
Description:
RG-58A/U type, 20 AWG solid .033" bare copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC
jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Coax
Total Number of Conductors
RG Type
AWG
Stranding
Conductor Diameter
Conductor Material
INSULATION:
Insulation Material
Insulation Diameter
OUTER SHIELD:
Outer Shield Type
Outer Shield Material
Outer Shield %Coverage
OUTER JACKET:
Outer Jacket Material
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter
MECHANICAL CHARACTERISTICS:
Operating Temperature Range
UL Temperature Rating
Bulk Cable Weight
Max. Recommended Pulling Tension
Min. Bend Radius (Install)
-40°C To +75°C
80°C (UL AWM Style 1354)
25 lbs/1000 ft.
47 lbs.
2 in.
Page 1 of 3
1
1
58/U
20
Solid
.033 in.
BC - Bare Copper
PE - Polyethylene
.116 in.
Braid
TC - Tinned Copper
95 %
PVC - Polyvinyl Chloride
.193 in.
8240 Coax - RG-58A/U Type
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
APPLICABLE STANDARDS:
NEC/(UL) Specification
CEC/C(UL) Specification
AWM Specification
EU CE Mark (Y/N)
EU RoHS Compliant (Y/N)
EU RoHS Compliance Date (mm/dd/yyyy):
FLAME TEST:
UL Flame Test
SUITABILITY:
Suitability - Indoor
Suitability - Outdoor
Suitability - Aerial
PLENUM/NON-PLENUM:
Plenum (Y/N)
Plenum Number
ELECTRICAL CHARACTERISTICS:
Nom. Characteristic Impedance
Nom. Inductance
Nom. Capacitance Conductor to Shield
Nominal Velocity of Propagation
Nominal Delay
Nom. Conductor DC Resistance @ 20 Deg. C
Nominal Outer Shield DC Resistance @ 20°C
Nom. Attenuation :
Description
Frequency (MHz)
1
10
50
100
200
400
700
900
1000
Max. Operating Voltage - UL
300 V RMS (CMX), 30 V RMS (UL AWM Style 1354)
Page 2 of 3
CMX
CMX
UL Style 1354 (30 V 80°C)
No
Yes
01/01/2004
UL1685 UL Loading, VW-1
Yes
Yes
Yes - when supported by a messenger wire
N
88240, 82240
51.5 Ohms
0.080 µH/ft
28.5 pF/ft
66 %
1.54 ns/ft
10.0 Ohms/1000 ft
4.1 Ohms/1000 ft
Start Frequency (MHz)
Stop Frequency (MHz)
Nom. Attenuation
(dB/100 ft.)
0.3
1.1
2.5
3.8
5.6
8.4
11.7
13.7
14.5
8240 Coax - RG-58A/U Type
Max. Operating Voltage - Non-UL
1900 V RMS
PUT-UPS AND COLORS:
Item
Description
Put-Up (ft.)
8240 010100
#20 PE BRD FRPVC 100
8240 0101000
8240 010500
8240 010U1000
8240 010U500
#20 PE BRD FRPVC 1000
#20 PE BRD FRPVC 500
#20 PE BRD FRPVC U1000
#20 PE BRD FRPVC U500
Ship Weight (lbs.)
3.6
26
13
27
14
Jacket Color
BLACK
BLACK
BLACK
BLACK
BLACK
Notes
C
C
C = CRATE REEL PUT-UP.
Revision Number: 1
Revision Date: 07-11-2005
© 2005 Belden Wire & Cable Company
All Rights Reserved.
Although Belden Electronics Division ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication,
information and specifications described herein are subject to error or omission and to change without notice, and the listing of such
information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described
herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden CDT Electronics Division believes this product to be in compliance with the following environmental regulations: California
Proposition 65 Consent Judgment For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS
(Directive 2002/95/EC, 27-Jan-2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our
Distributor's inventory. EU ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR
(Directive 2003/11/EC, 6-Feb-2003). The information provided in this Product Disclosure, and the identification of materials listed as
reportable or restricted within the Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its
publication. The information provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any
other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality
specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of
legislation and regulations based on their individual usage of the product.
Page 3 of 3
