bq2057, bq2057C
bq2057T, bq2057W
SLUS025F − MAY 2001 − REVISED JULY 2002
ADVANCED LINEAR CHARGE MANAGEMENT IC
FOR SINGLE AND TWO CELL LITHIUM ION AND LITHIUM POLYMER
FEATURES
D
Ideal for Single (4.1 V or 4.2 V) and Dual-Cell
D
D
D
D
D
D
D
D
D
D
D
D
D
(8.2 V or 8.4 V) Li-Ion or Li-Pol Packs
Requires Small Number of External
Components
0.3 V Dropout Voltage for Minimizing Heat
Dissipation
Better Than
±1%
Voltage Regulation Accuracy
With Preset Voltages
AutoCompt Dynamic Compensation of
Battery Pack’s Internal Impedance to Reduce
Charge Time
Optional Cell-Temperature Monitoring Before
and During Charge
Integrated Voltage and Current Regulation
With Programmable Charge-Current and High-
or Low-Side Current Sensing
Integrated Cell Conditioning for Reviving
Deeply Discharged Cells and Minimizing Heat
Dissipation During Initial Stage Of Charge
Charge Status Output for Single or Dual Led
or Host Processor Interface
Automatic Battery-Recharge Feature
Charge Termination by Minimum Current
Automatic Low-Power Sleep Mode When V
CC
Is Removed
EVMs Available for Quick Evaluation
Packaging: 8-Pin SOIC, 8-Pin TSSOP, 8-Pin
MSOP
bq2057xSN or bq2057xTS
SOIC (SN) or TSSOP (TS) PACKAGE
(TOP VIEW)
DESCRIPTION
The BENCHMARQ bq2057 series advanced
Lithium-Ion (Li-Ion) and Lithium-Polymer (Li-Pol) linear
charge-management ICs are designed for cost-
sensitive and compact portable electronics. They
combine high-accuracy current and voltage regulation,
battery conditioning, temperature monitoring, charge
termination, charge-status indication, and AutoComp
charge-rate compensation in a single 8-pin IC. MSOP,
TSSOP, and SOIC package options are offered to fit a
wide range of end applications.
The bq2057 continuously measures battery
temperature using an external thermistor. For safety,
the bq2057 inhibits charge until the battery temperature
is within user-defined thresholds. The bq2057 then
charges the battery in three phases: conditioning,
constant current, and constant voltage. If the battery
voltage is below the low-voltage threshold, V
(min)
, the
bq2057 precharges using a low current to condition the
battery. The conditioning charge rate is approximately
10% of the regulation current. The conditioning current
also minimizes heat dissipation in the external pass-
element during the initial stage of the charge. After
conditioning, the bq2057 applies a constant current to
the battery. An external sense-resistor sets the current.
The sense-resistor can be on either the high or low side
of the battery without additional components. The
constant-current phase continues until the battery
reaches the charge-regulation voltage.
bq2057xDGK
MSOP (DGK) PACKAGE
(TOP VIEW)
SNS
BAT
VCC
TS
1
2
3
4
8
7
6
5
COMP
CC
VSS
STAT
VCC
TS
STAT
VSS
1
2
3
4
8
7
6
5
BAT
SNS
COMP
CC
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
AutoComp is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
2002, Texas Instruments Incorporated
www.ti.com
1

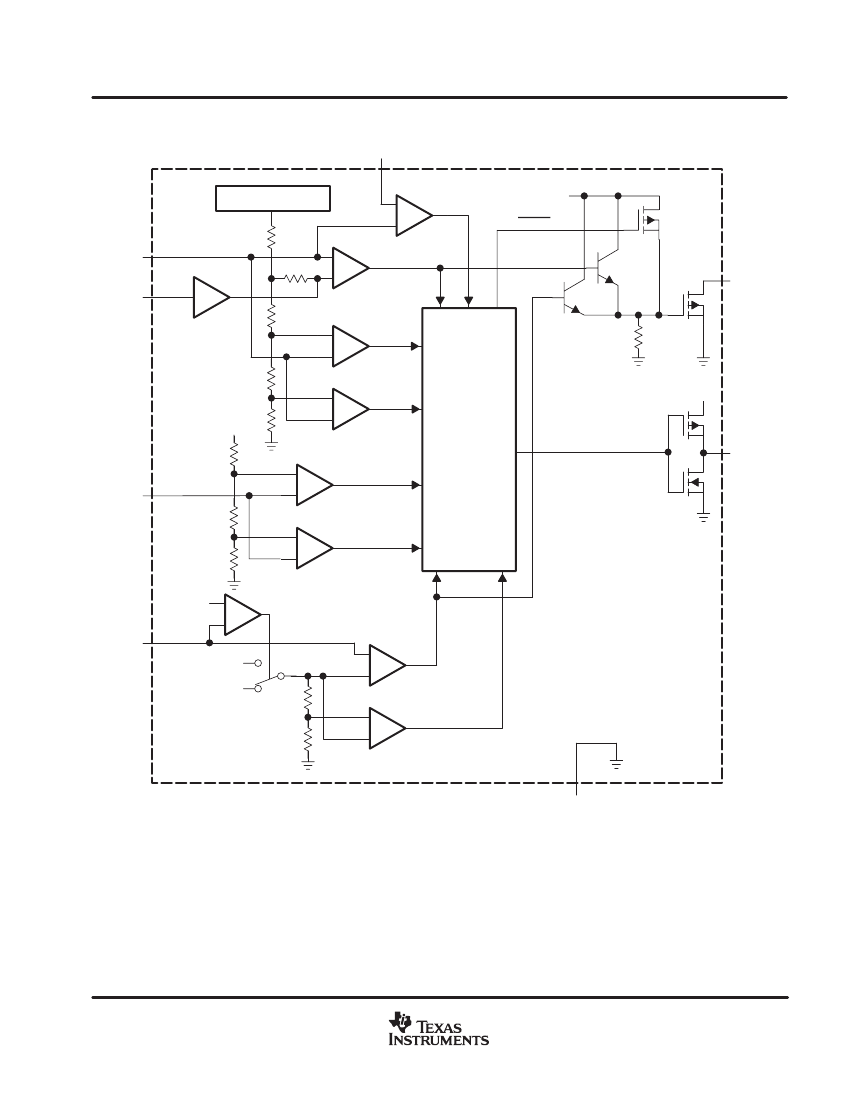

bq2057, bq2057C
bq2057T, bq2057W
SLUS025F − MAY 2001 − REVISED JULY 2002
Terminal Functions
TERMINAL
NO.
NAME
BAT
CC
COMP
SNS
STAT
TS
VCC
VSS
SOIC (SN) and
TSSOP (TS)
2
7
8
1
5
4
3
6
MSOP
(DGK)
8
5
6
7
3
2
1
4
I
O
I
I
O
I
I
Voltage sense input
Charge control output
Charge-rate compensation input (AutoComp)
Current sense input
Charge status output
Temperature sense input
Supply voltage
Ground
I/O
DESCRIPTION
detailed description
current-sense input
Battery current is sensed via the voltage developed on this pin by an external sense resistor. The external
resistor can be placed on either the high or low side of the battery. (See schematics for details.)
battery-voltage input
Voltage sense-input tied directly to the positive side of the battery.
temperature sense input
Input for an external battery-temperature monitoring circuit. Connecting this input to VCC/2 disables this feature.
charge-status output
3-state indication of charge in progress, charge complete, and temperature fault or sleep mode.
charge-control output
Source-follower output that drives an external pass-transistor (PNP or P-channel MOSFET) for current and
voltage regulation.
charge-rate compensation input
Sets the charge-rate compensation level. The voltage-regulation output may be programmed to vary as a
function of the charge current delivered to the battery.
supply voltage input
Power supply input and current reference for high-side sensing configuration.
4
www.ti.com
