lVDS 7x5mm 3.3V Oscillator
F4700 SERiES
FEATURES
•
3.3V Operation
RoHS Compliant / Pb Free
XpressO
®
Equivalent
FXO-LC73
Rev. 9/24/2012
http://www.foxonline.com/need_a_sample.htm
•
•
•
•
LVDS Output
Differential Outputs
Standby Function
Tape and Reel
(2,000 pcs. STD)
• PART nUMbER SElECTiOn
Part Number
703-Frequency-xxxxx
704-Frequency-xxxxx
705-Frequency-xxxxx
706-Frequency-xxxxx
707-Frequency-xxxxx
708-Frequency-xxxxx
709-Frequency-xxxxx
Model
Number
F4700
F4700R
F4705
F4705R
F4706
F4706R
F4708
Operating
Frequency
Stability
1
Temperature (ºC)
-10 ~ +70
±100PPM
-40 ~ +85
±100PPM
-10 ~ +70
±50PPM
-40 ~ +85
±50PPM
-10 ~ +70
±25PPM
-40 ~ +85
±25PPM*
-10 ~ +70
±20PPM*
Frequency
Range (MHz)
75.000 ~ 270.000
75.000 ~ 270.000
75.000 ~ 270.000
75.000 ~ 270.000
75.000 ~ 270.000
75.000 ~ 170.000
75.000 ~ 180.000
• ElECTRiCAl CHARACTERiSTiCS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Differential Output Voltage
(V
od
) (Out 1 - Out 2)
Offset Voltage (V
os
)
Differential Output Swing (V
o
p-p)
Output Symmetry (Output Crossing Point)
Rise Time (T
r
) (20% ~ 80% Vp-p)
Fall Time (T
f
) (80% ~ 20% Vp-p)
Output Load (Out 1 - Out 2)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
1
MAX
(unless otherwise noted)
75.000 ~ 270.000 MHz
-55ºC ~ +125ºC
3.3V ± 5%
66mA
0.247V ~ 0.454V
(0.33V Typical)
1.125V ~ 1.375V
(1.25V Typical)
0.35Vp-p Min
45% ~ 55%
0.7nS
0.7nS
100 Ohms Typical
30µA
10mS
200nS
10mS
Inclusive of operating temperature range, input voltage change, load change, aging,
shock, and vibration. (*F4706R, F4708R: Excludes Shock/Vibration)
2
An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between
V
dd
(Pin 6) and GND (Pin 3) to
minimize power supply line noise.

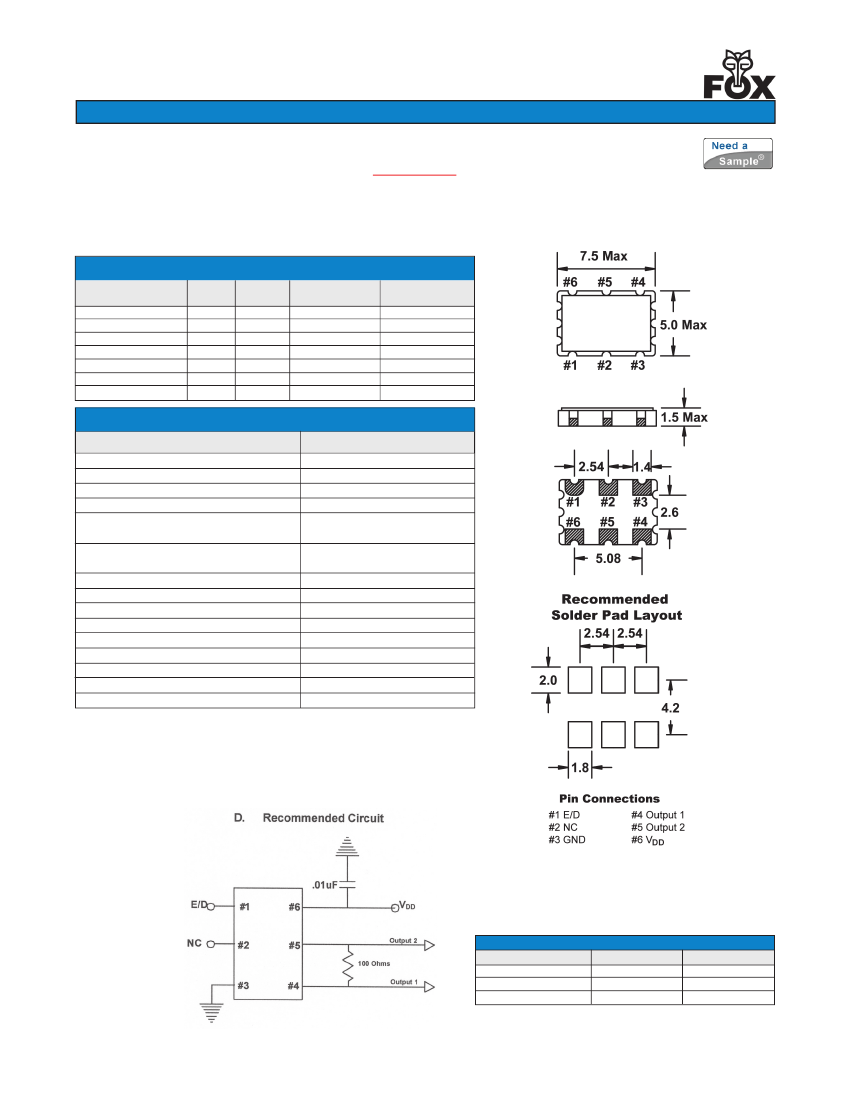

Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.
All specifications subject to change without notice.
All dimensions are in millimeters.
• EnAblE / DiSAblE FUnCTiOn
OUTPUT (Pin 4)
(Pin 1)
ACTIVE
OPEN
2
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
OUTPUT (Pin 5)
ACTIVE
ACTIVE
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
www.foxonline.com
EMEA
Tel: +44 .1283.568153 |
Canada
+1.888.438.2369 |
Asia
Hong Kong Tel: +852.2854.4285 |
Japan
Tel: +81.3.3374.2079
© 2012 FOX ELECTRONICS | ISO9001:2008 Certified
