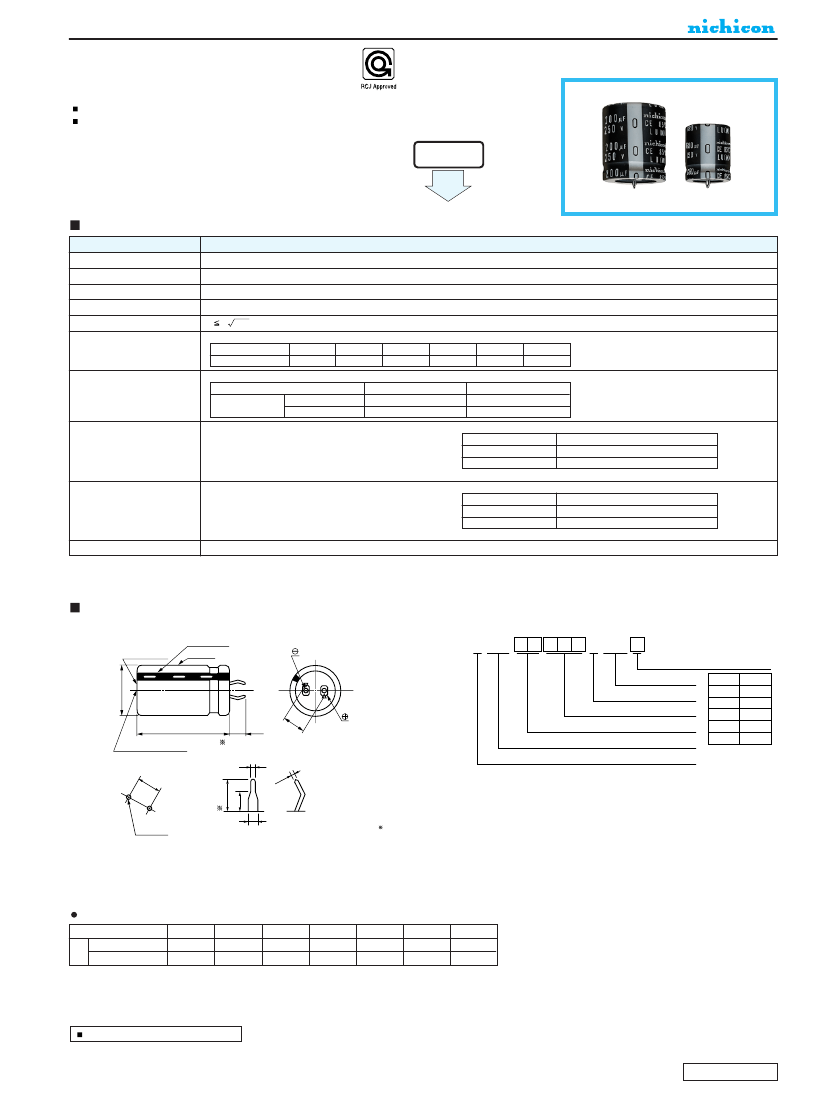

ALUMINUM ELECTROLYTIC CAPACITORS
LU
Snap-in Terminal Type, Standard
series
Approved by Reliability Center for Electronic
Component, Japan-Certification No. RCJ-03-25D
Withstanding 3000 hours application of ripple current at 85°C.
Higher production efficiency due to 4.0mm long terminal.
LU
Smaller
LS
Specifications
Item
Performance Characteristics
Category Temperaturer Renge
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
–
40 ~ +85°C (160 ~ 250V),
–
25 ~ +85°C (400 ~ 450V)
160 ~ 450V
56 ~ 2700µF
± 20% at 120Hz, 20°C
I
3 CV
(µA) (After 5 minutes' application of rated voltage)
Rated voltage (V)
tan
δ
(MAX.)
[C : Rated Capacitance (µF) V : Voltage(V)]
Measurement frequency :120Hz, Temperature : 20°C
400
0.15
450
0.20
160
0.15
180
0.15
200
0.15
250
0.15
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage(V)
Impedance ratio
ZT/Z20 (MAX.)
Z—25°C/ Z+20°C
Z—40°C/ Z+20°C
160 ~ 250
3
12
400 ~ 450
8
—
Endurance
After an application of DC voltage (in the range of rated
DC voltage even after over-lapping the specified ripple
current) for 3000 hours at 85°C, capacitors meet the
characteristic requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ± 20% of initial value
200% or less of initial specified value
Initial specified value or less
Shelf Life
After leaving capacitors under no load at 85°C
for 1000 hours, they meet the requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±15% of initial value
150% or less of initial specified value
Initial specified value or less
Marking
Printed with white color letter on black sleeve.
Drawing
Polarity bar
Bottom plate
Sleeve
Type numbering system ( Example : 400V 270
µ
F)
1
2
3
4
5
6
7
8
9 10
11 12
L L U 2 G 2 7 1 MH L B
Case dia.code
Configuration
Capacitance tolerane(±20%)
Rated Capacitance(270µF)
φ
D
20
22
25
30
35
Code
Y
Z
A
B
C
φD
+1MAX.
10
L±2
Rated voltage(400V)
Series name
Pressure relief vent
4.0±0.5
0.8
+0.2
-0.1
0.1
0.8
-
+0
.2
Type
4.0±0.5
10
±
0.1
2.5
2-2φ
±
0.1
(PC board hole dimensions)
1.5
+0.2
-0.1
(Terminal dimensions)
The other terminal is also available upon request.
Please refer to page 195 for schematic of dimensions.
Frequency coefficient of rated ripple current
Frequency (Hz)
160~ 250V
400~ 450V
50
0.81
0.77
60
0.85
0.82
120
1.00
1.00
300
1.17
1.16
1k
1.32
1.30
10k
1.45
1.41
50k~
1.50
1.43
Coeff.
Minimum order quantity : 50pcs.
Dimension table in next page.
CAT.8100R
