BC557-TAP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC557-TAP

BC557-TAP: DescriptionTRANSISTOR 100 mA, 65 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC PACKAGE-3, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size140KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BC557-TAP Overview

TRANSISTOR 100 mA, 65 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC PACKAGE-3, BIP General Purpose Small Signal

BC557-TAP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-W3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	65 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz

Preview

Download Datasheet

View All

VISHAY

BC556 to BC558

Vishay Semiconductors

Small Signal Transistors (PNP)

Features

• PNP Silicon Epitaxial Planar Transistors for

switching and AF amplifier applications.

• These transistors are subdivided into three groups

A, B, and C according to their current gain. The

type BC556 is available in groups A and B, how-

ever, the types BC557 and BC558 can be supplied

in all three groups. As complementary types, the

NPN transistors BC546...BC548 are recom-

mended.

• On special request, these transistors are also

manufactured in the pin configuration TO-18.

C 1

18979

E 3

Mechanical Data

Case:

TO-92 Plastic case

Weight:

approx. 177 mg

Packaging Codes/Options:

BULK / 5 k per container 20 k/box

TAP / 4 k per Ammopack 20 k/box

Absolute Maximum Ratings

amb

= 25 °C, unless otherwise specified

Parameter

Collector - base voltage

Test condition

Part

BC556

BC557

BC558

Collector - emitter voltage

BC556

BC557

BC558

Symbol

- V

CBO

- V

CBO

- V

CBO

- V

CBO

- V

CES

- V

CES

- V

CES

- V

CES

- V

CEO

- V

CEO

- V

CEO

- V

CEO

Emitter - base voltage

Collector current

Peak colector current

Peak emitter current

Power dissipation

Peak base current

Value

100

200

500

200

Unit

- V

EBO

- I

amb

= 25 °C

tot

- I

Valid provided that leads are kept at ambient temperature at a distance of 2 mm from case.

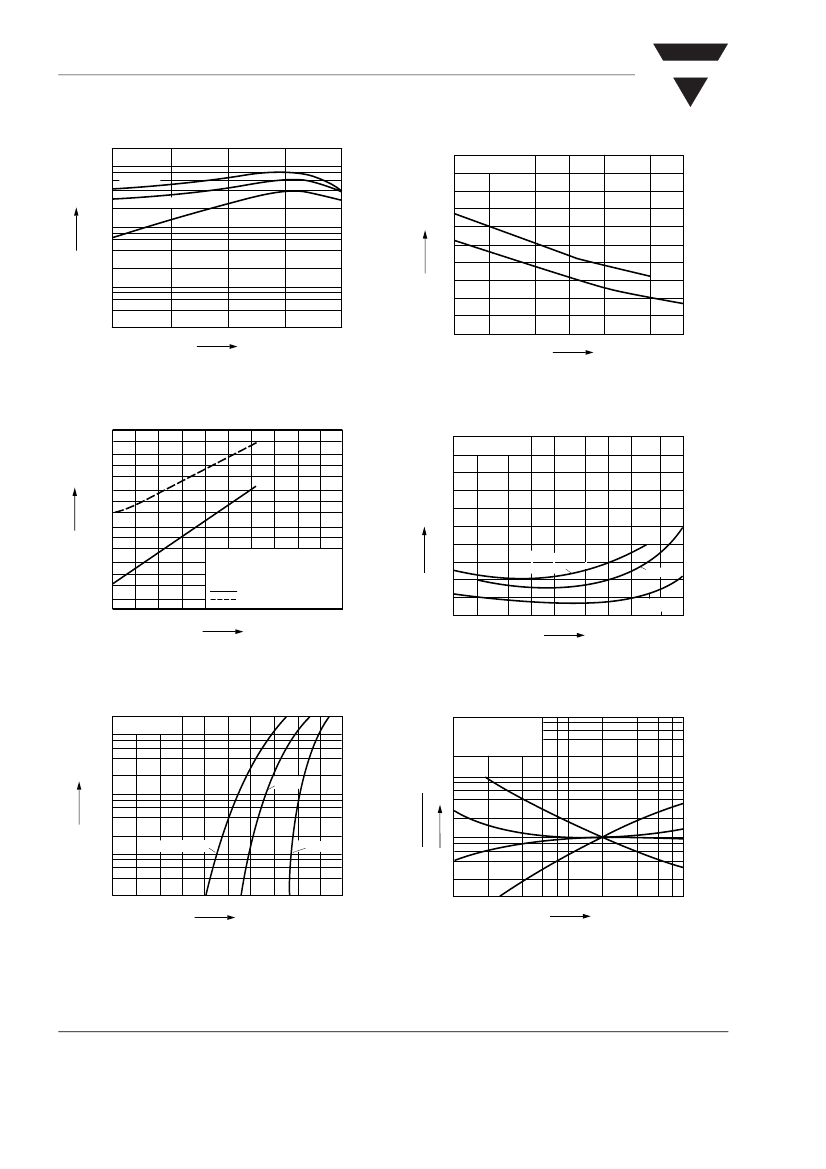

Document Number 85133

Rev. 1.2, 19-Aug-04

www.vishay.com
