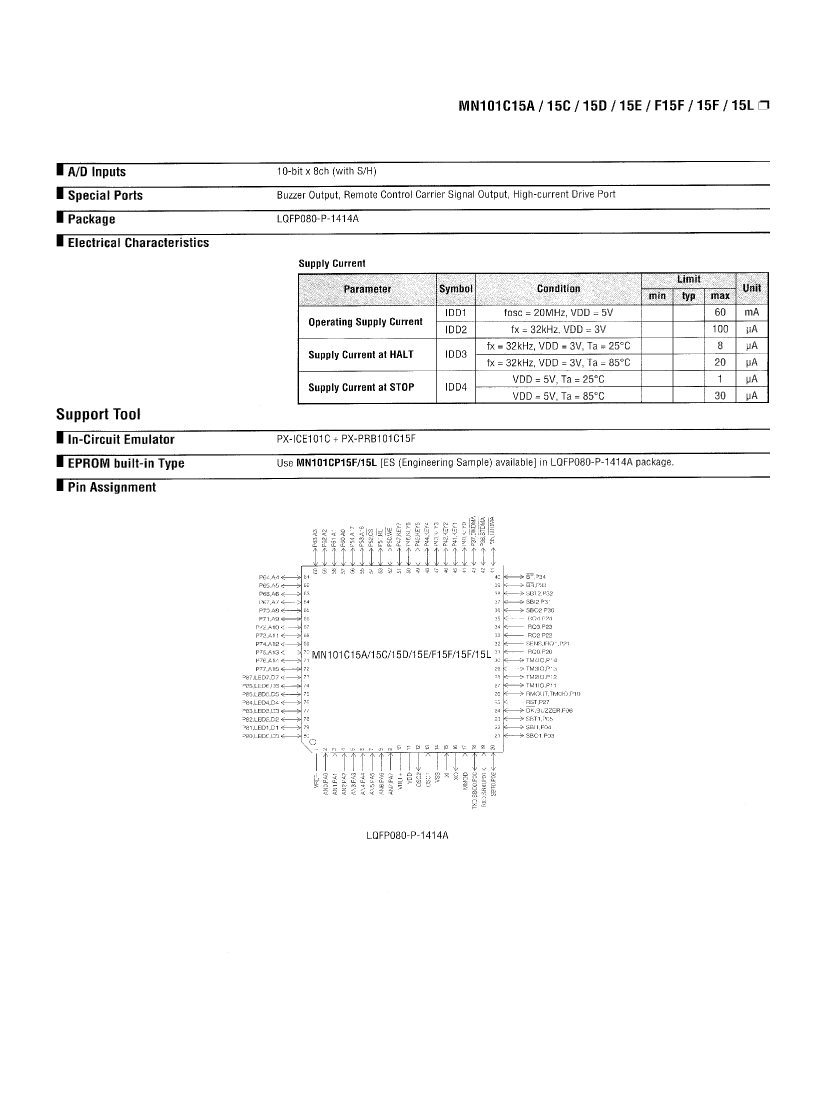

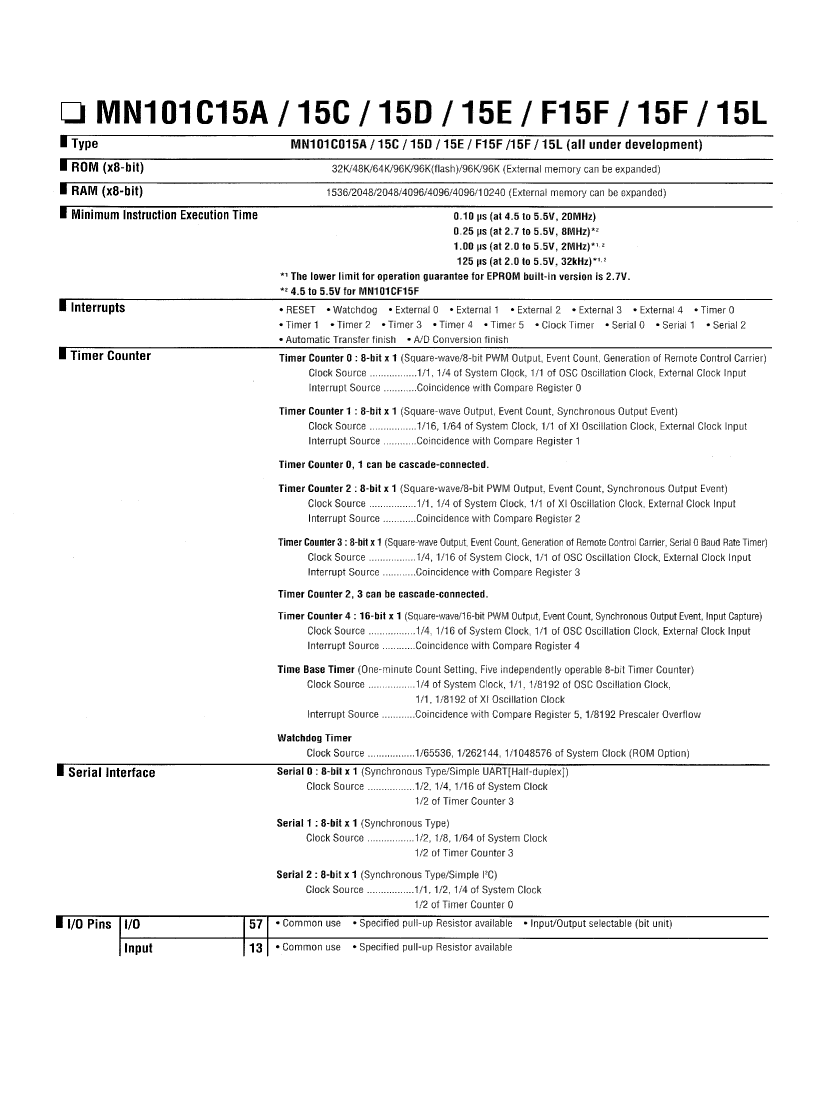

MN101C15D: DescriptionMicrocontroller, 8-Bit, OTPROM, 20MHz, CMOS, PQFP80, 14 X 14 MM, PLASTIC, LQFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size97KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

MN101C15D Overview

Microcontroller, 8-Bit, OTPROM, 20MHz, CMOS, PQFP80, 14 X 14 MM, PLASTIC, LQFP-80

MN101C15D Parametric

Parameter Name	Attribute value
Maker	Panasonic
Parts packaging code	QFP
package instruction	LQFP,
Contacts	80
Reach Compliance Code	unknown
Has ADC	YES
Other features	ALSO OPERATES AT 2.6V MINIMUM SUPPLY AT 8 MHZ
Address bus width	18
bit size	8
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G80
length	14 mm
Number of I/O lines	70
Number of terminals	80
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	1.7 mm
speed	20 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MN101C15D Related Products

	MN101C15D	MN101C15F	MN101C15C	MN101C15E	MN101C15A
Description	Microcontroller, 8-Bit, OTPROM, 20MHz, CMOS, PQFP80, 14 X 14 MM, PLASTIC, LQFP-80	Microcontroller, 8-Bit, OTPROM, 20MHz, CMOS, PQFP80, 14 X 14 MM, PLASTIC, LQFP-80	Microcontroller, 8-Bit, OTPROM, 20MHz, CMOS, PQFP80, 14 X 14 MM, PLASTIC, LQFP-80	Microcontroller, 8-Bit, MROM, 20MHz, CMOS, PQFP80,	Microcontroller, 8-Bit, MROM, 20MHz, CMOS, PQFP80,
Maker	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES
Address bus width	18	18	18	-	-
bit size	8	8	8	8	8
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
External data bus width	8	8	8	-	-
JESD-30 code	S-PQFP-G80	S-PQFP-G80	S-PQFP-G80	S-PQFP-G80	S-PQFP-G80
length	14 mm	14 mm	14 mm	14 mm	14 mm
Number of I/O lines	70	70	70	57	57
Number of terminals	80	80	80	80	80
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	LQFP	LQFP	LQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM	OTPROM	MROM	MROM
speed	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	GULL WING	GULLWING	GULLWING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm
Parts packaging code	QFP	QFP	QFP	-	-
package instruction	LQFP,	LQFP,	LQFP,	-	-
Contacts	80	80	80	-	-
Other features	ALSO OPERATES AT 2.6V MINIMUM SUPPLY AT 8 MHZ	ALSO OPERATES AT 2.6V MINIMUM SUPPLY AT 8 MHZ	ALSO OPERATES AT 2.6V MINIMUM SUPPLY AT 8 MHZ	-	-
maximum clock frequency	20 MHz	20 MHz	20 MHz	-	-
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	-	-
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	-	-
