E28F016XS-25 datasheet, PDF - EEWORLD Datasheet

E28F016XS-25: DescriptionFlash, 2MX8, 35ns, PDSO56, 14 X 20 MM, TSOP1-56; Categorystorage storage; File Size2MB，52 Pages; ManufacturerNumonyx ( Micron ); Websitehttps://www.micron.com

Download Datasheet Parametric Compare View All

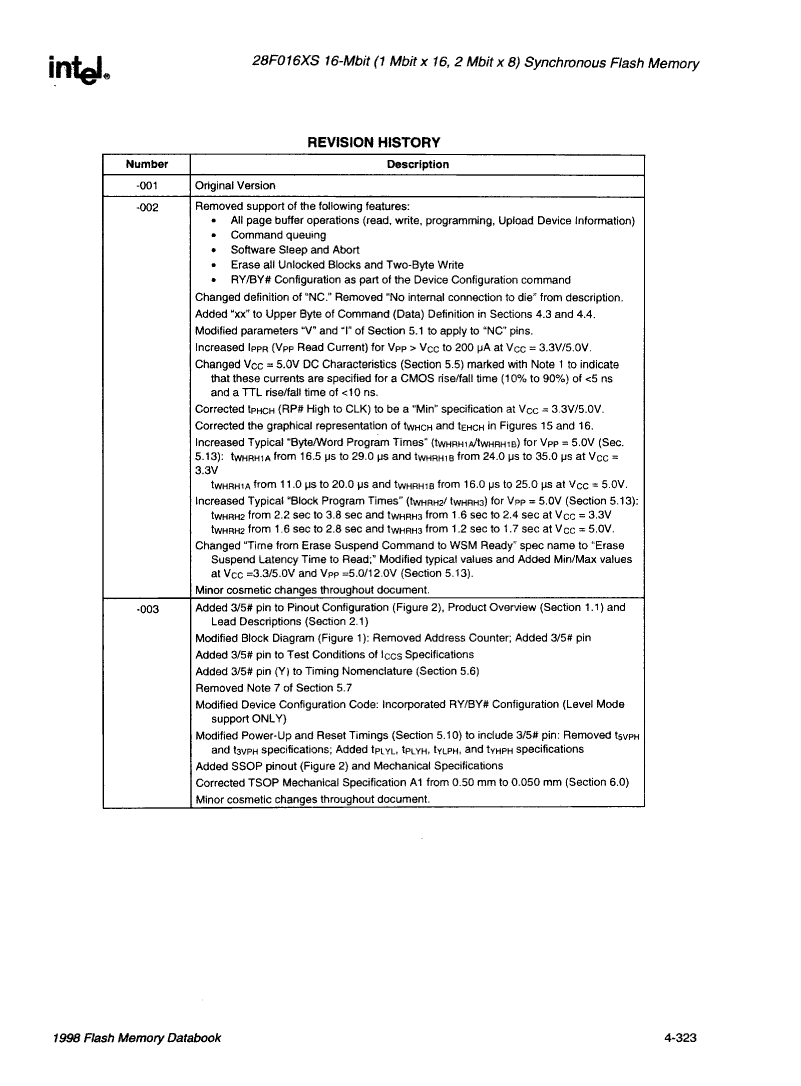

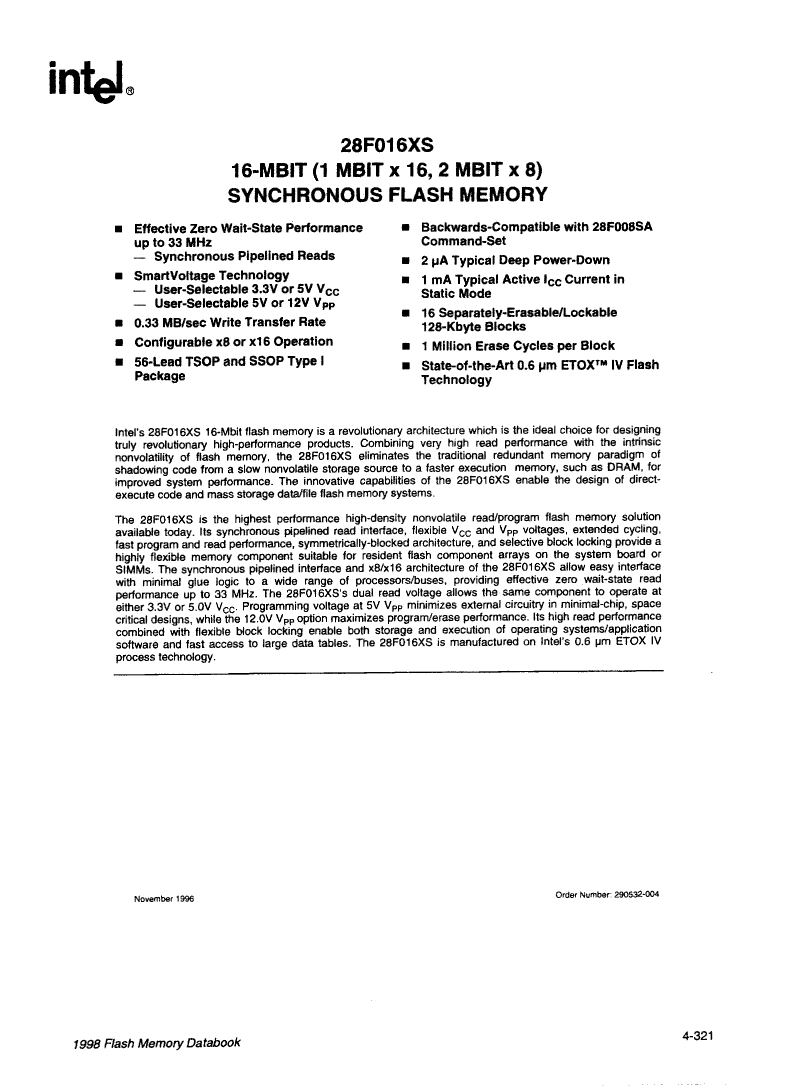

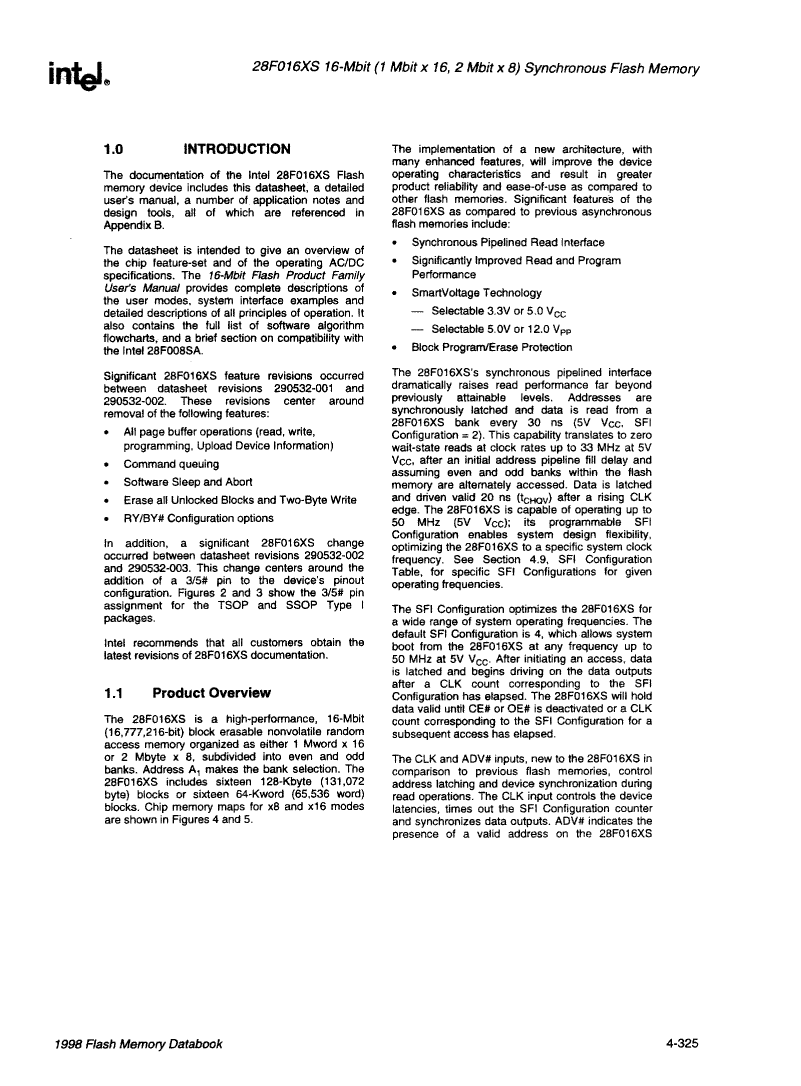

E28F016XS-25 Overview

Flash, 2MX8, 35ns, PDSO56, 14 X 20 MM, TSOP1-56

Parameter Name	Attribute value
Parts packaging code	TSOP1
package instruction	14 X 20 MM, TSOP1-56
Contacts	56
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	35 ns
Other features	ALSO CAN BE CONFIGURED AS 1M X 16
JESD-30 code	R-PDSO-G56
length	18.4 mm
memory density	16777216 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	56
word count	2097152 words
character code	2000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.465 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
type	NOR TYPE
width	14 mm
Base Number Matches	1

	E28F016XS-25	DA28F016XS-25
Description	Flash, 2MX8, 35ns, PDSO56, 14 X 20 MM, TSOP1-56	Flash, 2MX8, 35ns, PDSO56, 16 X 23.70 MM, SSOP1-56
Parts packaging code	TSOP1	SSOP
package instruction	14 X 20 MM, TSOP1-56	16 X 23.70 MM, SSOP1-56
Contacts	56	56
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Maximum access time	35 ns	35 ns
Other features	ALSO CAN BE CONFIGURED AS 1M X 16	ALSO CAN BE CONFIGURED AS 1M X 16
JESD-30 code	R-PDSO-G56	R-PDSO-G56
length	18.4 mm	23.7 mm
memory density	16777216 bi	16777216 bi
Memory IC Type	FLASH	FLASH
memory width	8	8
Number of functions	1	1
Number of terminals	56	56
word count	2097152 words	2097152 words
character code	2000000	2000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	2MX8	2MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL	PARALLEL
Programming voltage	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.9 mm
Maximum supply voltage (Vsup)	3.465 V	3.465 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.8 mm
Terminal location	DUAL	DUAL
type	NOR TYPE	NOR TYPE
width	14 mm	13.3 mm
Base Number Matches	1	1
