C434D datasheet, PDF - EEWORLD Datasheet

C434D: DescriptionSilicon Controlled Rectifier, 510.25A I(T)RMS, 900000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, T7H, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size81KB，2 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

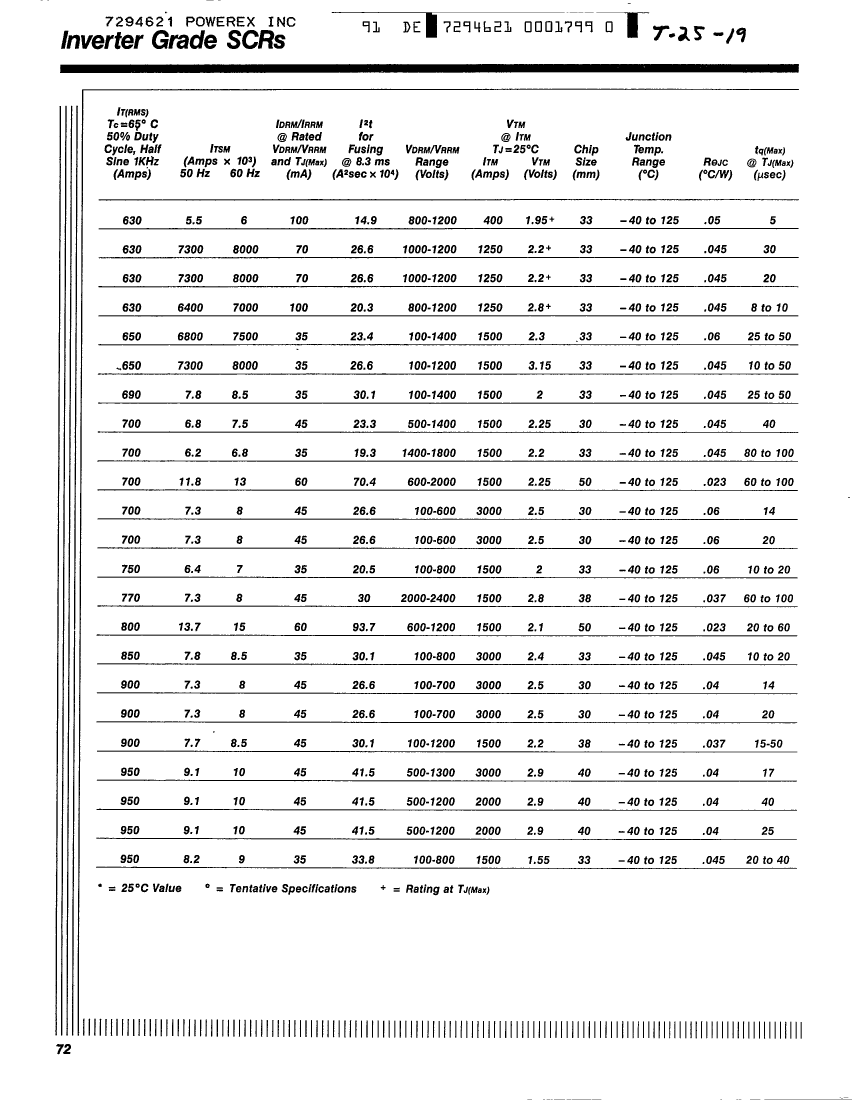

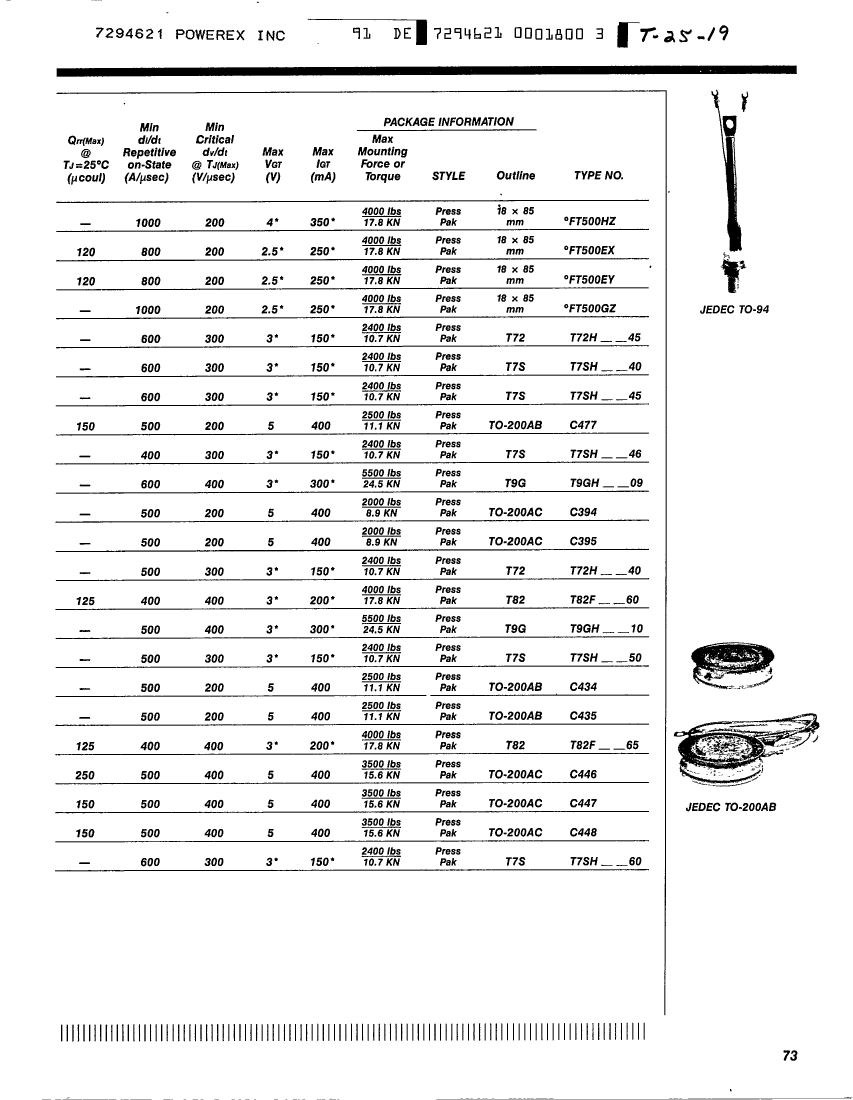

C434D Overview

Silicon Controlled Rectifier, 510.25A I(T)RMS, 900000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, T7H, 3 PIN

Parameter Name	Attribute value
Maker	POWEREX
package instruction	T7H, 3 PIN
Contacts	3
Reach Compliance Code	unknown
Other features	FAST
Nominal circuit commutation break time	15 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	40 mA
JESD-30 code	O-CEDB-N2
Maximum leakage current	45 mA
On-state non-repetitive peak current	8000 A
Number of components	1
Number of terminals	2
Maximum on-state current	900000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	510.25 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Trigger device type	SCR
