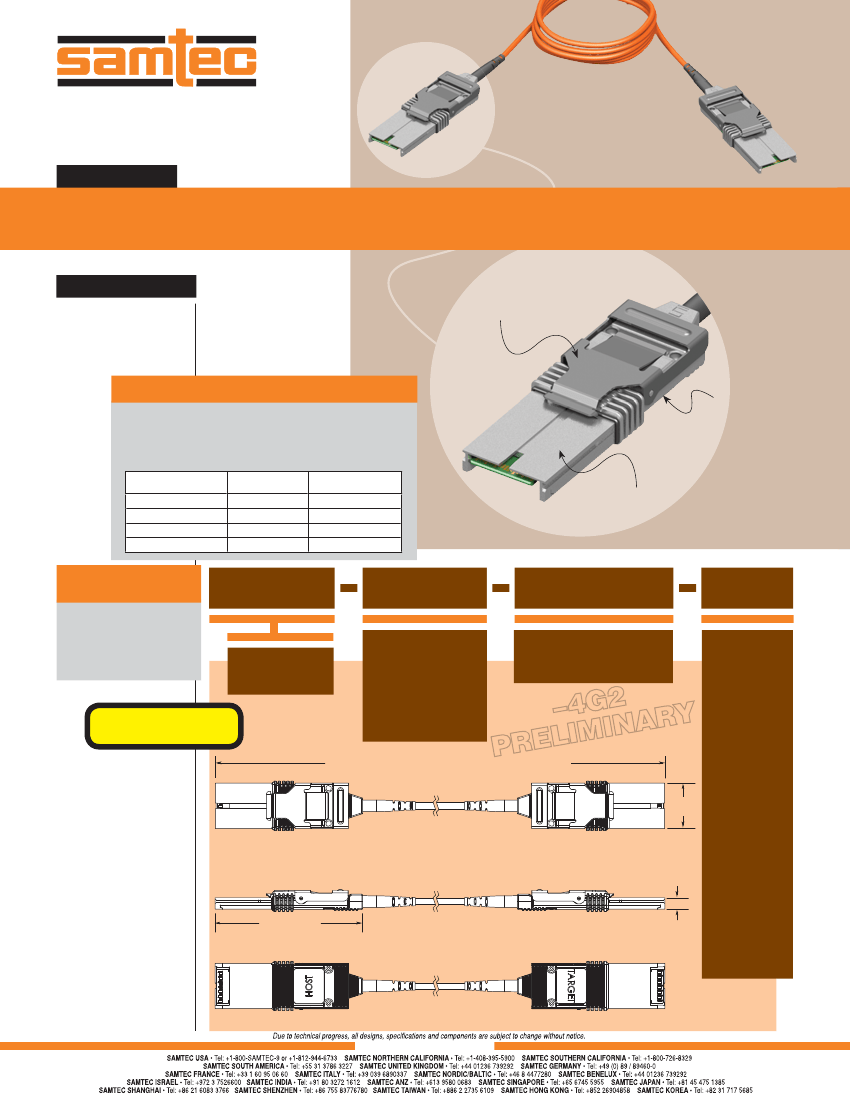

F-213 (Rev 24OCT13)
PCIEO–4G2–002.0–11
PCIEO SERIES
ACTIVE OPTICAL CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications
see www.samtec.com?PCIEO
Fiber Type:
1 m to 50 m = OM2
Over 50 m = OM3
All Half AOCs = OM3
Mates with:
PCIEA,
(PCIe
®
External cabling
specifications compliant
x4 and x8 connector)
Supports Gen 1 and
Gen 2 rates to 300 m
APPLICATION
A host adaptor and target adaptor that are compatible with
Active Optical Cables must be installed at each end of link.
Samtec Adaptor Cards (PCIEA Series), specifically designed
for optimum performance with optical and copper cables,
are strongly recommended for use with the AOCs.
SAMTEC
ADAPTOR CARD
HOST/TARGET
HOST
TARGET
HOST
TARGET
CABLE MATE
Lightweight
assembly
PCIEA-4G2-H-01
PCIEA-4G2-T-01
PCIEA-8G2-H-01
PCIEA-8G2-T-01
PCIEO-4G2
PCIEO-4G2
PCIEO-H8G2
PCIEO-H8G2
Multi-channel x4 device
in a x4 or x8 form factor
OTHER
SOLUTIONS
• PCIES Series Kit:
(2) PCIEA Series adaptor
cards, (1) PCIEO Series
cable assembly
Contact Samtec.
PCIEO
DATA
RATE
CABLE
LENGTH
CLOCK
FREQUENCY
–4G2
Full AOC
With Host
& Target
= x4 PCIe
®
GEN 1 & 2
–XXX.X
= Length in meters
–005.0 = 5 m to –300.0 = 300 m
–11
= 100 MHz Clock
Frequency
(Standard)
–H8G2
= x4 PCIe
®
width,
x8 PCIe
®
form factor
GEN 1 & 2
OVERALL LENGTH = CABLE LENGTH + (47,00) 1.85 ± 5%
–12
= 100 MHz Clock
Frequency
(No Sidebands)
Class 1 LASER PRODUCT
per IEC 60825-1 Ed. 2 (2007)
–13
= 100.3 MHz Clock
Frequency
(21,94)
(Standard)
.864
Patents:
7329054, 7824112,
7648287, 7766559, 8098993,
additional patents pending
Note:
Samtec PCIe
over Fiber systems have
successfully passed the
PCI-SIG
®
Compliance
Workshop #85; however
as with all PCIe
®
based
systems, there is a risk of
interoperability issues with
specific systems. Samtec
recommends discussing your
system with our Optical Group
prior to final design. Please
contact pcie@samtec.com.
PCIe
®
is a registered
trademark of PCI-SIG
®
.
Note:
Some sizes, styles
and options are non-standard,
non-returnable.
®
–14
= 100.3 MHz Clock
Frequency
(No Sidebands)
–15
= No Clock Output
(Standard)
(71,30) 2.807
(5,54)
.218
–16
= No Clock Output
(No Sidebands)
WWW.SAMTEC.COM

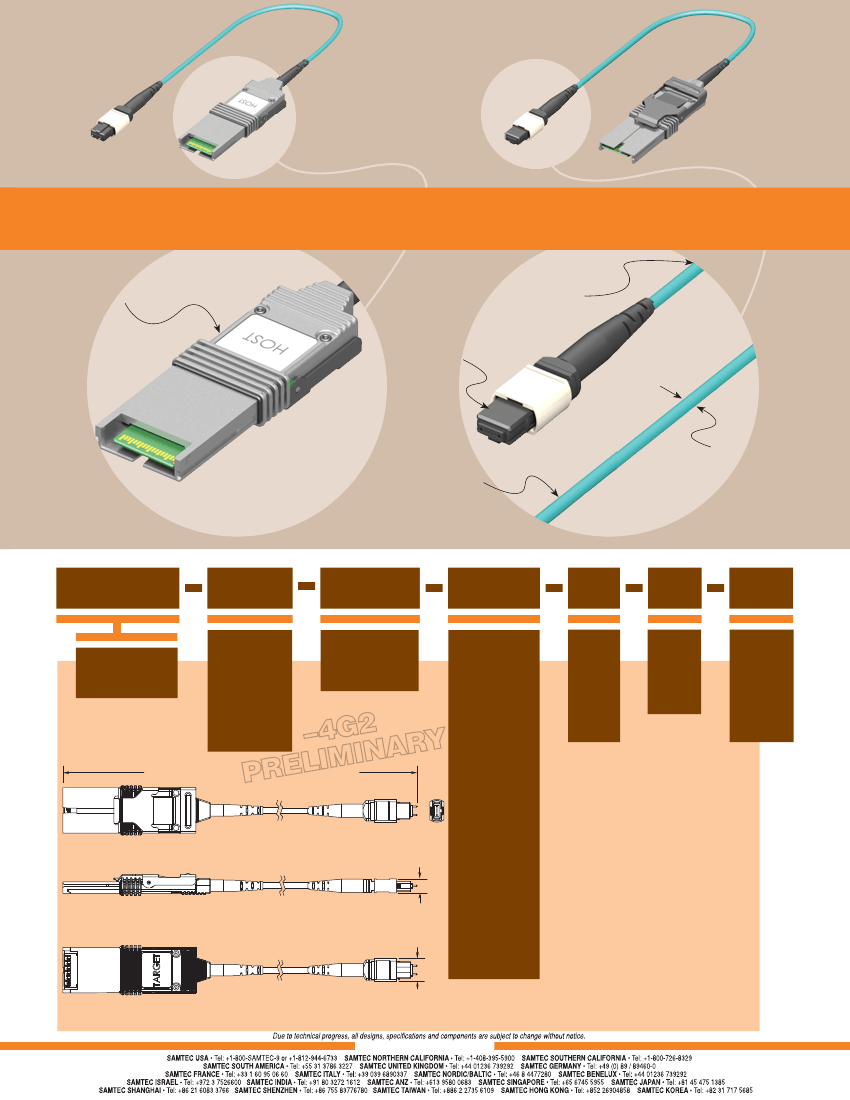

PCIEO–4G2–000.5–11–H–01–F
PCIEO–4G2–000.5–11–H–01–M
Fully integrated electrical to
optical conversion engine
30 mm bend
radius
Male or Female
MTP end option
3 mm
diameter
Cable lengths
up to 300 meters
PCIEO
DATA
RATE
CABLE
LENGTH
CLOCK
FREQUENCY
TYPE
END
OPTION
Required
Callout
GENDER
–4G2
Half AOC
Requires
MTP End option
= x4 PCIe
®
GEN 1 & 2
–XXX.X
= Length in meters
–000.5 = 500 mm to
–300.0 = 300 m
–11
= 100 MHz Clock
Frequency
(Standard)
Required
Callout
Required
Callout
–H
= Host
–01
= MTP
(key down)
–M
= Male
–H8G2
= x4 PCIe
®
width,
x8 PCIe
®
form factor
GEN 1 & 2
–12
= 100 MHz Clock
Frequency
(No Sidebands)
–T
= Target
–F
= Female
OVERALL LENGTH = CABLE
LENGTH + (28
1.12
ABLE
(28,5)
–13
= 100.3 MHz Clock
Frequency
(Standard)
–14
(7,60)
.299
= 100.3 MHz Clock
Frequency
(No Sidebands)
–15
= No Clock Output
(Standard)
(12,39)
.488
–16
= No Clock Output
(No Sidebands)
–T–01–M SHOWN
