IRKKF111-08DK datasheet, PDF - EEWORLD Datasheet

IRKKF111-08DK: DescriptionSilicon Controlled Rectifier, 250A I(T)RMS, 112000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, POWER, INT-A-PAK-5; CategoryAnalog mixed-signal IC Trigger device; File Size291KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

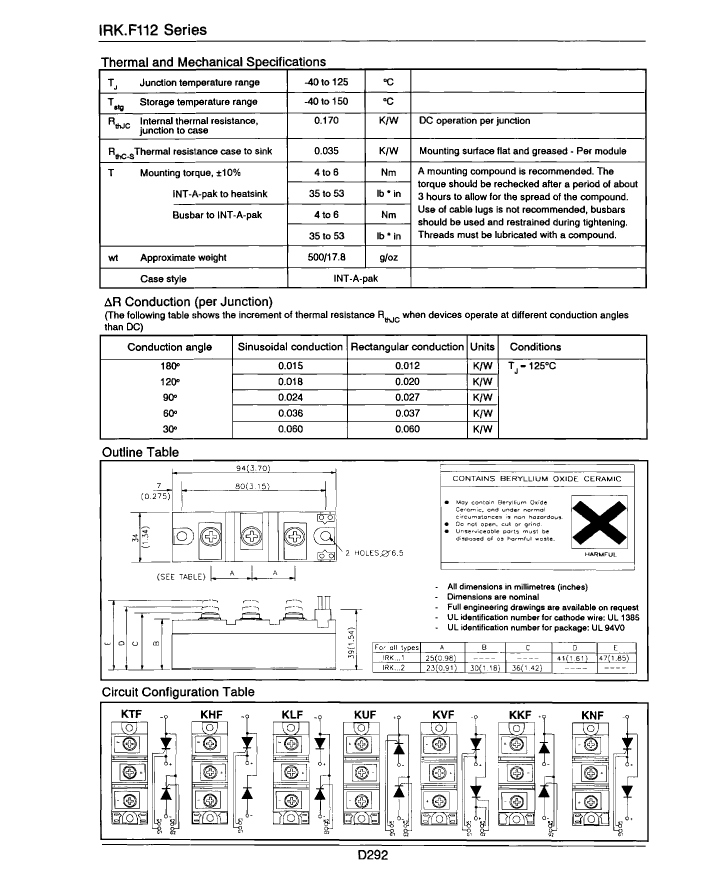

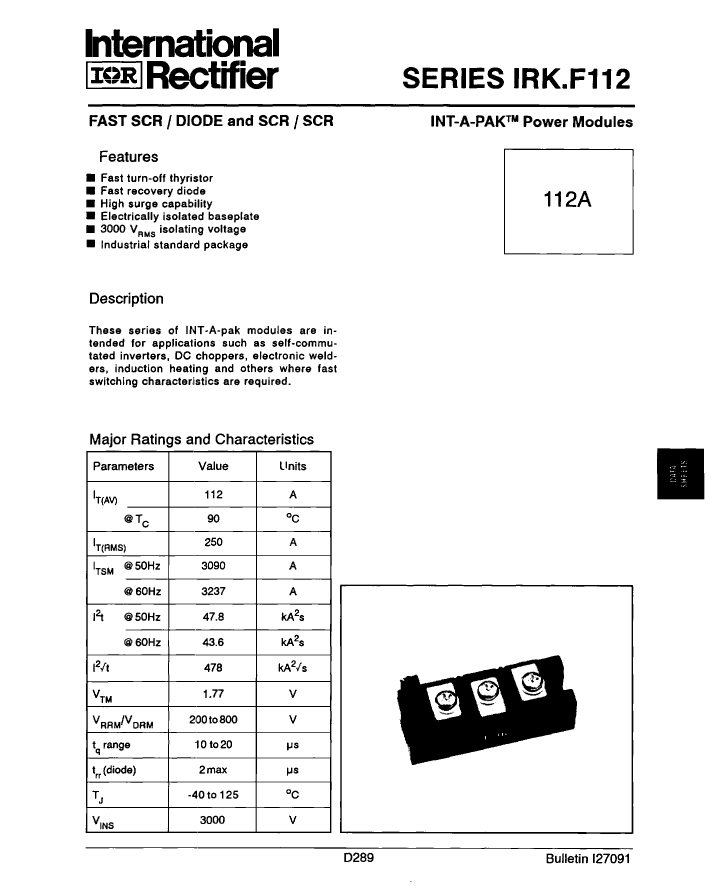

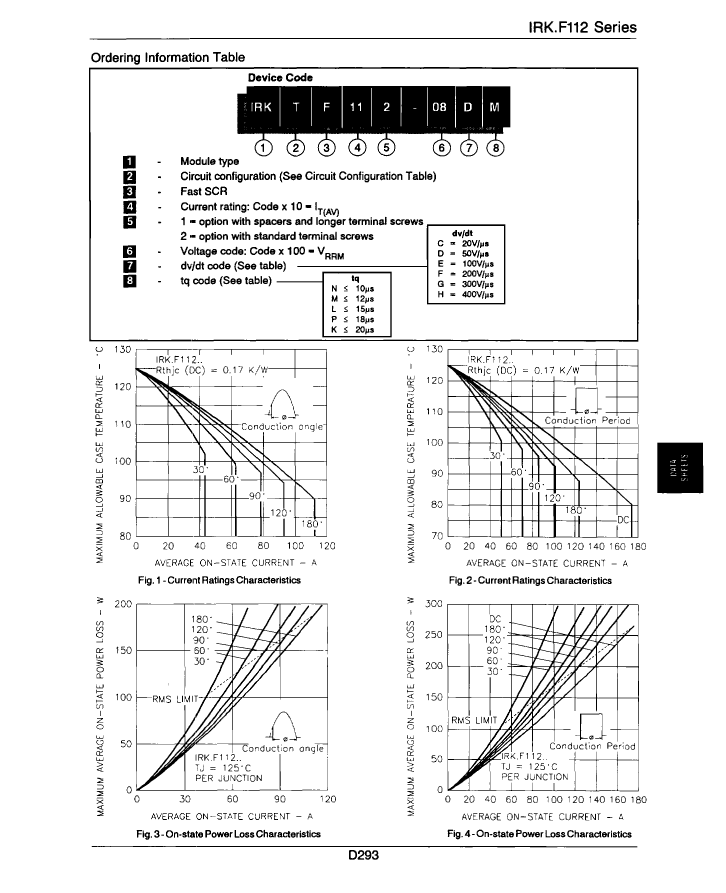

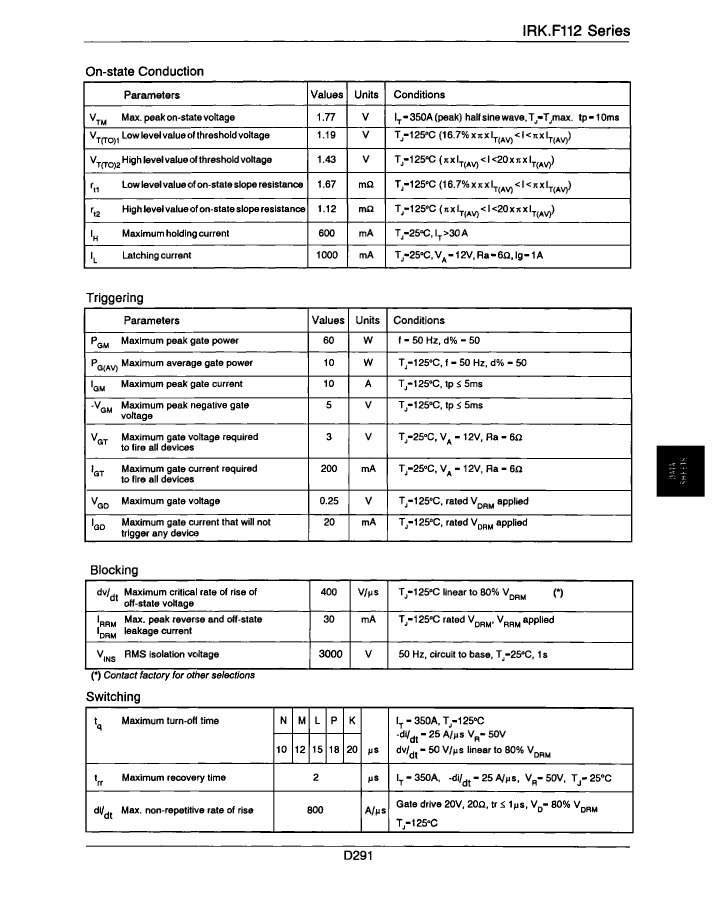

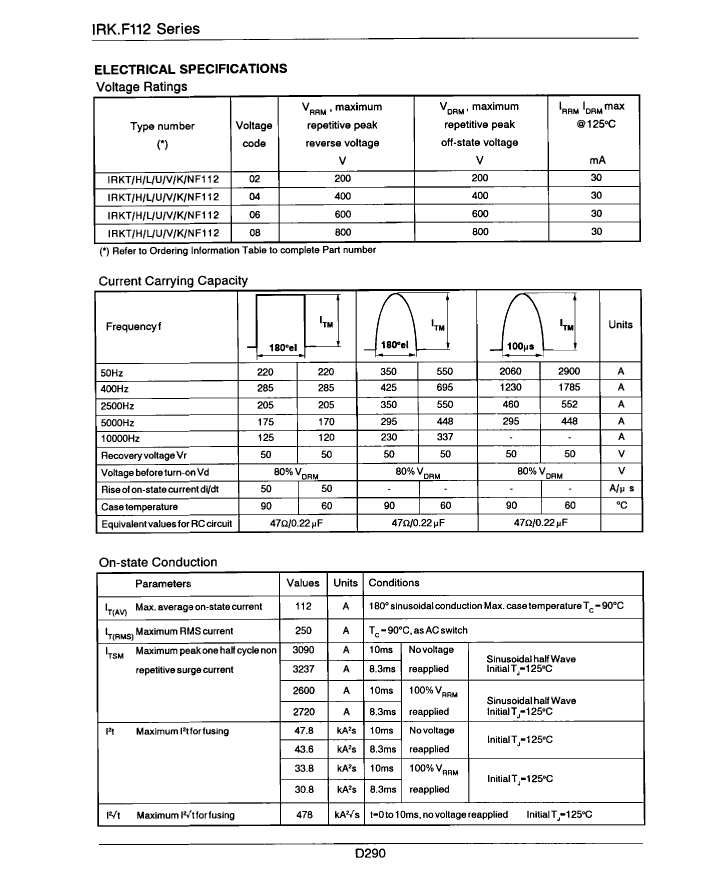

IRKKF111-08DK Overview

Silicon Controlled Rectifier, 250A I(T)RMS, 112000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, POWER, INT-A-PAK-5

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-X5
Contacts	5
Reach Compliance Code	unknown
Shell connection	ISOLATED
Nominal circuit commutation break time	20 µs
Configuration	SINGLE WITH BUILT-IN FREE-WHEELING DIODE
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	G-GR
Description of screw terminals	2A-CK
Maximum holding current	600 mA
JESD-30 code	R-PUFM-X5
Maximum leakage current	30 mA
Humidity sensitivity level	1
On-state non-repetitive peak current	3200 A
Number of components	1
Number of terminals	5
Maximum on-state current	112000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum rms on-state current	250 A
Maximum repetitive peak off-state leakage current	30000 µA
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
