SI42BL-FREQ-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> SI42BL-FREQ-R

SI42BL-FREQ-R: DescriptionCMOS Output Clock Oscillator, 1.544MHz Min, 125MHz Max, ROHS COMPLIANT, MINIATURE, HERMETIC SEALED, SMD, 4 PIN; CategoryPassive components oscillator; File Size198KB，1 Pages; ManufacturerCal Crystal Lab Inc / Comclok Inc; Websitehttps://www.transko.com; Environmental Compliance

Download Datasheet Parametric View All

SI42BL-FREQ-R Overview

CMOS Output Clock Oscillator, 1.544MHz Min, 125MHz Max, ROHS COMPLIANT, MINIATURE, HERMETIC SEALED, SMD, 4 PIN

SI42BL-FREQ-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cal Crystal Lab Inc / Comclok Inc
Reach Compliance Code	compliant
Other features	TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	5 ns
Maximum supply voltage	1.98 V
Minimum supply voltage	1.62 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

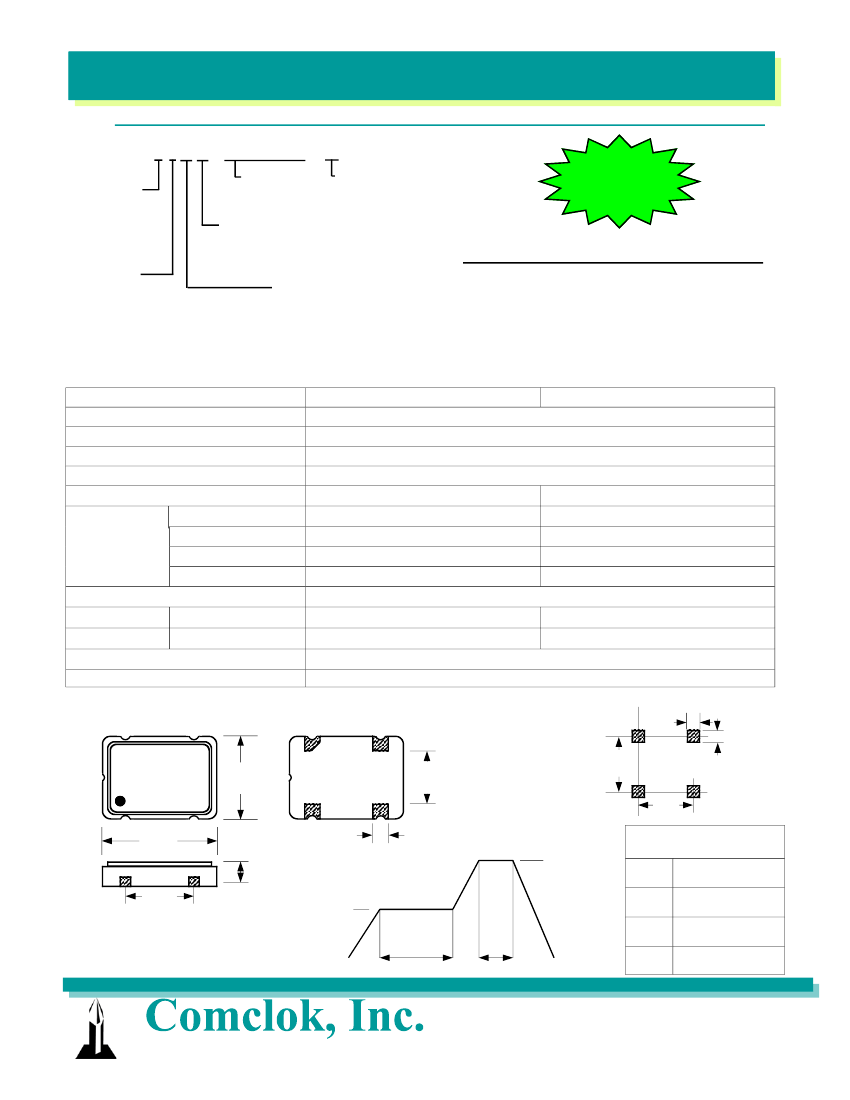

ULTRA MINIATURE SMD OSCILLATOR

SS or SI 1 1 A M - 10.000MHz - R

Frequency

Tolerance

1 .... 100ppm

2 .... 50ppm

3 .... 25ppm

4 .... 20ppm

SI / SS Series

Frequency

Size / Option

RoHS Option

* Blank No Option

R ...RoHS Compliant

RoHs

Compliant

L .... SMD Tape / Reel (Dual Comp)

M ... SMD Tri-State Tape / Reel

Symmetry

1 .... 60/40

2 .... 45/55

Electrical Specifications

MODEL

FREQUENCY RANGE

FREQUENCY STABILITY

OPERATING TEMP.

STORAGE TEMP.

SUPPLY VOLTAGE

A ....0

C to +70

B ....-20

C to +70

C ....-40

C to +85

D ....-10

C to +50

E ....-20

C to +60

F ....-10

C to +70

Z ....Other

Operating Temperature

Features of the SS / SI series clock oscillator:

•

SS = 3.3Vdc

•

SI = 1.8Vdc

•

Industry standard (5.0 X 3.2 X 1.3mm SMD)

•

Fast rise and fall times

•

Tight stability available

•

Hermetically sealed

•

Wide frequency range

1.544 ~ 125.000 MHz

±25ppm, ±50ppm, ±100ppm

0ºC ~ 70ºC (-40ºC ~ 85ºC optional)

-55ºC ~ 125ºC

+3.3VDC ±10%

1.544 ~ 9.999MHz

8mA Max

10mA Max

25mA Max

35mA Max

+1.8VDC ±10%

6mA Max

7mA Max

15mA Max

20mA Max

SUPPLY

CURRENT

SYMMETRY

OUTPUT

10.000 ~ 34.999MHz

35.000 ~ 49.999MHz

50.000 ~ 125.000MHz

60/40% @ 1/2 VDD STD, 45/55% optional

RISE TIME

FALL TIME

“Tr”

“Tf”

7 nS Max

30pF Max (15pF STD)

Pin 1 tri-state function

1.4

1.2

1.2±0.1

5 nS Max

OUTPUT LOAD

OPTION

Mechanical Specifications

BOTTOM

TOP

3.2±0.2

COMCLOK

Part Number

Frequency

Recommended

Soldering Layout

2.2

2.54

5.0±0.2

1.3

Max

1.2±0.1

Soldering

260 ±5°C

Pad Connections

N.C. or Tri-State

Ground

Output

Vcc (3.3 or 1.8VDC)

SIDE

Reflow Profile

Pre-heating

150 ±5°C

2.54±0.1

unit: mm

120 Sec

10 Sec

15302 Bolsa Chica Street, Huntington Beach, CA 92649

Ph: 714-991-1580 / 800-333-9825 Fax: 714-491-9825

www.calcrystal.com

e-mail: sales@calcrystal.com

Ver. 2.2 0806
