T4 MINI TRIM SWITCHES
4-WAY MINI TRIM, COMMERCIAL & MILITARY GRADES
T4 MINI TRIM
SWITCHES
MT
OTTO Mini Trims are toggle switches available in 2-way, 4-way,
4-way plus pushbutton, and 8-way versions. The T4 Mini Trim is
a single pole, 4 throw, center off, momentary contact (self return
to center off). Numerous button styles are available on both
the Commercial and Military grade switch versions. Mini Trims
are typically press fit into control grips or panel mounted using
versions with an 11/16” threaded case. Mini Trims are also
available with multiple sealing levels to fit all applications.
TRIM SWITCHES

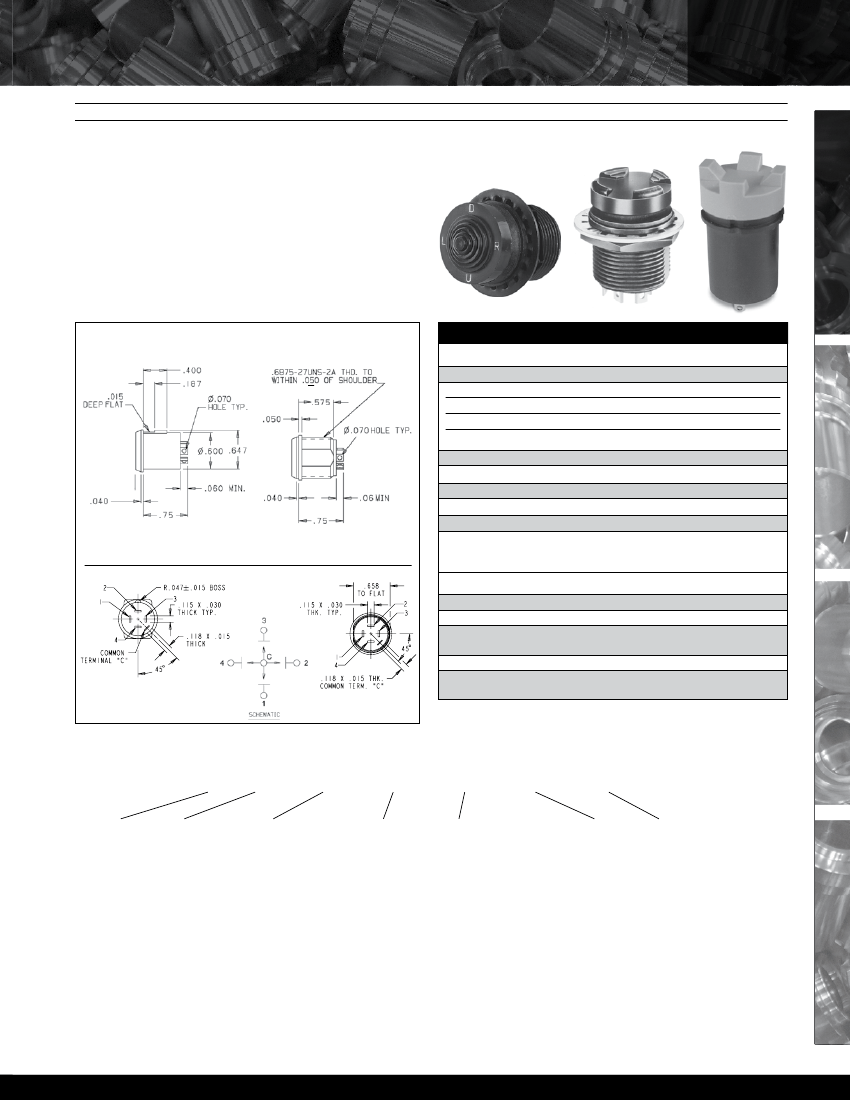

Typical Dimensions
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
DWV
Low Level
Electrical Life:
Lever Travel:
Seal:
Operating Temp Range:
Operating Force:
Rating
10mA @ 5VDC (low level)
1A @ 28VDC
1050Vrms
10mA Resistive @ 5VDC
100,000 cycles 1A Inductive @ 28VDC
15° max from center OFF
IP64 or IP68S or MIL-PRF-8805 Design 3
-55°C to +85°C
16 oz +/- 6 oz
Switch is capable of withstanding a force of 25.0 lbs.
applied to the actuating button. The button also
withstands 15.0 lbs. minimum pull force.
Press Fit
Threaded Body
Lever Pivot & Stop Strength:
T4
MATERIALS:
Case:
Button:
Terminals:
Terminal Hardware:
Mounting Hardware:
Aluminum alloy or thermoplastic
Thermoplastic
Silver over brass
Brass with gold over silver for low level
None provided
Hex nut, tooth lockwasher, panel seal gasket
where applicable
Press Fit
Threaded Body
T4
Series
T4.
4-Way
–
X

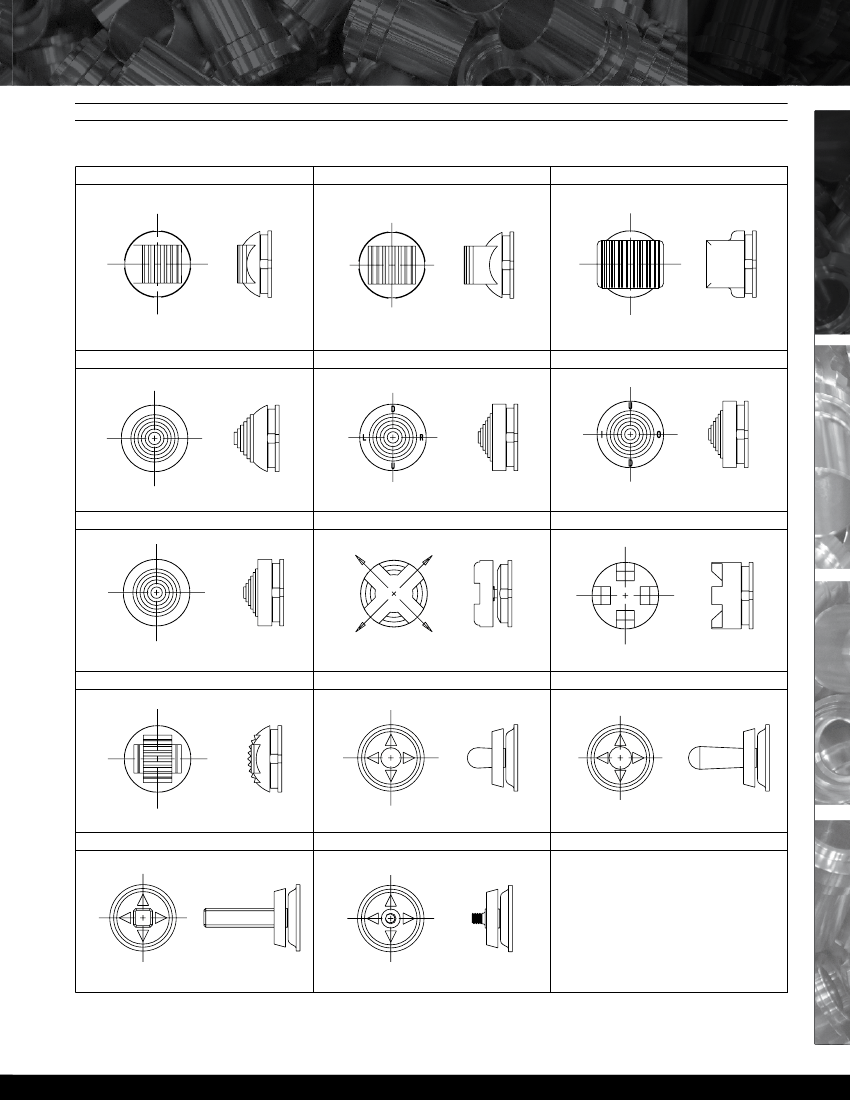

Button Style
T4 MINI TRIM PART NUMBER CODE
X
X
X
X
X
Current Rating
Button Color*
1.
Red
2.
Black
8.
Gray
N.
Not Applicable**
* Contact factory for additional
button colors.
** Use when specifying button
styles L, M, N and P.
Grade
C.
Commercial
M.
Military
Case Style
1.
Press Fit
2.
Threaded
Seal Level
A.
2-Way Jog
B.
Tall Jog
C.
Rocker
D.
Cone
E.
LRUD Hat
F.
IOUD Hat
G.
Hat
H.
Stadium
J.
Castle
K.
4-Way Jog
L.
Short Bat
M.
Bat
N.
Post
P.
4-40 Threaded Post
1. Standard
1.
IP64 Dusttight
2.
IP68S Watertight
2. Low Level
3.
Design Symbol 3 Watertight
per MIL-PRF-8805 and Meets
Environmental Testing per
MIL-DTL-9419
Specifications Subject To Change Without Notice
www.ottoexcellence.com
