DATA SHEET

COMPOUND TRANSISTOR

AN1A4Z

on-chip resistor PNP silicon epitaxial transistor

For mid-speed switching

FEATURES

• On-chip bias resistor

= 10 kΩ)

• Complementary transistor with AA1A4Z

PACKAGE DRAWING (UNIT: mm)

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)

Parameter

Collector to base voltage

Collector to emitter voltage

Emitter to base voltage

Collector current (DC)

Collector current (Pulse)

Total power dissipation

Junction temperature

Storage temperature

Symbol

CBO

CEO

EBO

C(DC)

C(pulse)

stg

Ratings

−60

−50

−5

−100

−200

250

150

−55

to +150

Unit

°C

* PW

≤

10 ms, duty cycle

≤

50 %

ELECTRICAL CHARACTERISTICS (Ta = 25°C)

Parameter

Collector cutoff current

DC current gain

Collector saturation voltage

Low level input voltage

High level input voltage

Input resistance

Turn-on time

Storage time

Turn-off time

Symbol

CBO

FE1

FE2

CE(sat)

stg

off

−5.0

V, R

= 1.0 kΩ

−5.0

V, PW = 2.0

duty cycle≤2 %

Conditions

−50

V, I

= 0

−5.0

V, I

−5.0

V, I

−50

−5.0

mA, I

−0.25

−5.0

V, I

−100

−0.2

V, I

−5.0

−2.0

7.0

135

100

190

170

−0.07

−0.57

−0.9

13.0

0.2

5.0

6.0

−0.2

−0.5

MIN.

TYP.

MAX.

−100

600

Unit

−

kΩ

** Pulse test PW

≤

350

s, duty cycle

≤

2 %

CLASSIFICATION

Marking

FE1

135 to 270

200 to 400

300 to 600

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for

availability and additional information.

Document No. D16166EJV0DS00 (1st edition)

Date Published April 2002 N CP(K)

Printed in Japan

2002

1998

AN1A4Z

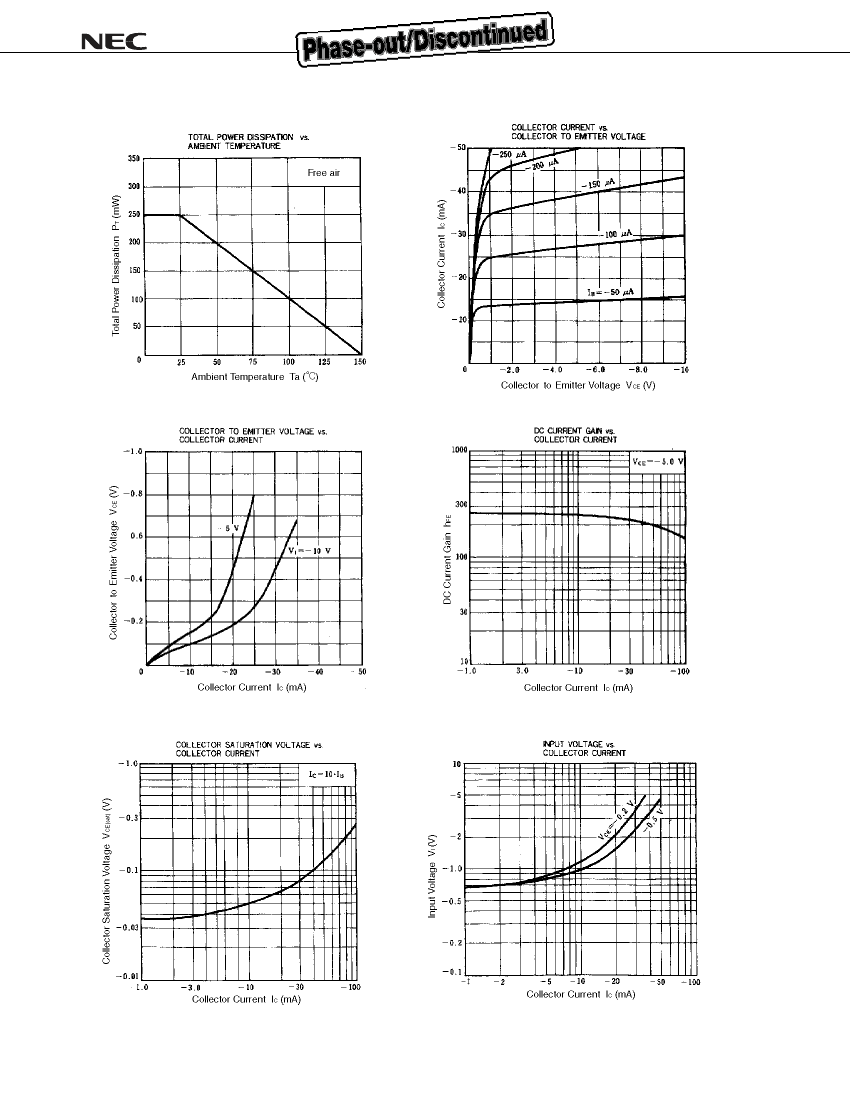

TYPICAL CHARACTERISTICS (T

= 25°C)

Data Sheet D16166EJ1V0DS

AN1A4Z

Data Sheet D16166EJ1V0DS
