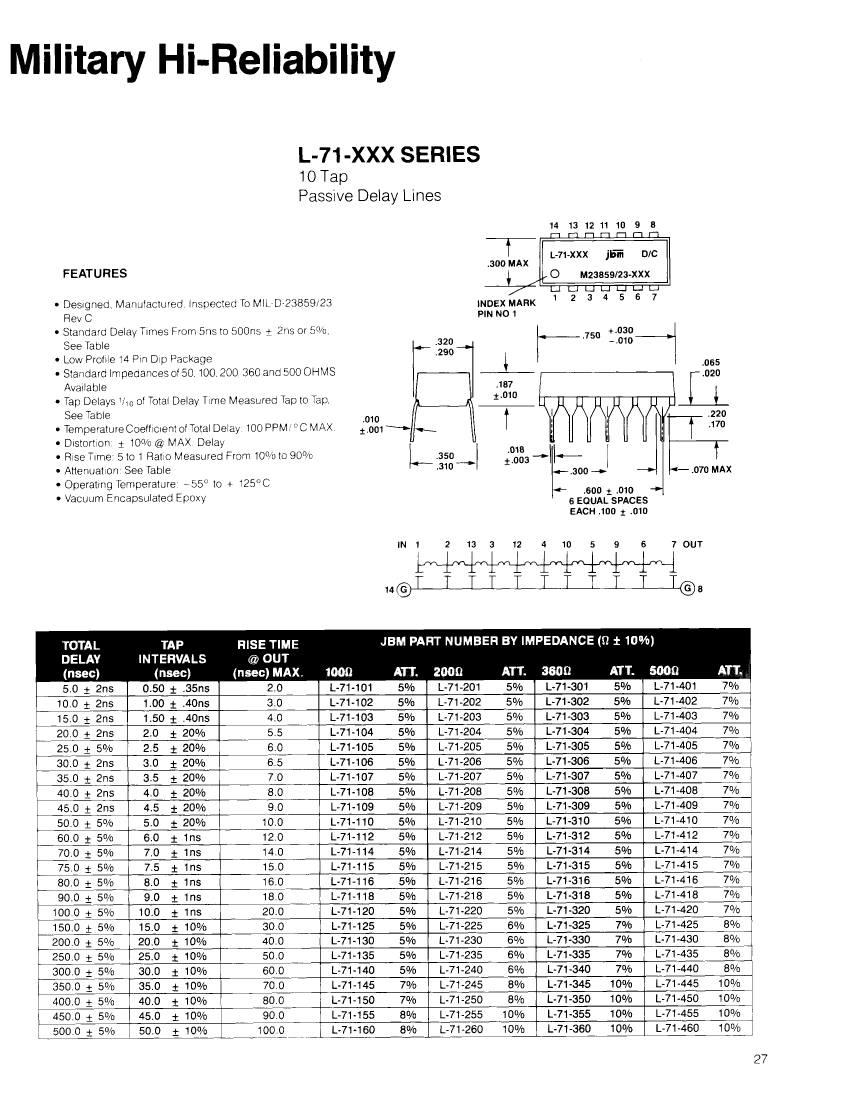

L-71-445 datasheet, PDF - EEWORLD Datasheet

L-71-445: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, LOW PROFILE, DIP-14; Categorylogic logic; File Size57KB，1 Pages; ManufacturerSIXNET; Websitehttp://www.sixnet.com/index.cfm

Download Datasheet Parametric View All

L-71-445 Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, LOW PROFILE, DIP-14

Parameter Name	Attribute value
Maker	SIXNET
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
Other features	MILITARY DESIGNATION NUMBER M23859/23-445; MAX RISE TIME & TEMP. COEFF. CAPTURED
JESD-30 code	R-XDIP-T14
length	19.05 mm
Load capacitance (CL)	11 pF
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	500 Ω
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	6.6548 mm
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	350 ns
width	7.62 mm
