HC49S-FREQ1-CBF10011000

Description
Parallel - Fundamental Quartz Crystal, 3.2MHz Min, 3.5MHz Max, RESISTANCE WELDED PACKAGE-2
CategoryPassive components    Crystal/resonator
File Size159KB,1 Pages
ManufacturerFOX [Fox Electronics]
Download Datasheet Parametric View All

HC49S-FREQ1-CBF10011000 Overview

Parallel - Fundamental Quartz Crystal, 3.2MHz Min, 3.5MHz Max, RESISTANCE WELDED PACKAGE-2

HC49S-FREQ1-CBF10011000 Parametric

Parameter NameAttribute value
MakerFOX [Fox Electronics]
package instructionRESISTANCE WELDED PACKAGE-2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresTAPE AND REEL
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level500 µW
frequency stability0.005%
frequency tolerance30 ppm
load capacitance10 pF
Manufacturer's serial numberHC49S
Installation featuresTHROUGH HOLE MOUNT
Maximum operating frequency3.5 MHz
Minimum operating frequency3.2 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
physical sizeL11.35XB4.65XH3.6 (mm)/L0.447XB0.183XH0.142 (inch)
Series resistance300 Ω
surface mountNO

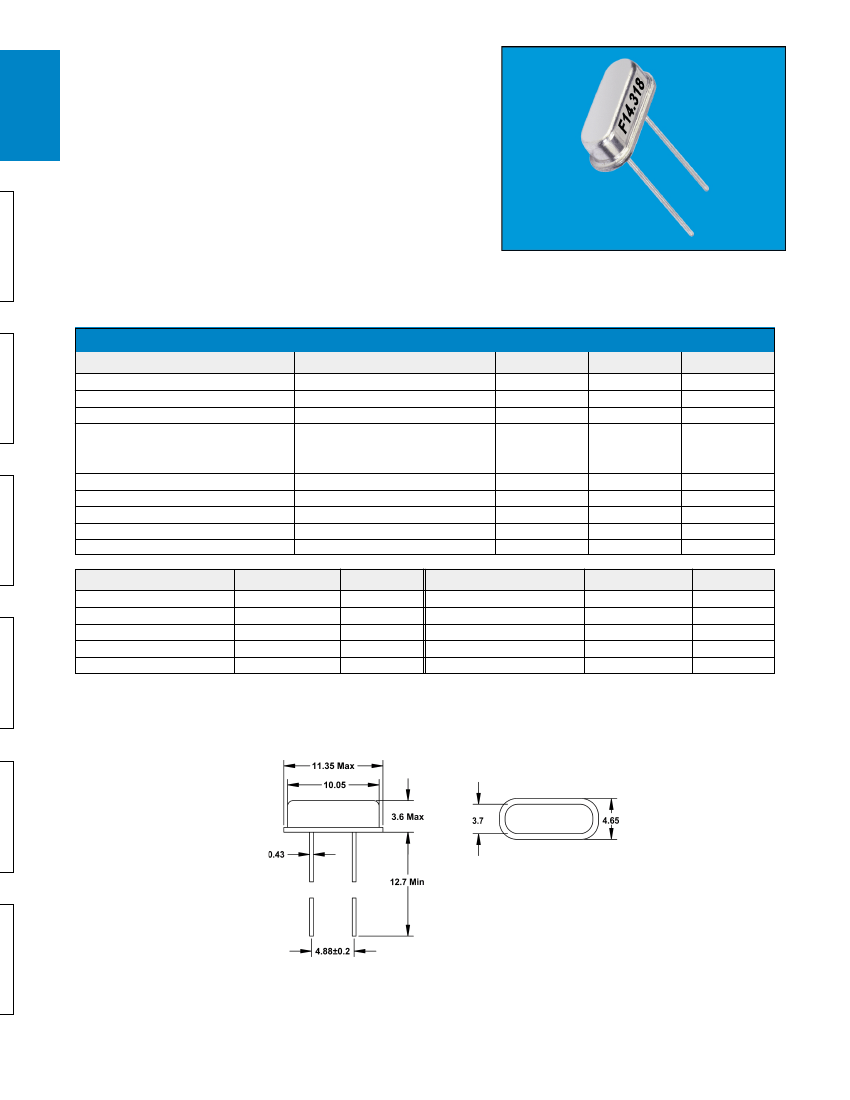

RESISTANCE WELD LOW PROFILE CRYSTAL
CRYSTALS
HC49S
FEATURES
•
•
•
•
Low Profile
Industry Standard
Cost Effective
"AT Strip"
The HC49S has the same lead spacing as the HC49U, but with a
3.6mm height it suits many space-limited applications. A surface
mount version, the HC49SD, is also available.
OPTIONS
• Mylar Spacer
• Tape and Reel (1,000pcs. STD)
• HC49S STANDARD SPECIFICATIONS *
PARAMETERS
Frequency Range
Frequency Tolerance
Frequency Stability, ref @ 25ºC
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Equivalent Series Resistance
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
Aging
Drive Level
CONDITIONS
Ta = 25ºC
Ta = -20ºC ~ +70ºC
MIN
3.200
-30
-50
-20
-40
10.0
-5.0
MAX
70.000
+30
+50
+70
+85
7.0
Series
+5.0
0.5
UNITS
MHz
PPM
PPM
ºC
W
pF
pF
PPM
mW
See Table 1
Customer Specified
Ta = 25ºC; per year
Frequency Range (MHz) Operating Mode Max ESR
W
Frequency Range (MHz) Operating Mode Max ESR
W
Fundamental
Fundamental
3.200 ~ 3.500
300
7.000+ ~ 9.000
80
Fundamental
Fundamental
3.500+ ~ 4.000
200
9.000+ ~ 13.000
60
Fundamental
Fundamental
150
40
4.000+ ~ 5.000
13.000+ ~ 20.000
Fundamental
Fundamental
120
30
5.000+ ~ 6.000
20.000+ ~ 30.000
Fundamental
3rd OT
6.000+ ~ 7.000
100
27.000 ~ 70.000
100
* Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer Service for specific requirements, or use crystal order form on page 6.
All specifications subject to change without notice. Rev. 11/28/01
All dimensions are in millimeters.
See page 31 for tape and reel specifications.
14
