JL04V-6A28-11PEX-EB-R datasheet, PDF

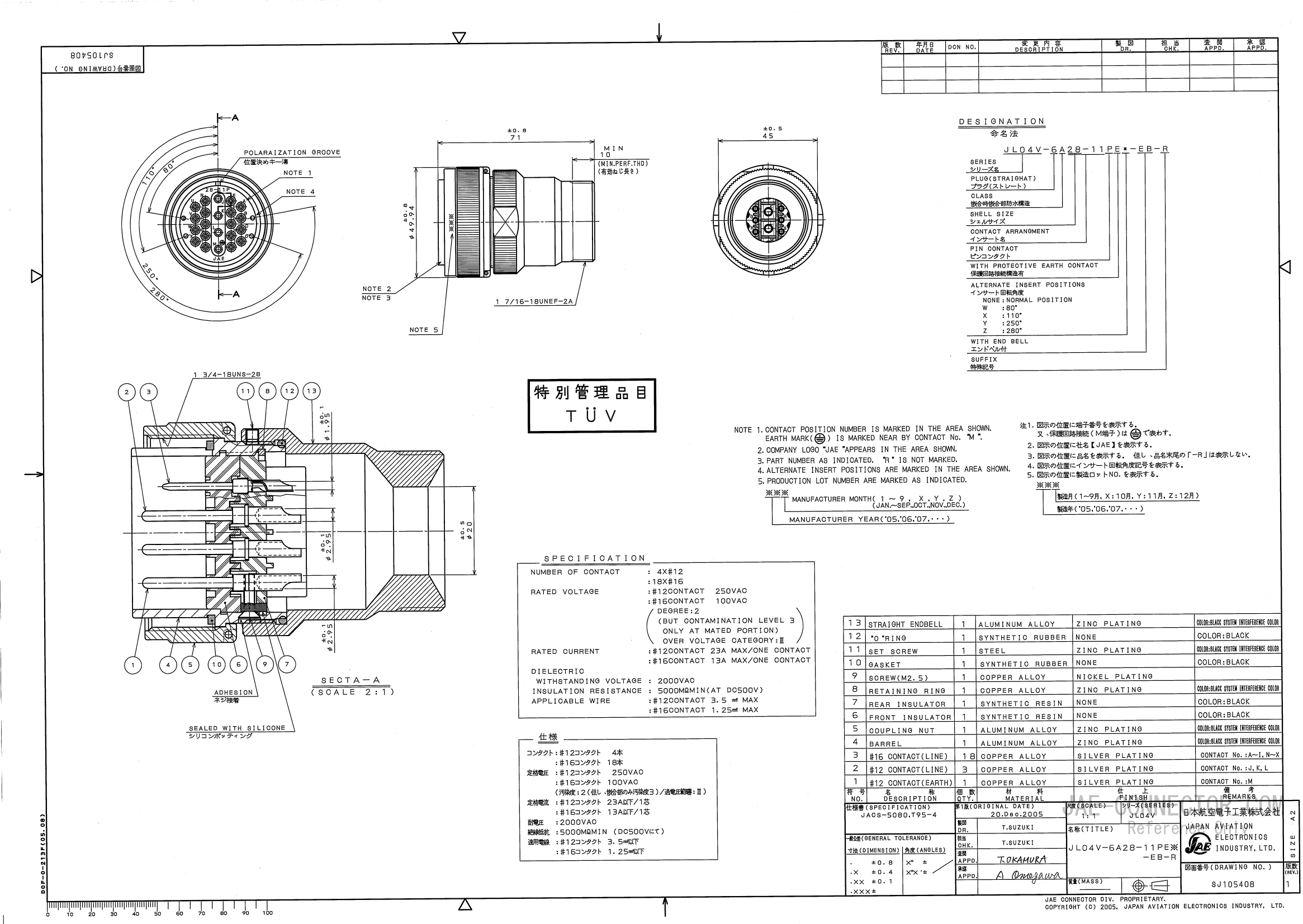

JL04V-6A28-11PEX-EB-R: DescriptionCircular Connector, 22 Contact(s), Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size233KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

JL04V-6A28-11PEX-EB-R Overview

Circular Connector, 22 Contact(s), Male, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	JL04V
Plug information	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Housing size	28
Termination type	SOLDER
Total number of contacts	22

	JL04V-6A28-11PEX-EB-R	JL04V-6A28-11PEW-EB-R	JL04V-6A28-11PEY-EB-R
Description	Circular Connector, 22 Contact(s), Male, Solder Terminal, Plug	Circular Connector, 22 Contact(s), Male, Solder Terminal, Plug	Circular Connector, 22 Contact(s), Male, Solder Terminal, Plug
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown
Back shell type	SOLID	SOLID	SOLID
Body/casing type	PLUG	PLUG	PLUG
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	SILVER	SILVER	SILVER
Contact completed and terminated	SILVER	SILVER	SILVER
Contact point gender	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Manufacturer's serial number	JL04V	JL04V	JL04V
Plug information	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	28	28	28
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	22	22	22
