D
D-sub JS
SUBMINIATURE
CONNECTOR
Right
angle SMT configuration plug and socket
JS
SERIES

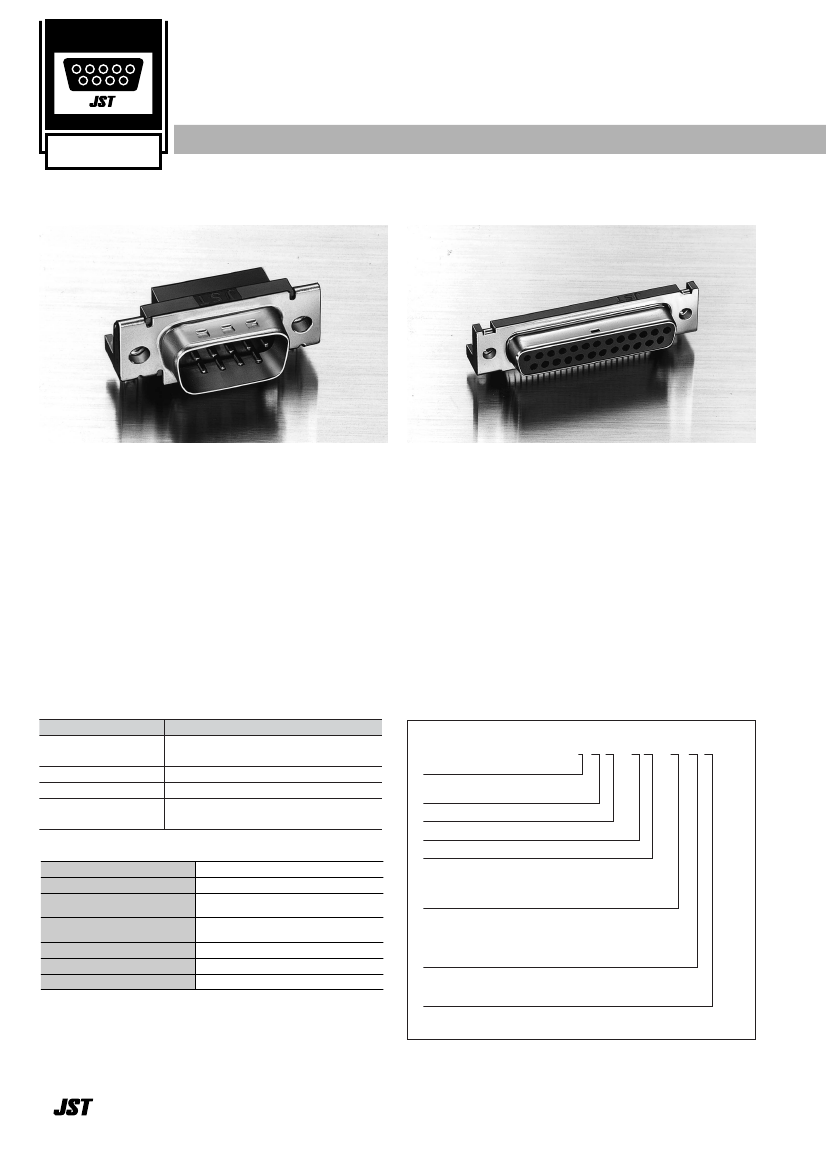

RIGHT ANGLE SMT CONFIGURATION PLUG AND SOCKET ––––––––––––––––––––––
Right angle SMT configuration plug (off-set type)
Right angle SMT configuration socket (normal type)
Features –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
• Mating part is designed to conform to MIL C-24308.
• Reduces the usage of PCB space thanks to thin design.
• As this is of SMT configuration, components can be mounted on
the other side of the PC board.
• Positioning bosses assure secure mounting on the PC board.
• Heat resistant resin is used for the insulator, thus applicable to
various reflow soldering processes.
• Ferrite mounted type is under planning.
Specifications –––––––––––––––––––––––––––––––––––––––––––––––––––––
Materials
Part name
Contact
Insulator
Shell
Metal fixture
Material and Finish
Copper alloy, nickel-undercoated,
Mating part; gold-plated
Solder tail; tin-plated (reflow treatment)
Glass-filled PPS, UL94V-0
Steel, copper-undercoated, nickel-plated
Screw type: Copper alloy, copper-undercoated, nickel-plated
Hook type: Copper alloy, nickel-undercoated, tin/copper alloy-plated
• Shell size: E ... 9-circuits
B ... 25-circuits
• Right angle through hole type: Y
• No. of circuits: 9, 25
Model number identification
JS B Y
—
25 S
—
1A 3F 19
—
13
• Series name
Characteristics
Current rating
Voltage rating
Temperature range
Contact resistance
Insulation resistance
Withstanding voltage
Circuits
1.0A AC, DC
125V AC, DC
-
40˚C to
+
85˚C(including temperature rise in
applying electrical current)
• Connector type S: Socket P: Plug

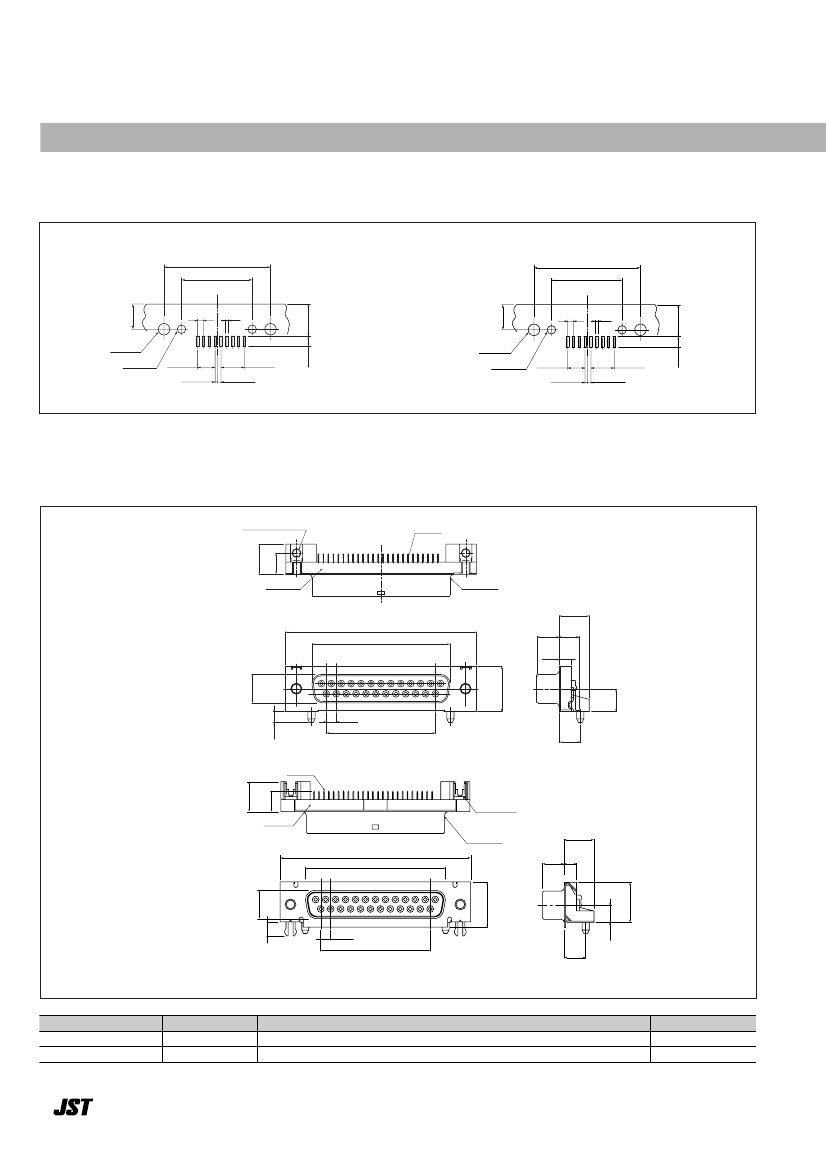

• Connector construction/dimensions
1A ... Standard type
3B ... Off-set type
5B ... Off-set type(with lightening part)
• Kind of metal fixture and lock screw blocks :
3F... •With metal fixture having an M2.5 thread
•Without lock screw blocks, but with a No.4-40UNC thread
6L... •Without grounding adapters with a spring lock device
•Without lock screw blocks, but with a No.4-40UNC thread
• Finish of mating part
10... Gold-plated (flash)
19...0.76micron gold-plated
Initial value/20mΩ max.
After environmental testing/30mΩ max.
500MΩ min.
500V AC/minute
Plug: 9 / Socket: 25
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
