K6BLRD1.53NL352 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> K6BLRD1.53NL352

K6BLRD1.53NL352: DescriptionKEYPAD SWITCH, SPST, MOMENTARY, 0.1A, 30VDC, 3N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size182KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric View All

K6BLRD1.53NL352 Overview

KEYPAD SWITCH, SPST, MOMENTARY, 0.1A, 30VDC, 3N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

K6BLRD1.53NL352 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.232 inch
Actuator stroke	1.4986 mm
Actuator type	PUSHBUTTON
Other features	ROHS COMPLIANT
body width	7.4 mm
body height	6.4 mm
Body length or diameter	10.9 mm
Circuit configuration	1X1
Maximum contact bounce time	1 ms
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Contact function	(N.O.) (N.C.)
Contact resistance	0.05 mΩ
contact time	SNAP ACTION
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	300VDC V
Electrical life	200000 Cycle(s)
illumination	RED LED
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	K6
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	3 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
method of packing	BULK
seal	IP40
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Tin (Sn)
Terminal length	0.11 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

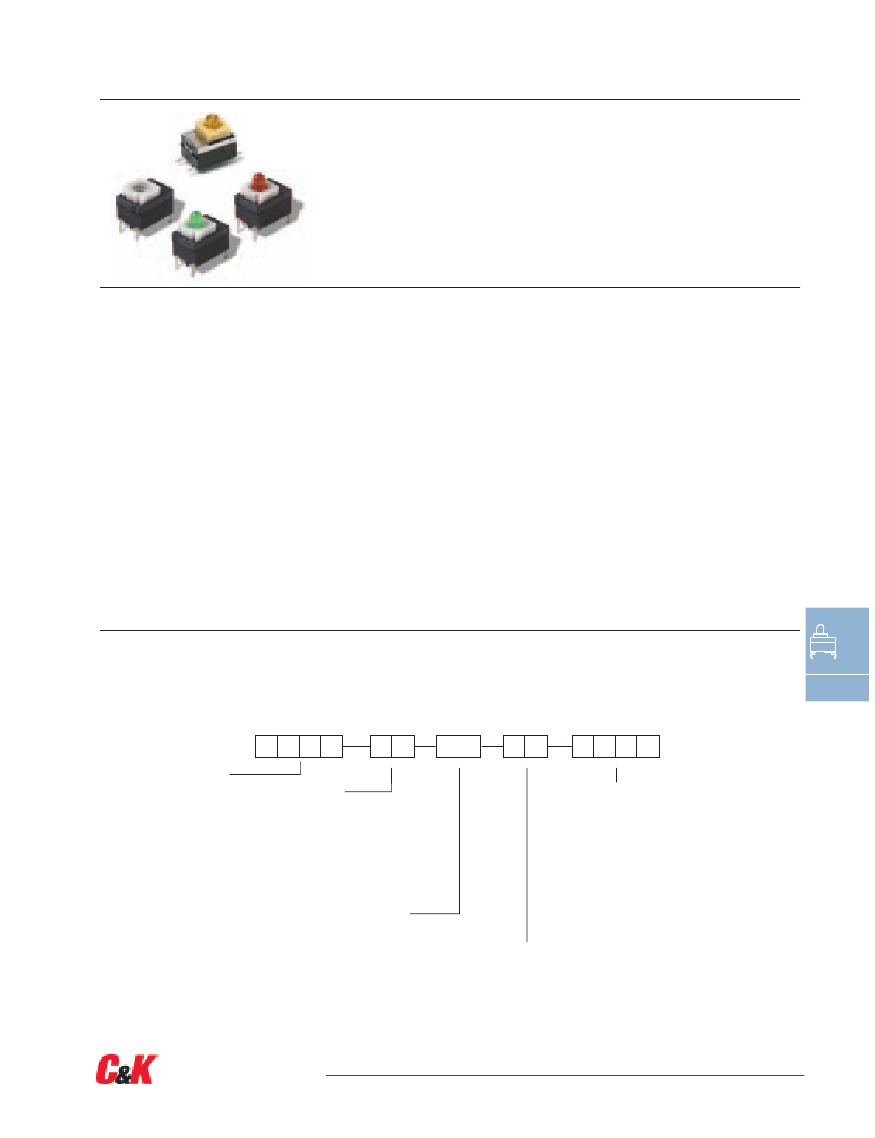

Miniature Key Switches

Features/Benefits

•

Excellent tactile feel

•

Wide variety of LED’s,

travel and actuation forces

Typical Applications

•

Automotive

•

Industrial electronics

•

Computers and network

equipment

•

Designed for low-level

switching

•

Detector version available

•

RoHS compliant

Construction

FUNCTION: momentary action

CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.

DISTANCE BETWEEN BUTTON CENTERS:

min. 7,5 and 11,8 (0.295 and 0.465)

TERMINALS: Snap-in pins, tinned

MOUNTING: Soldered by PC pins, locating pins

PC board thickness: 1,5 (0.0591)

Electrical

SWITCHING POWER MIN./MAX.: 0.02 mW / 3 W DC

SWITCHING VOLTAGE MIN./MAX.: 2 V DC / 30 V DC

SWITCHING CURRENT MIN./MAX.: 10 µA /100 mA DC

DIELECTRIC STRENGTH (50 Hz)

1) 2)

≥

300 V

OPERATING LIFE:

≥

2 x 10

operations

≥1

X 10

operations for SMT version

CONTACT RESISTANCE: Initial

≤

50 mΩ

INSULATION RESISTANCE:

≥

Ω

BOUNCE TIME:

≤

1 ms

Operating speed 100 mm/s (3.94/s)

Mechanical

TOTAL TRAVEL/SWITCHING TRAVEL: 1,5/0,9 (0.059/0.035)

PROTECTION CLASS: IP 40 according to DIN/IEC 529

1) Voltage rise: 300 V/s

2) According to DIN 41640; IEC 512-2

3) Higher values upon request

Environmental

OPERATING TEMPERATURE: -40˚C to 85˚C.

STORAGE TEMPERATURE: -40˚C to 95˚C.

Packaging

THT: bulk in boxes of 500 pieces

SMT: bulk in boxes of 500 pieces

reels of 500 pieces (with LED) or 750 pieces (without LED)

Process

SOLDERABILITY:

THT: wave soldering, compatible with lead free soldering profile

Hand soldering, 350˚C for 3s

SMT: not compatible with lead free reflow profile

245˚C for 5s

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select

desired option from each category and place it in the appropriate box.

Note: Some of the configurations may not be available or could require some development.

Key Switches

Series

K6B

K6BL

with LED

K6S

SMT

K6SL

SMT with LED

1.5

LED*

NONE

Models without LED

Green

Yellow

Orange

Red

White

Blue

Travel

1.5

1,5mm (0.059)

Standard LED Code

NONE

Models without LED

L306

Green

L327

Yellow

L315

Orange

L352

Red

L302

White

L328

Blue

Operating Force

3 N 300 grams

5 N 500 grams

2N OD

2 N 200grams without snap-point

* Additional LED colors available by request.

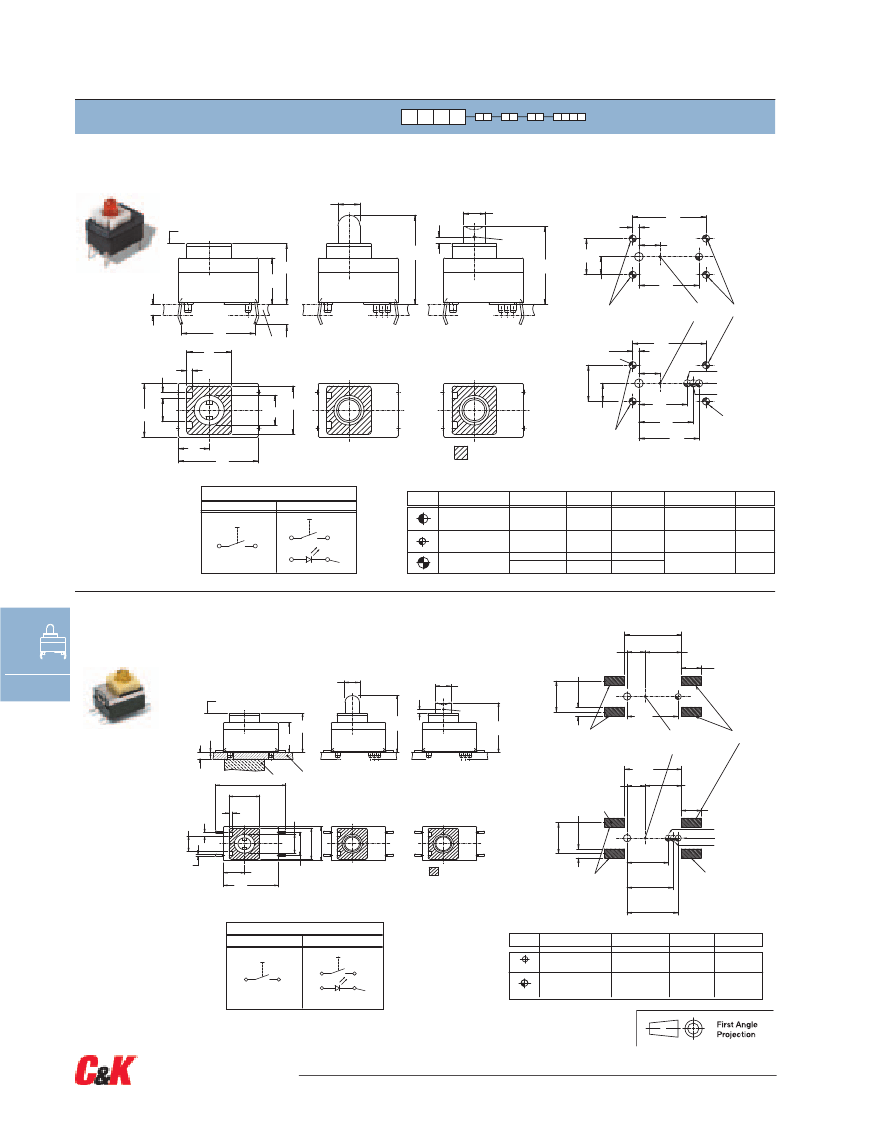

Dimensions are shown: mm

Specifications and dimensions subject to change

D–7

www.ck-components.com
