FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 6 to 30 circuits
s
For 0.30mm thick FFC/FPC
s
Metal solder tabs provide PCB hold-down and
strain relief for SMT tails
Reference Information
Packaging: Embossed tape
UL File No.: E29179
CSA File No.: LR19980
Designed In: Millimeters
Electrical
Voltage: 50V
Current: 0.5A
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 500V AC/1 min.
Insulation Resistance: 100 M
Ω
min.
Physical
Housing: 4/6 nylon, UL 94V-0
Actuator: PPS, UL 94V-0
Contact: Phosphor Bronze
Plating: Tin/Lead
Solder Tabs: Copper Alloy, Tin/Lead plating
Operating Temperature: -20 to +85˚C
1.00mm (.039") Pitch
FFC/FPC Connector
52271
Right Angle, SMT, ZIF
Bottom Contact Style
G

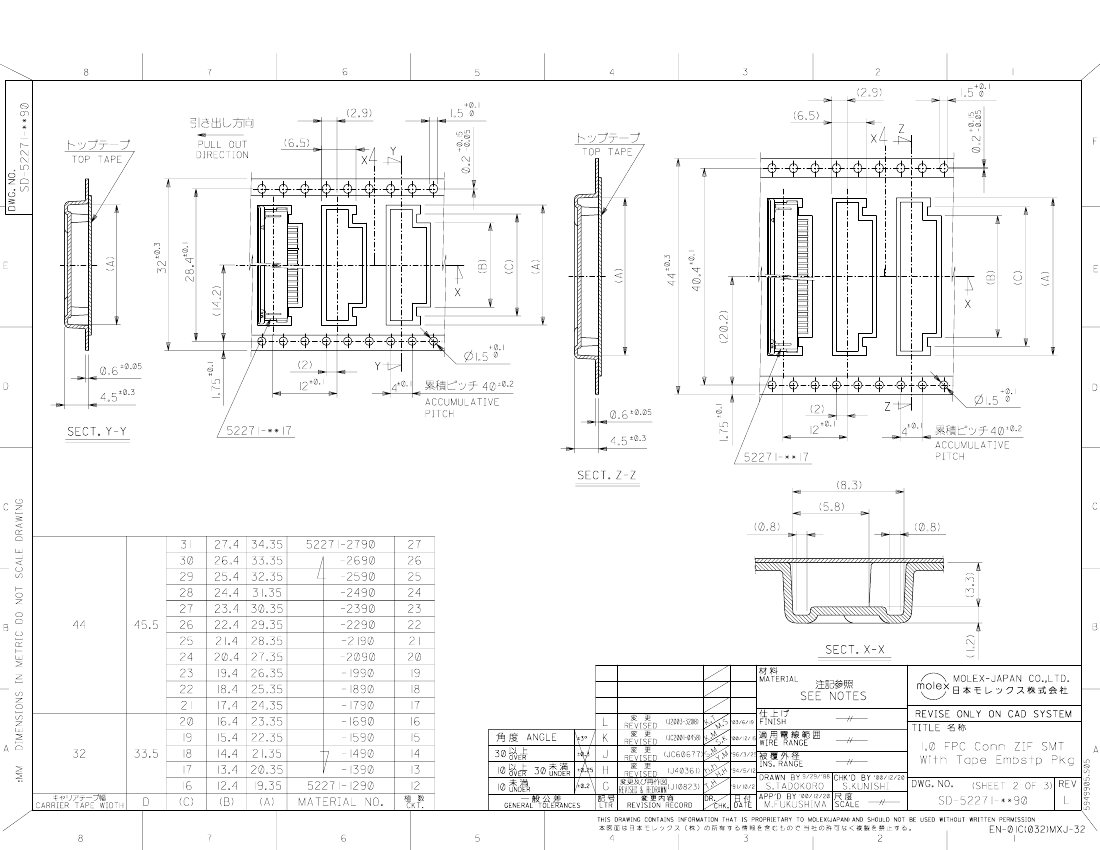

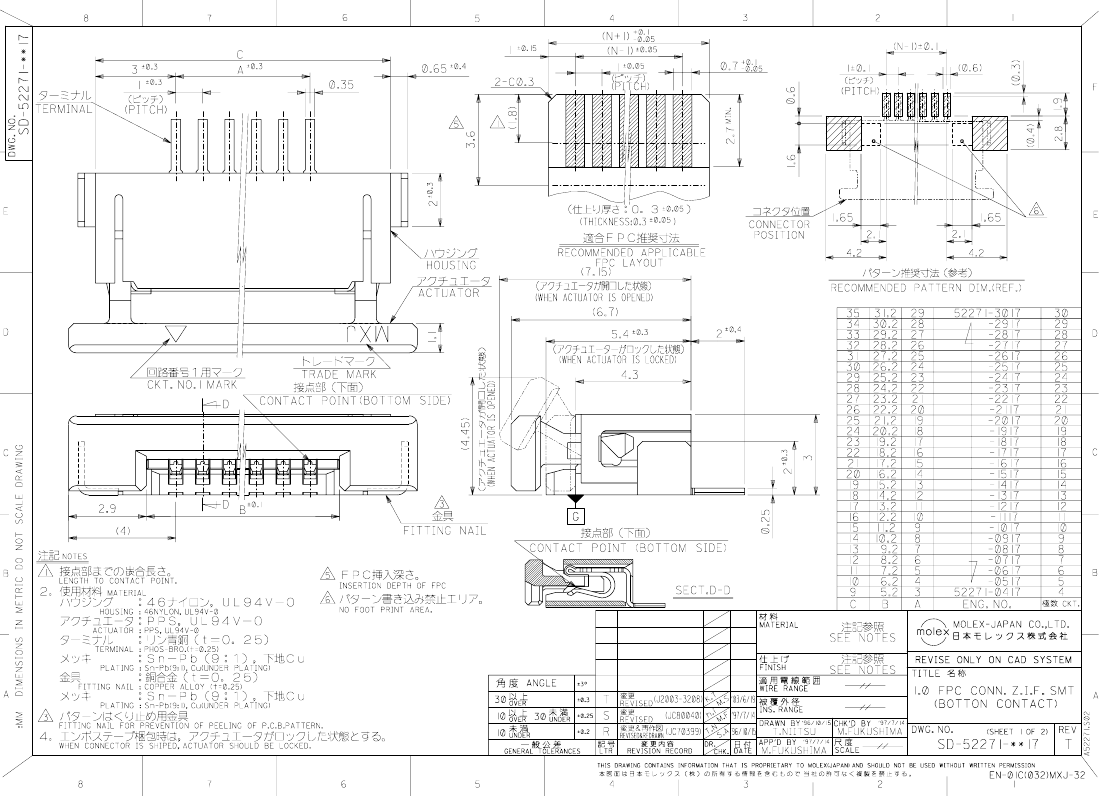

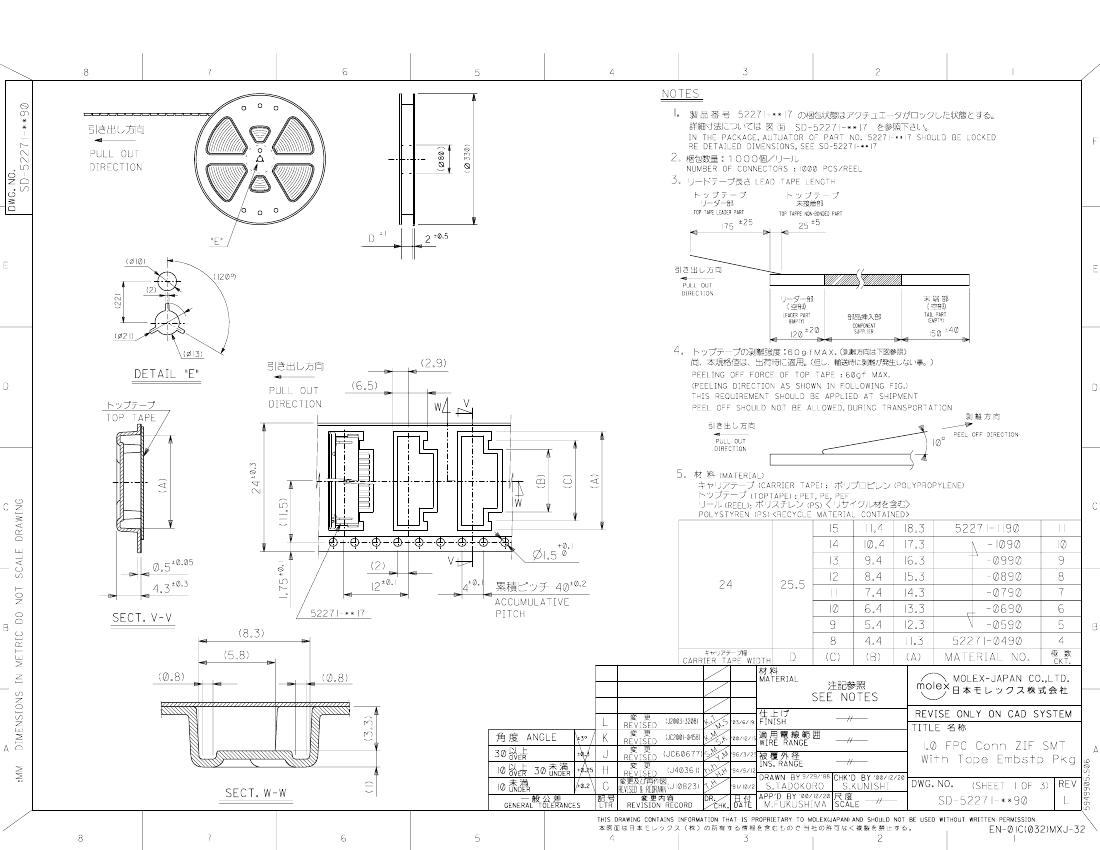

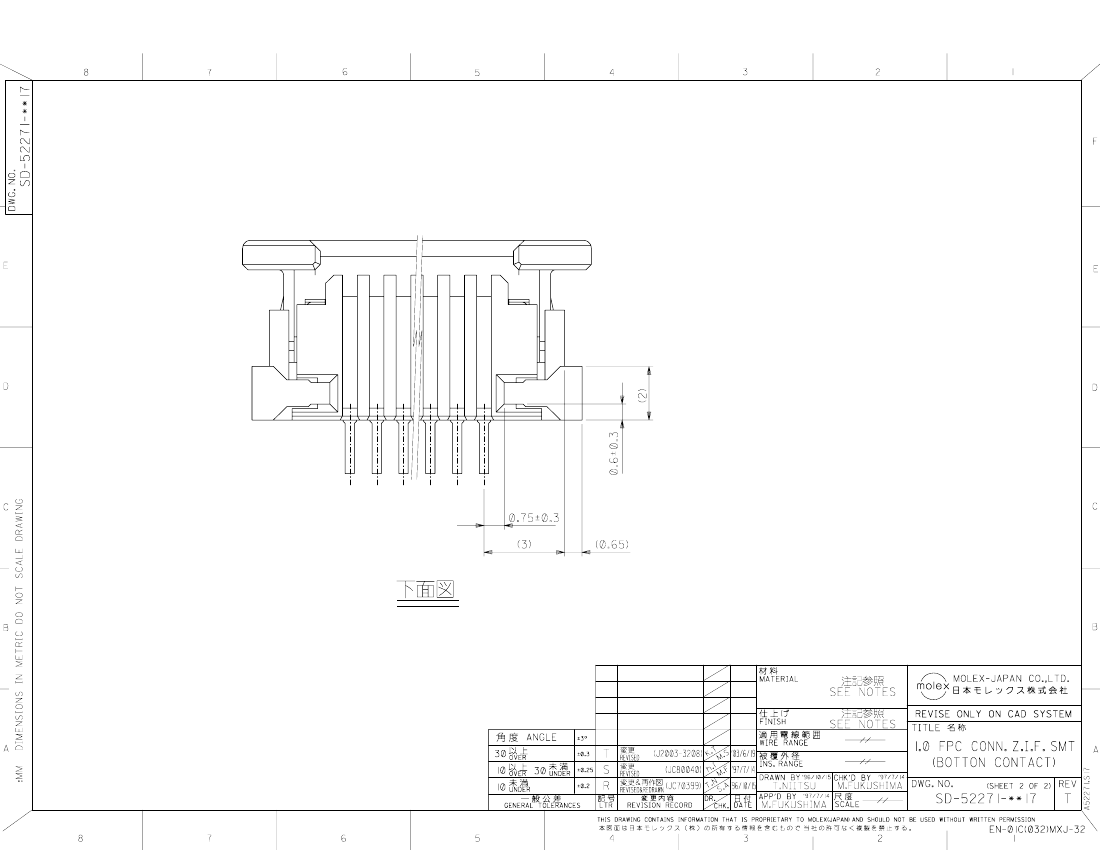

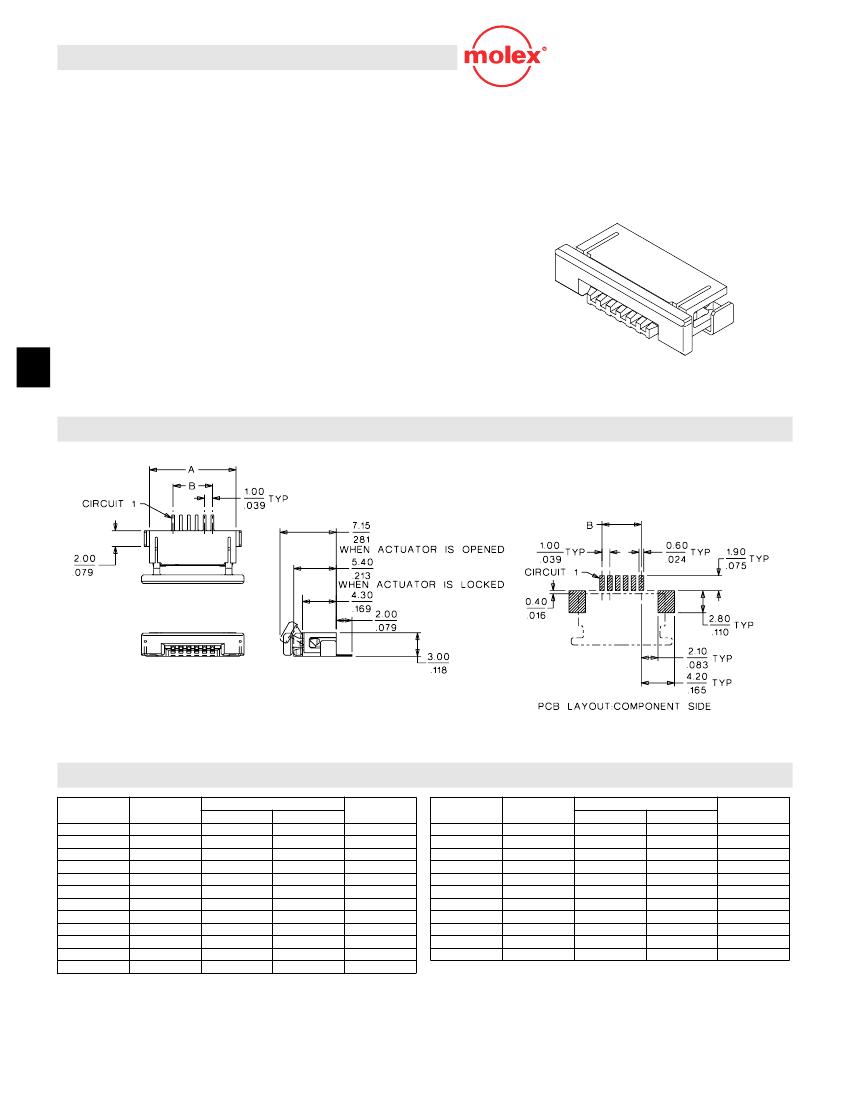

CATALOG DRAWING (FOR REFERENCE ONLY)
FFC/FPC Connectors
ORDERING INFORMATION AND DIMENSIONS
Circuits
6
7
8
9
10
11
12
13
14
15
16
17
Order No.
52271-0690
52271-0790
52271-0890
52271-0990
52271-1090
52271-1190
52271-1290
52271-1390
52271-1490
52271-1590
52271-1690
52271-1790
Dimension
A
11.00 (.433)
12.00 (.472)
13.00 (.511)
14.00 (.551)
15.00 (.590)
16.00 (.629)
17.00 (.669)
18.00 (.708)
19.00 (.748)
20.00 (.787)
21.00 (.826)
22.00 (.866)
B
5.00 (.197)
6.00 (.236)
7.00 (.275)
8.00 (.314)
9.00 (.354)
10.00 (.393)
11.00 (.433)
12.00 (.472)
13.00 (.511)
14.00 (.551)
15.00 (.590)
16.00 (.629)
Carrier
Tape Width
24.00
24.00
24.00
24.00
24.00
24.00
32.00
32.00
32.00
32.00
32.00
44.00
(.945)
(.945)
(.945)
(.945)
(.945)
(.945)
(1.260)
(1.260)
(1.260)
(1.260)
(1.260)
(1.732)
Circuits
18
19
20
22
23
24
25
26
27
28
30
Order No.
52271-1890
52271-1990
52271-2090
52271-2290
52271-2390
52271-2490
52271-2590
52271-2690
52271-2790
52271-2890
52271-3090
Dimension
A
B
23.00 (.905)
17.00 (.669)
24.00 (.944)
18.00 (.708)
25.00 (.984)
19.00 (.748)
27.00 (1.062)
21.00 (.827)
28.00 (1.102)
22.00 (.866)
29.00 (1.141)
23.00 (.906)
30.00 (1.181)
24.00 (.945)
31.00 (1.220)
25.00 (.984)
32.00 (1.259)
26.00 (1.020)
33.00 (1.299)
27.00 (1.060)
35.00 (1.377)
29.00 (1.140)
Carrier
Tape Width
44.00
44.00
44.00
44.00
44.00
44.00
44.00
44.00
44.00
56.00
56.00
(1.732)
(1.732)
(1.732)
(1.732)
(1.732)
(1.732)
(1.732)
(1.732)
(1.732)
(2.205)
(2.205)
Note: For cable specification dimensions, see cable pages at end of section
