890-803/011-000 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 890-803/011-000

890-803/011-000: DescriptionBarrier Strip Terminal Block; CategoryThe connector terminals; File Size336KB，5 Pages; ManufacturerWAGO; Websitehttps://www.wago.com/

Download Datasheet Parametric View All

890-803/011-000 Overview

Barrier Strip Terminal Block

890-803/011-000 Parametric

Parameter Name	Attribute value
Maker	WAGO
Reach Compliance Code	unknown
ECCN code	EAR99
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

890-803/011-000 Preview

Printview: Socket; for PCBs; ANGLED TYPE; 2 solder pins/pole; 3-pole; Coding A - Item No.: 890-803/011-

000

Socket; for PCBs; ANGLED TYPE; 2 solder pins/pole; 3-pole;

Coding A

Item No.: 890-803/011-000

Socket; for PCBs; ANGLED TYPE; 2 solder pins/pole; 3-pole; Coding A

Marking

Business data

Supplier

Item no.

GTIN / EAN

Content

Order amount

Customer item number

Notes

WAGO

890-803/011-000

4055143370035

100

Note:All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and

distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked.

Additional locking levers are only required for “flying leads” (plug/socket).All WINSTA® components are 100%

protected against mismating in terms of:a.) plugging different number of polesb.) plugging when turned by 180°c.)

plugging when laterally staggeredd.) plugging one poleNote on Continuous Service Temperature:-35 °C … +85

°CPVC cable for temperatures 70 °C (including halogen-free)Insulating parts for temperatures 105 °C

Technical data

Miscellaneous

No. of poles

Pin spacing

Total number of potentials

Potential marking

4.4 mm / 0.173 in %

L ⏚ N

WAGO Kontakttechnik GmbH & Co. KG

Printview: Socket; for PCBs; ANGLED TYPE; 2 solder pins/pole; 3-pole; Coding A - Item No.: 890-803/011-

000

Technical data

Color

Coding

Rated voltage (III / 3) [V]

Rated surge voltage (III / 3) [kV]

Nominal current [A]

Number of levels

Design

Solder pin arrangement

Solder pin length [mm]

Drilled hole diameter (tolerance) [mm]

Mating force of a plug-in connection

Unmating force of a plug-in connection

Retention force of a plug-in connection

Insulating material

Flammability rating per UL 94

Contact material

Processing temperature

Fire load [MJ]

Weight [g]

Width

Height

Height from the surface

Length

Marking

black

250 [V]

4 [kV]

16 [A]

angled

2 in-line solder pins/pole

3.5 [mm]

1.3(+ 0.1 ... - 0.1) [mm]

approx. 20 … 70 N (depending on pole number)

when unlocked: approx. 20 … 70 N (depending on pole

number)

when locked: > 80N

Polyamide 66 (PA 66)

Copper or copper alloy, surface-treated

-5°C ... +40°C

0.062 [MJ]

3.49 [g]

14.8 mm / 0.583 in

15.7 mm / 0.618 in

12.2 mm / 0.48 in

28.4 mm / 1.118 in

L Erdung N

WAGO Kontakttechnik GmbH & Co. KG

Printview: Socket; for PCBs; ANGLED TYPE; 2 solder pins/pole; 3-pole; Coding A - Item No.: 890-803/011-

000

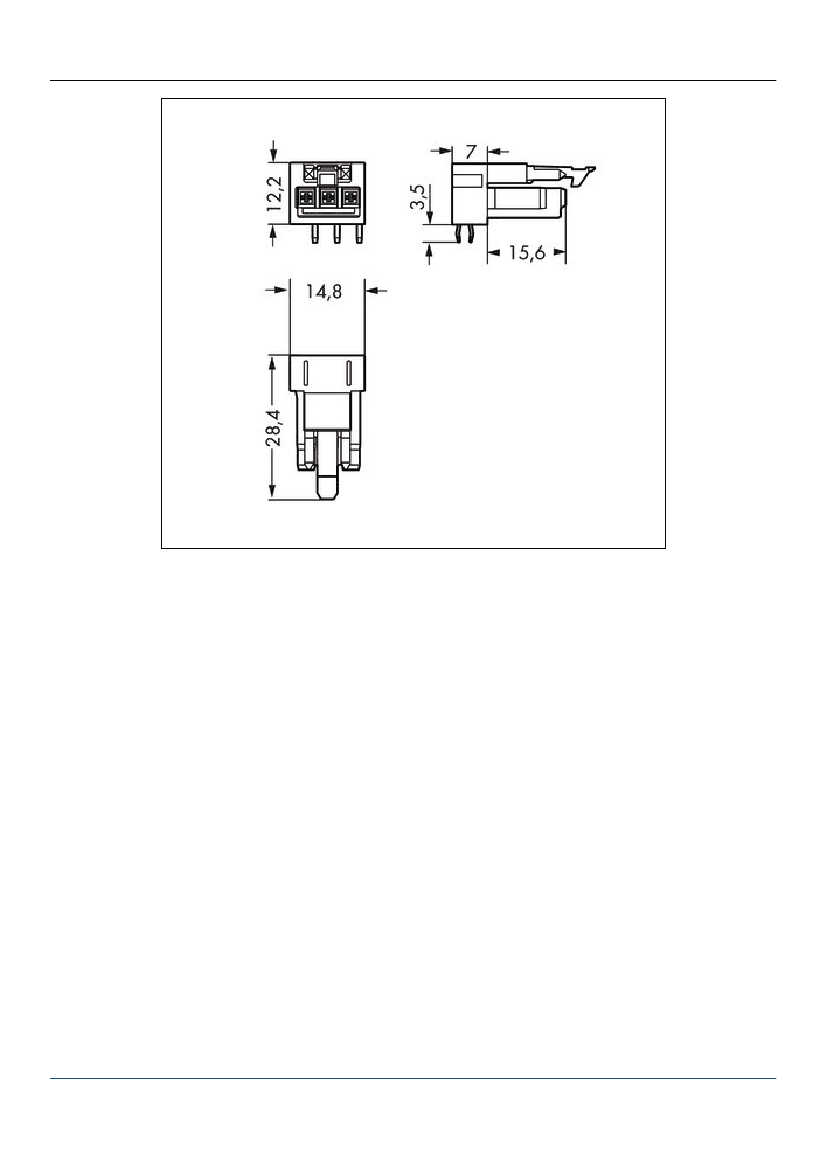

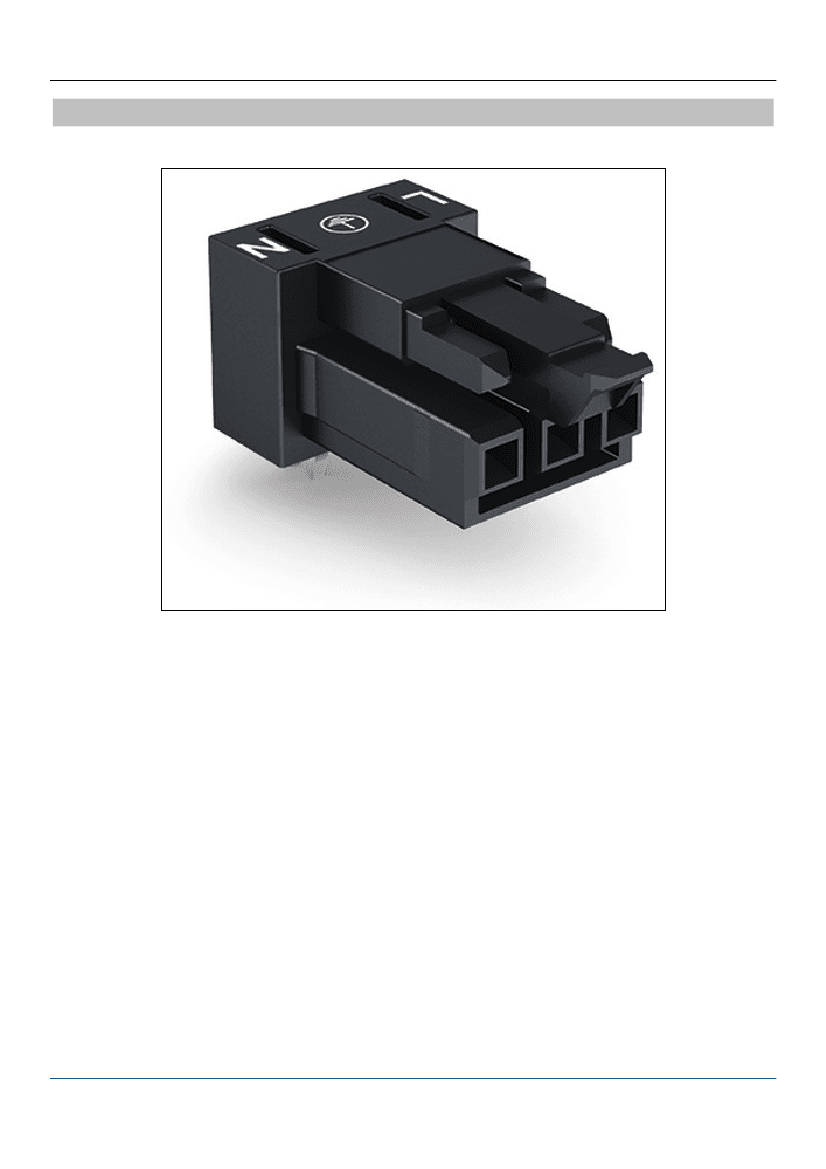

Images & drawings

WAGO Kontakttechnik GmbH & Co. KG

Printview: Socket; for PCBs; ANGLED TYPE; 2 solder pins/pole; 3-pole; Coding A - Item No.: 890-803/011-

000

WAGO Kontakttechnik GmbH & Co. KG

Printview: Socket; for PCBs; ANGLED TYPE; 2 solder pins/pole; 3-pole; Coding A - Item No.: 890-803/011-

000

Address

WAGO Kontakttechnik GmbH & Co. KG

Hansastr. 27

32423 Minden

Telefon: 0571/887-0

Fax: 0571/887-169

http://www.wago.com

Technische Änderungen und Irrtümer vorbehalten.

WAGO Kontakttechnik GmbH & Co. KG

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
