TC9809FW datasheet, PDF - EEWORLD Datasheet

TC9809FW: DescriptionIC EE PLD, 29 ns, PDSO20, 0.300 INCH, PLASTIC, MS-013AC, SOL-20, Programmable Logic Device; CategoryProgrammable logic devices Programmable logic; File Size205KB，10 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

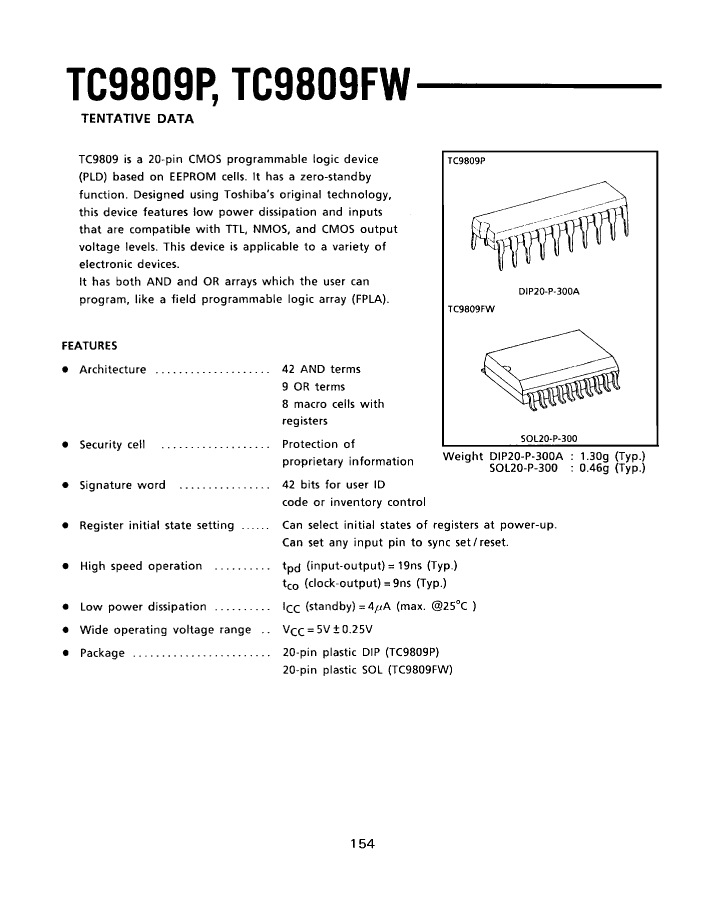

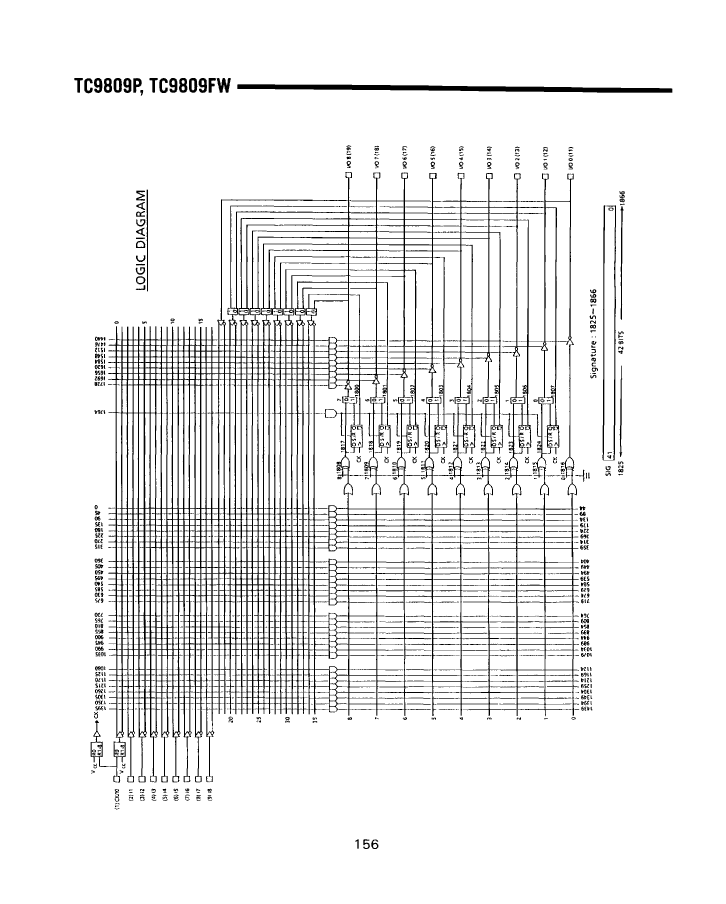

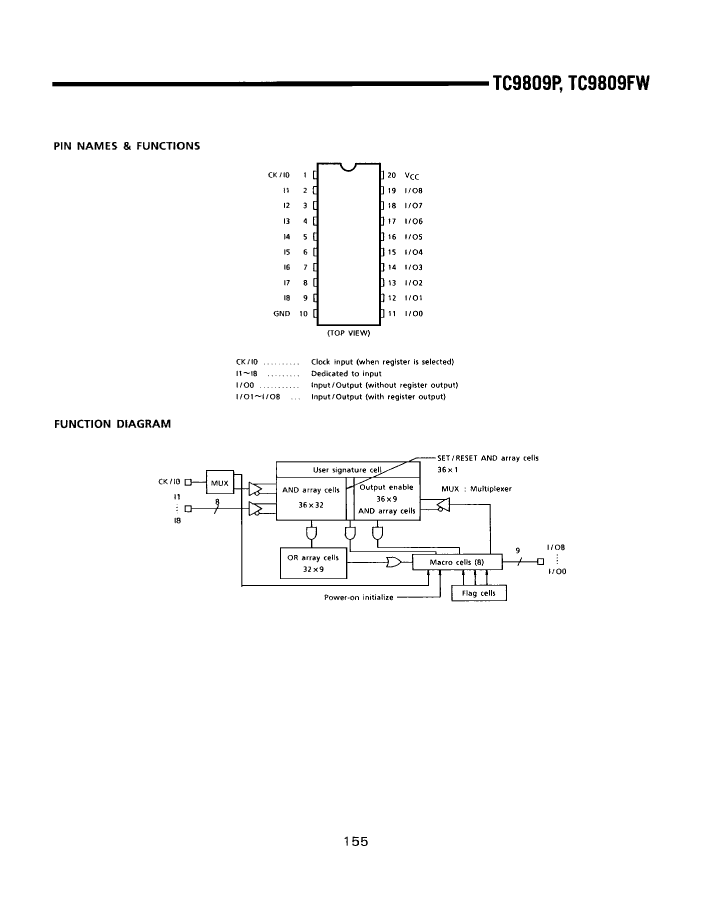

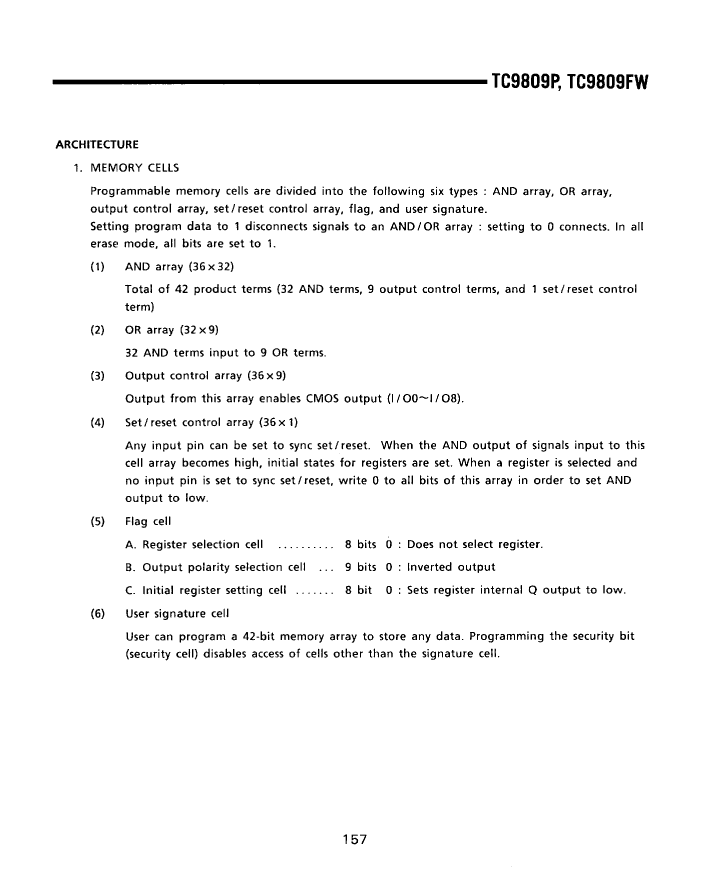

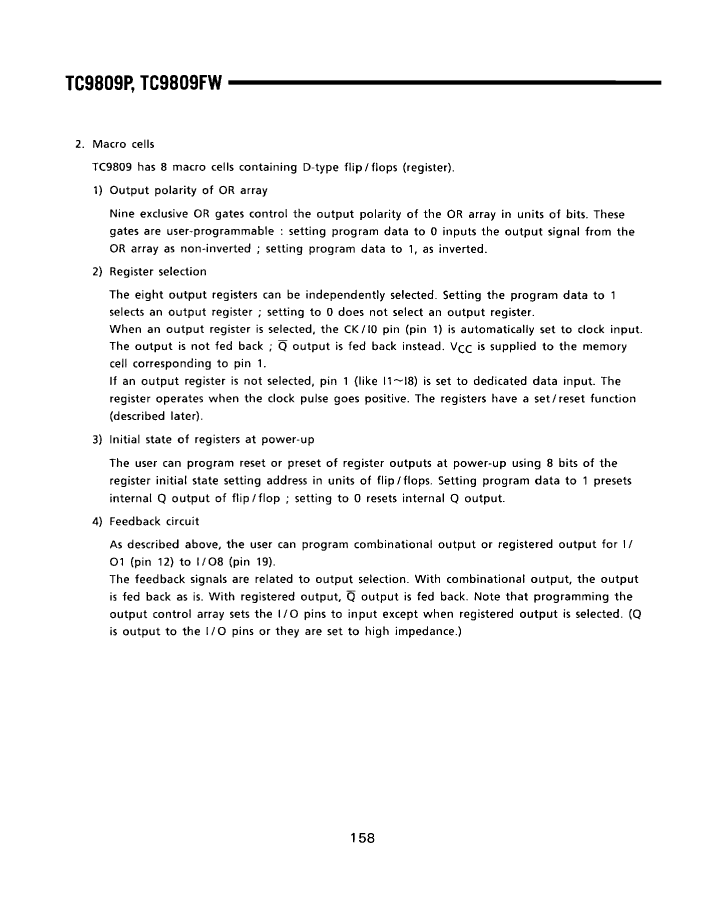

TC9809FW Overview

IC EE PLD, 29 ns, PDSO20, 0.300 INCH, PLASTIC, MS-013AC, SOL-20, Programmable Logic Device

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	0.300 INCH, PLASTIC, MS-013AC, SOL-20
Contacts	20
Reach Compliance Code	unknown
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; ZERO-STANDBY FUNCTION
maximum clock frequency	22 MHz
JESD-30 code	R-PDSO-G20
length	12.8 mm
Dedicated input times	8
Number of I/O lines	9
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8 DEDICATED INPUTS, 9 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Programmable logic type	EE PLD
propagation delay	29 ns
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

	TC9809FW	TC9809P
Description	IC EE PLD, 29 ns, PDSO20, 0.300 INCH, PLASTIC, MS-013AC, SOL-20, Programmable Logic Device	IC EE PLD, 29 ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20, Programmable Logic Device
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	DIP
package instruction	0.300 INCH, PLASTIC, MS-013AC, SOL-20	0.300 INCH, PLASTIC, DIP-20
Contacts	20	20
Reach Compliance Code	unknown	unknown
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; ZERO-STANDBY FUNCTION	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; ZERO-STANDBY FUNCTION
maximum clock frequency	22 MHz	22 MHz
JESD-30 code	R-PDSO-G20	R-PDIP-T20
length	12.8 mm	24.6 mm
Dedicated input times	8	8
Number of I/O lines	9	9
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
organize	8 DEDICATED INPUTS, 9 I/O	8 DEDICATED INPUTS, 9 I/O
Output function	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Programmable logic type	EE PLD	EE PLD
propagation delay	29 ns	29 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	4.45 mm
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.62 mm
