SPECIFICATION FOR APPROVAL
REF : 20091116-C
PROD.
NAME
ABC'S DWG NO.
SN3010□□□□L□-□□□
PAGE: 1
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
A
B
C
D
E
F
:
:
:
:
:
:
3.0
±
0.10
3.0
±
0.10
1.0 max.
2.7 typ.
0.9
±
0.20
1.2
±
0.20
m/m
m/m
m/m
m/m
m/m
m/m
C
B
1.0
D
1.2
1.0
E
F
E
( PCB Pattern )
Ⅱ﹒SCHEMATIC
DIAGRAM：
a
d
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite core
b﹒Wire：Enamelled Copper Wire ( class H )
c﹒Terminal：Ni/Cu/Ag alloy with Sn
d﹒Coating：Magnetic Epoxy resin
e﹒Remark：Products comply with RoHS'
requirements
250
Temperature (
℃
)
200
150
100
50
40~90sec max.
c
Peak Temp：255℃ max.
Max time above 217℃
：90sec
max.
Temperature
Rising Area
+3.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 180sec
Reflow Area
+1.5 ~ 3.0
℃
Forced Cooling Area
6.0
℃
/ sec max.
Peak Temperature:
250 +5/-10
℃
,5sec max.
2.7
b
217℃
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Storage Temp.：-40℃ ----+85℃
b﹒Operating Temp.：-40℃----+125℃
c﹒Resistance To Solder Heat：260℃.10 Secs.
0
50
100
150
Time ( seconds )
200
250
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20091116-C
PROD.
NAME
ABC'S DWG NO.
SN3010□□□□L□-□□□
PAGE: 2
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅴ﹒ELECTRICAL
CHARACTERISTICS：
Inductance
@0.1V/1MHz
(
μH
)
SN30101R0YL□-□□□
SN30101R5YL□-□□□
SN30102R2ML□-□□□
SN30103R3ML□-□□□
SN30104R7ML□-□□□
SN30106R8ML□-□□□
SN3010100ML□-□□□
SN3010150ML□-□□□
SN3010220ML□-□□□
SN3010330ML□-□□□
SN3010470ML□-□□□
1.0
±
30%
1.5
±
30%
2.2
±
20%
3.3
±
20%
4.7
±
20%
6.8
±
20%
10.0
±
20%
15.0
±
20%
22.0
±
20%
33.0
±
20%
47.0
±
20%
typ.
0.065
0.080
0.095
0.160
0.190
0.300
0.450
0.740
0.980
1.550
2.000
RDC
(
Ω
)
max.
0.078
0.096
0.114
0.192
0.228
0.360
0.540
0.888
1.176
1.860
2.400
SRF
( MHz )
min.
180
140
100
80
60
50
45
35
25
24
19
Irms
(A)
typ.
1.700
1.650
1.450
1.300
1.100
0.850
0.720
0.560
0.500
0.415
0.320
Isat
(A)
typ.
1.950
1.600
1.450
1.050
0.950
0.760
0.610
0.480
0.420
0.340
0.270
DWG No.
1).
□：Packaging
information
…
A：Bulk
2). Irms base on Temp. rise 40
℃
typ.
3). Isat base on
△
L/L0A=30% typ.
B：Taping Reel
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20091116-C
PROD.
NAME
PAGE: 3
SMD POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SN3010□□□□L□-□□□

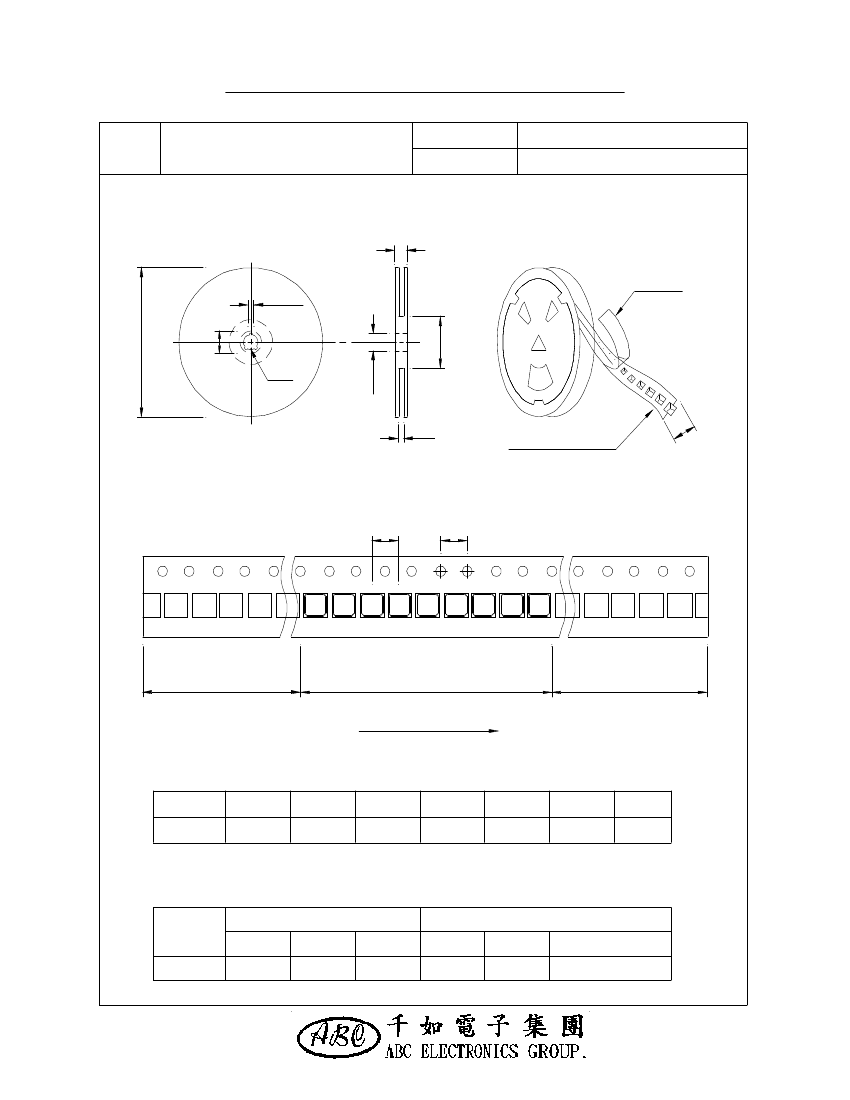

Ⅵ﹒PACKAGING
INFORMATION
( 1 ) Configuration
T
Cover tape
2.0±0.5
A
∮
C
∮
C
N
B
G
D
Embossed carrier
※
Carrier tape width : D
End
P:4 m/m
4 m/m
Start
Leadr
no component
280 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
( 2 ) Dimensions
Style
07 - 08
A
178
B
21±0.8
C
13
D
8
G
+0
10
N
-0
50
Unit:m/m
T
12.5
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
SN3010
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
2000
500
07 - 08
80,000
17.5
42 x 41 x 24
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20091116-C
PROD.
NAME
ABC'S DWG NO.
SN3010□□□□L□-□□□
PAGE: 4
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅶ﹒DWGING
NUMBER EXPRESSION：
S
N
3
0
1
0
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
Inner Package
T.B.D.
T / R ( Reel package )
Inner Package Q'TY
T.B.D.
2000 pcs
Remark
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20091116-C
PROD.
NAME
ABC'S DWG NO.
PAGE: 5
SN3010□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅷ﹒RELIABILITY
TEST：
Test item
Specification
Test condition
Preheat : 150±25
℃
for 60 seconds.
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5℃
Flux : Rosin
Dip time : 4±1 seconds
Solderability
More than 90% of the
terminal electrode
Shall be covered
With fresh solder.
Thermal shock test
( Temp. cycle )
Electrical oharacteristics shall
not change more
than
±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-40
℃
30 minutes
+125
℃
30 minutes
Humidity test
Temperature : 40±2℃
Humidity : 90~95%
Applied current : Per spec.
Time : 500 hours
High temp.
Resistance test
Temperature : 125±2℃
Applied current : Per spec.
Time : 500 hours
AR-001A
