BG5305S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BG5305S

BG5305S: DescriptionSingle Color LED, Green, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size399KB，21 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

BG5305S Overview

Single Color LED, Green, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2

BG5305S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
color	GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.05 A
Maximum forward voltage	2.5 V
Lens type	WATER CLEAR
Nominal luminous intensity	12.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7.6 mm
method of packing	BULK
peak wavelength	555 nm
Maximum reverse voltage	4 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.5 mm
perspective	30 deg

Preview

Download Datasheet

View All

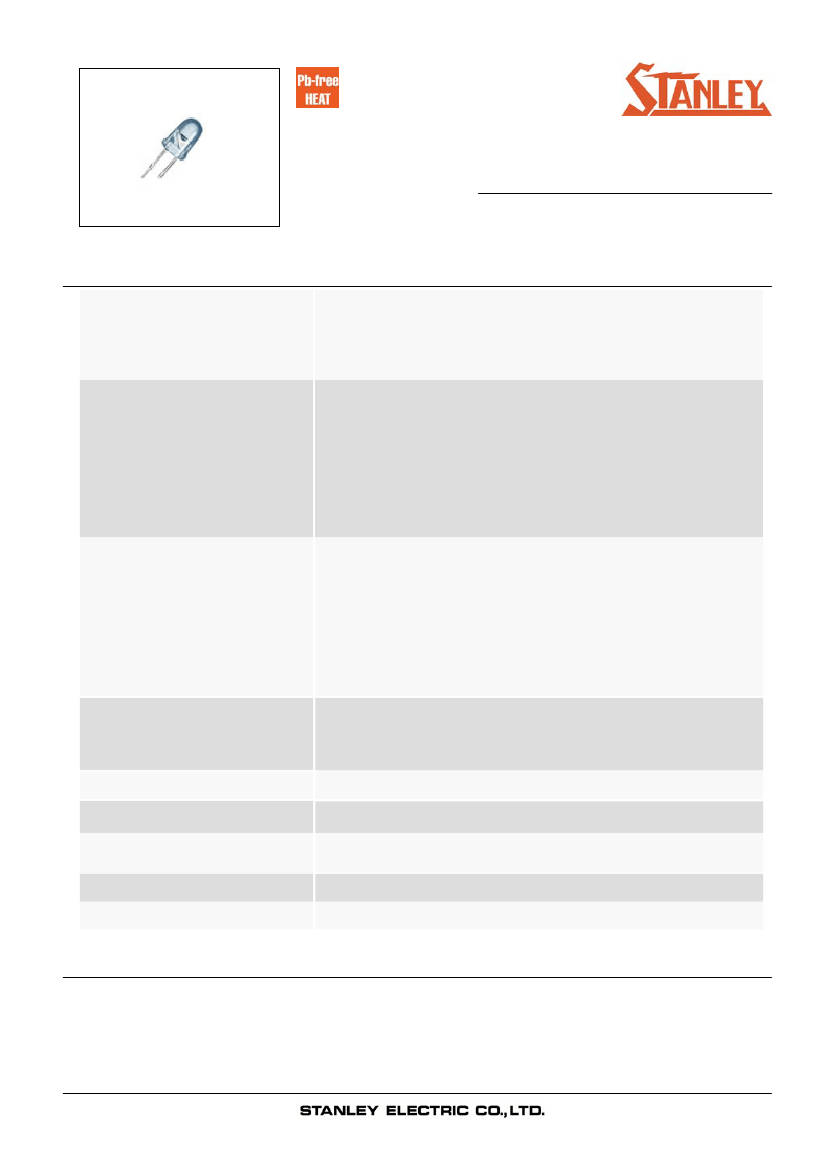

5365S Series

Features

Package

φ5

Round shape type,

YPY,FY

: Pale Yellow Clear epoxy

: Pale Orange Clear epoxy

: Pale Red Clear epoxy

・Outer

Dimension

φ5

Round shape type

・Operation

temperature range.

Storage Temperature

:-40℃½100℃

Operating Temperature

:-40℃½85℃

・No

lead package and lead–free soldering compatible

・RoHS

compliant

Single Color High Brightness

φ5

Type

Product features

Dominant wavelength

Yellow Green

Yellow

Orange

Red

572nm (YPY)

590nm (FY)

605nm (FA)

626nm (FR)

Half Intensity Angle

YPY,FY,FA,FR

: 45 deg.

Die materials

Rank grouping parameter

Soldering methods

ESD

Packing

YPY,FY,FA,FR : AlGaInP

Sorted by luminous intensity per rank taping

TTW (Through The Wave) soldering and manual soldering

AlGaInP : More than 2kV(HBM)

Bulk : 200pcs(MIN.)

Recommended Applications

Amusement Equipment, Electric Household Appliances, OA/FA, Other General Applications

2005.7.29

Page 1

BG5305S Related Products

	BG5305S	EAY5305S
Description	Single Color LED, Green, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown
color	GREEN	YELLOW
color@wavelength	Green	Yellow
Configuration	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A
Maximum forward voltage	2.5 V	2.5 V
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	12.0 mcd	45.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	7.6 mm	7.6 mm
method of packing	BULK	BULK
peak wavelength	555 nm	580 nm
Maximum reverse voltage	4 V	4 V
shape	ROUND	ROUND
size	5 mm	5 mm
surface mount	NO	NO
T code	T-1 3/4	T-1 3/4
Terminal pitch	2.5 mm	2.5 mm
perspective	30 deg	35 deg
