200HFR40PSV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 200HFR40PSV

200HFR40PSV: DescriptionRectifier Diode, 1 Phase, 1 Element, 200A, 400V V(RRM), Silicon, DO-205AC; CategoryDiscrete semiconductor diode; File Size152KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

200HFR40PSV Overview

Rectifier Diode, 1 Phase, 1 Element, 200A, 400V V(RRM), Silicon, DO-205AC

200HFR40PSV Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-H1
Reach Compliance Code	unknow
Other features	HIGH SURGE CAPABILITY
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-205AC
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	4610 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	200 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Base Number Matches	1

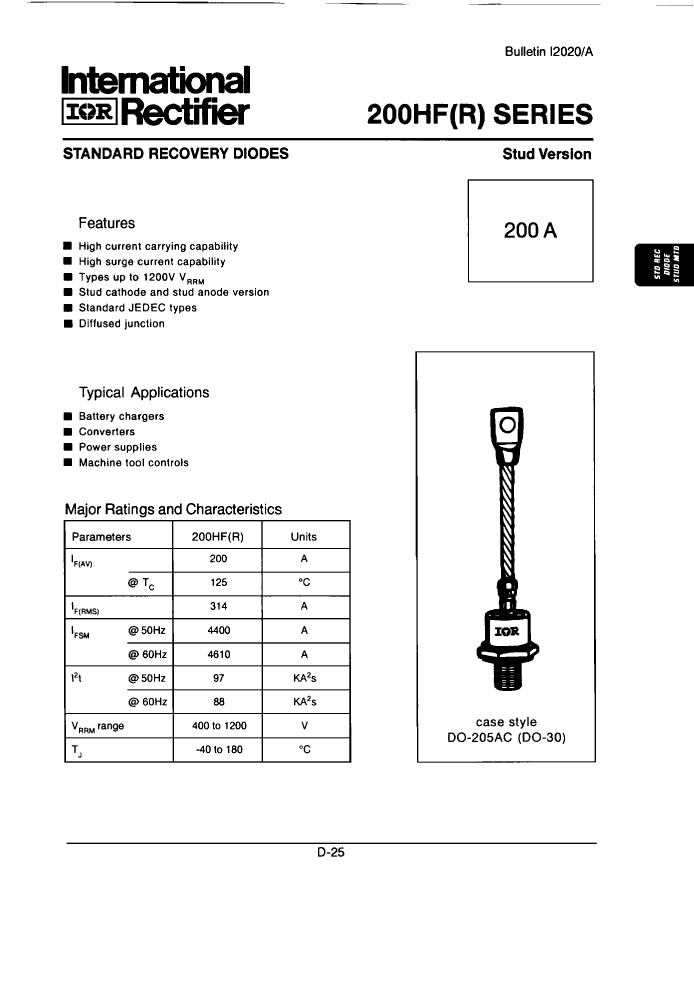

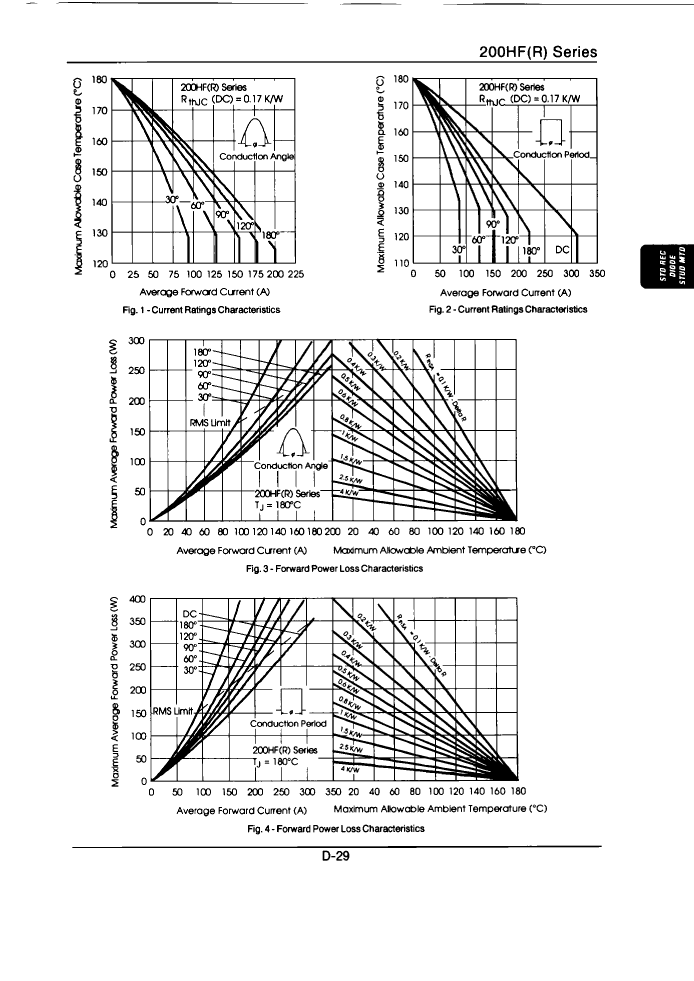

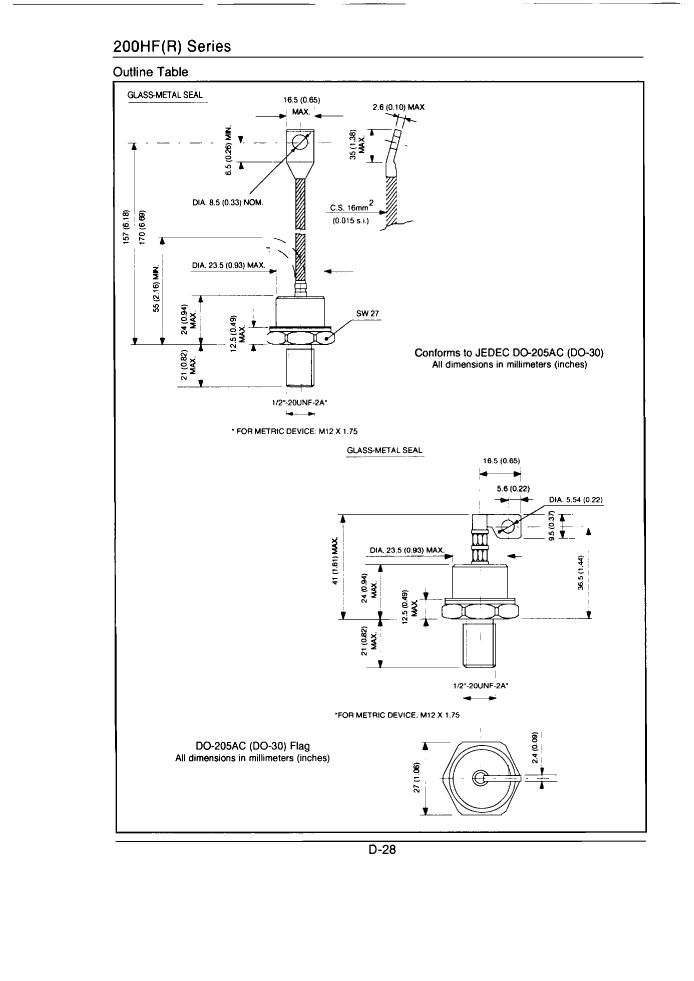

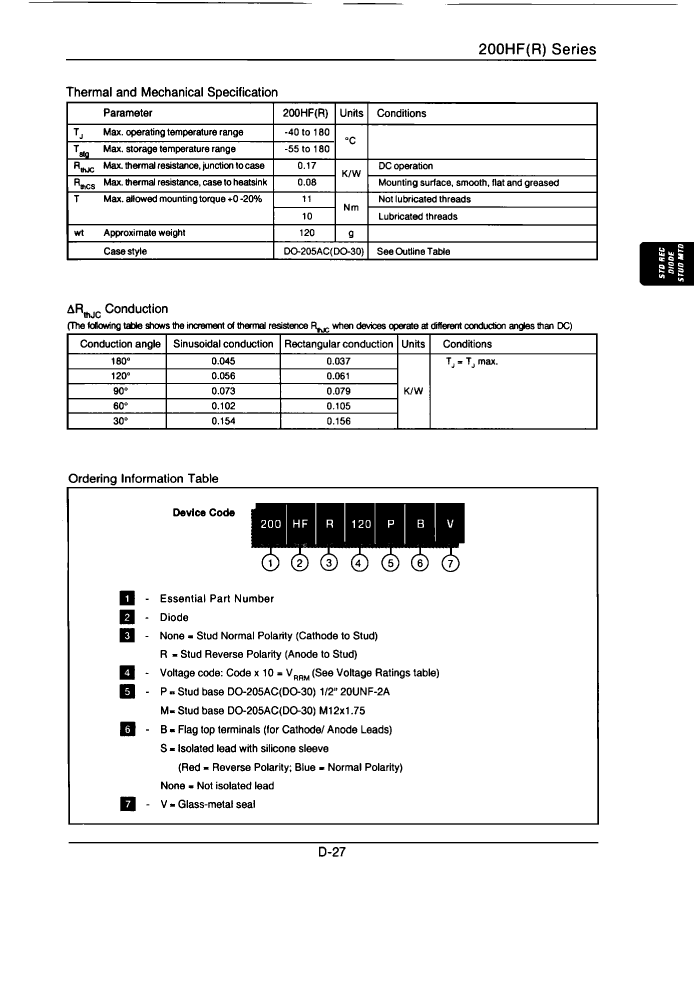

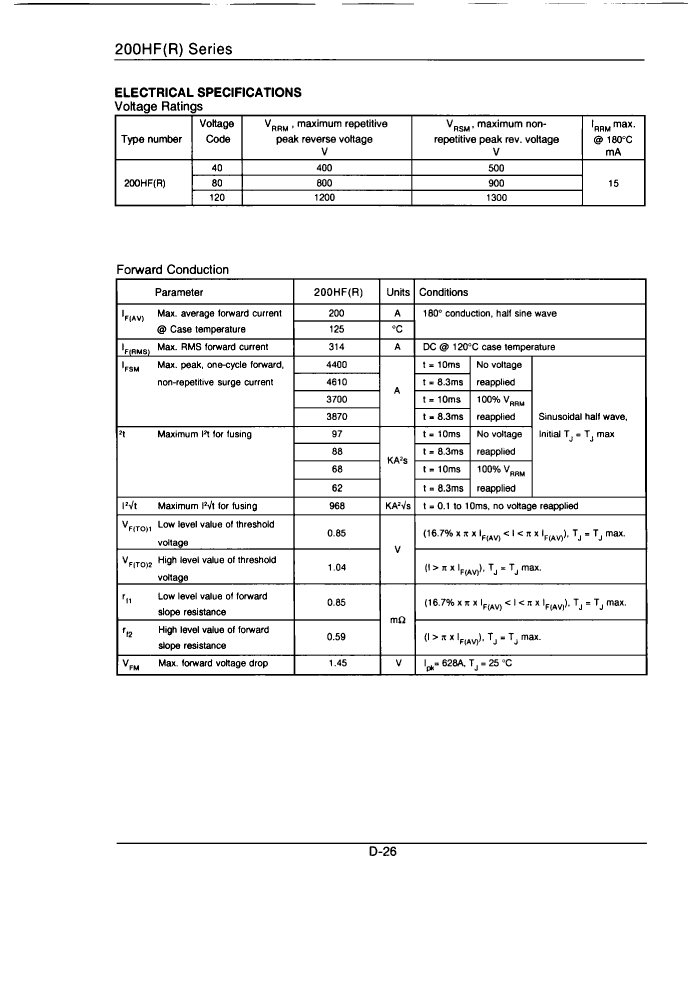

Preview

Download Datasheet

View All

200HFR40PSV Related Products

	200HFR40PSV	200HFR80MV	200HFR80PSV	200HF120MV	200HF120PSV	200HF40MV	200HF40PSV	200HF80MV	200HFR120MV	200HFR120PSV
Description	Rectifier Diode, 1 Phase, 1 Element, 200A, 400V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 800V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 800V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 1200V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 1200V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 400V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 400V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 800V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 1200V V(RRM), Silicon, DO-205AC	Rectifier Diode, 1 Phase, 1 Element, 200A, 1200V V(RRM), Silicon, DO-205AC
package instruction	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY	HIGH SURGE CAPABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	ANODE	ANODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-205AC	DO-205AC	DO-205AC	DO-205AC	DO-205AC	DO-205AC	DO-205AC	DO-205AC	DO-205AC	DO-205AC
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Maximum non-repetitive peak forward current	4610 A	4610 A	4610 A	4610 A	4610 A	4610 A	4610 A	4610 A	4610 A	4610 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1	1
Maximum output current	200 A	200 A	200 A	200 A	200 A	200 A	200 A	200 A	200 A	200 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	800 V	800 V	1200 V	1200 V	400 V	400 V	800 V	1200 V	1200 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1	1	1	1	1	1
