C4532X5R1C226MT/2.00: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size281KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance; Related ProductsFound19parts with similar functions to C4532X5R1C226MT/2.00

Download Datasheet Parametric View All

C4532X5R1C226MT/2.00 Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT

C4532X5R1C226MT/2.00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 1812
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	22 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PLASTIC, 7/13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
size code	1812
surface mount	YES
Temperature characteristic code	X5R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

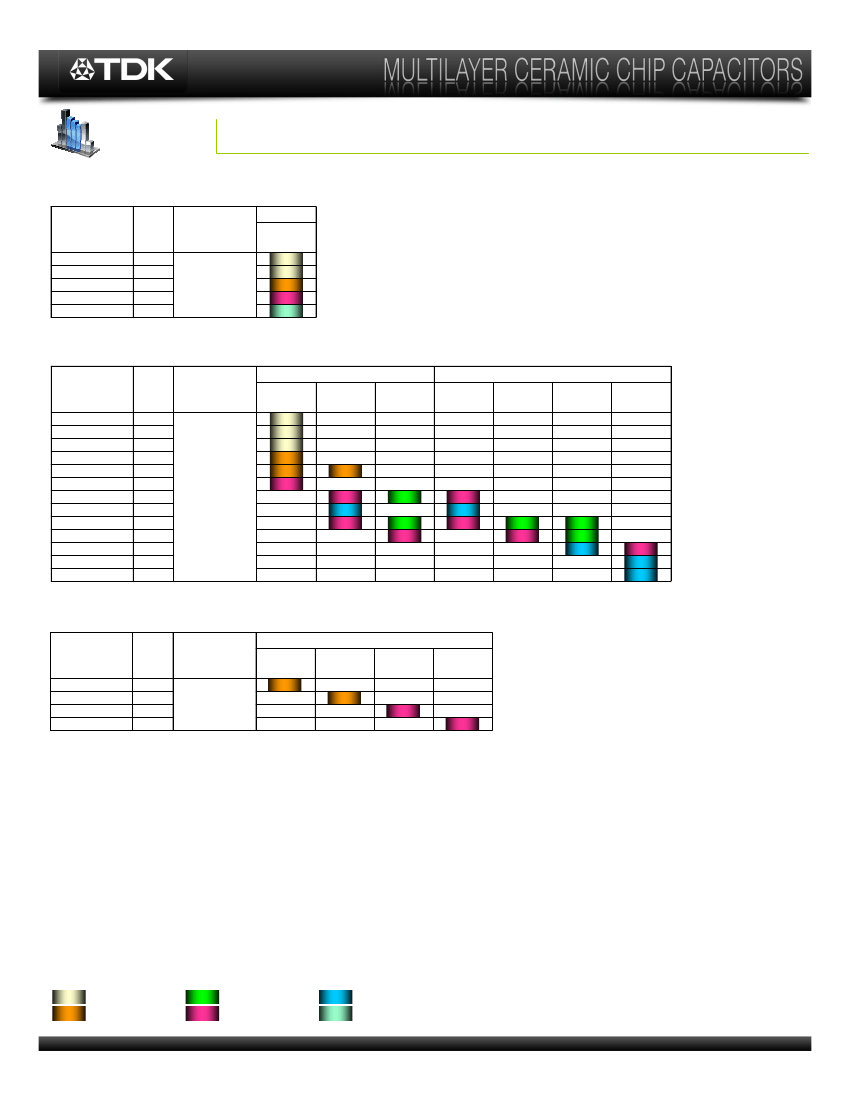

Capacitance

Range Chart

Capacitance Range Chart

Temperature Characteristics: C0G (0

±

30ppm/ºC)

Rated Voltage: 50V (1H)

C4532 [EIA CC1812]

C0G

1H

(50V)

Capacitance

(pF)

47,000

68,000

100,000

150,000

220,000

Cap

Code

473

683

104

154

224

Tolerance

J: ± 05%

Capacitance Range Chart

Temperature Characteristics: X7R (± 15%), X5R (± 15%)

Rated Voltage: 50V (1H), 25V (1E), 16V (1C), 10V (1A), 6.3V (0J)

Capacitance

(pF)

1,000,000

1,500,000

2,200,000

3,300,000

4,700,000

6,800,000

10,000,000

15,000,000

22,000,000

33,000,000

47,000,000

68,000,000

100,000,000

Cap

Code

105

155

225

335

475

685

106

156

226

336

476

686

107

Tolerance

K: ± 10%

M: ± 20%

1H

(50V)

X7R

1E

(25V)

X5R

1C

(16V)

1E

(25V)

1C

(16V)

1A

(10V)

0J

(6.3V)

Capacitance Range Chart

Temperature Characteristics: Y5V (+22/-82%)

Rated Voltage: 50V (1H), 25V (1E), 16V (1C), 10V (1A)

Capacitance

(pF)

10,000,000

22,000,000

47,000,000

100,000,000

Cap

Code

106

226

476

107

Y5V

Tolerance

Z: +80/-20%

1H

(50V)

1E

(25V)

1C

(16V)

1A

(10V)

Standard Thickness

1.60

±

0.20 mm

2.00

±

0.20 mm

2.30

±

0.20 mm

2.50

±

0.30 mm

2.80

±

0.30 mm

3.20

±

0.30 mm

• All specifications are subject to change without notice. Please read the precautions before using the product.

US Catalog // C4532 Series // Version A11

Recommended Resources

Bandpass filter composed of transistors

Okema brand BD-150, BD-200 refrigerator circuit

Pulse train controlled AC switching circuit

AM receiver AGC circuit

Vegetable greenhouse humidity detection, automatic ventilation with cricket alarm circuit

875p computer motherboard circuit diagram_103

C4532X5R1C226MT/2.00 Similar Products

Part Number	Manufacturer	Description
1812W226M160NT	Novacap	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT
1812W226M160NX110	Novacap	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT
1812W226M160N	Novacap	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT
1812W226M160NX110T	Novacap	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT
EMK432BJ226MM-T	Taiyo Yuden	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP
NMC1812X5R226M16TRPF	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT
NMC1812X5R225M16TRPLP3KF	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT
NMC1812X5R225M16TRPLPF	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT
NMC1812X5R226M16TRP3KF	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT
NMC1812X5R226M16TRP10F	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, LEAD FREE
NMC1812X5R226M16TRPLP10F	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, LEAD FREE
NMC1812X5R225M16TRPF	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT
NMC1812X5R225M16TRP3KF	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT
NMC1812X5R226M16TRPLP10	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP
NMC1812X5R226M16TRP10	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP
NMC1812X5R226M16TRP	Nichicon(尼吉康)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 22uF, SURFACE MOUNT, 1812, CHIP
160S43X226MV4T	Johanson Dielectrics	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT
C1812X5R160-226MN6E	VENKEL LTD	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT
NMC1812X5R226M16TRPLP3KF	Nichicon(尼吉康)	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT
