2SC5343SY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC5343SY

2SC5343SY: DescriptionTransistor,; CategoryDiscrete semiconductor The transistor; File Size299KB，4 Pages; ManufacturerKODENSHI; Websitehttp://www.kodenshi.co.jp

Download Datasheet Parametric Compare View All

2SC5343SY Overview

Transistor,

2SC5343SY Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	0.15 A
Configuration	Single
Minimum DC current gain (hFE)	120
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
surface mount	YES
Nominal transition frequency (fT)	80 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

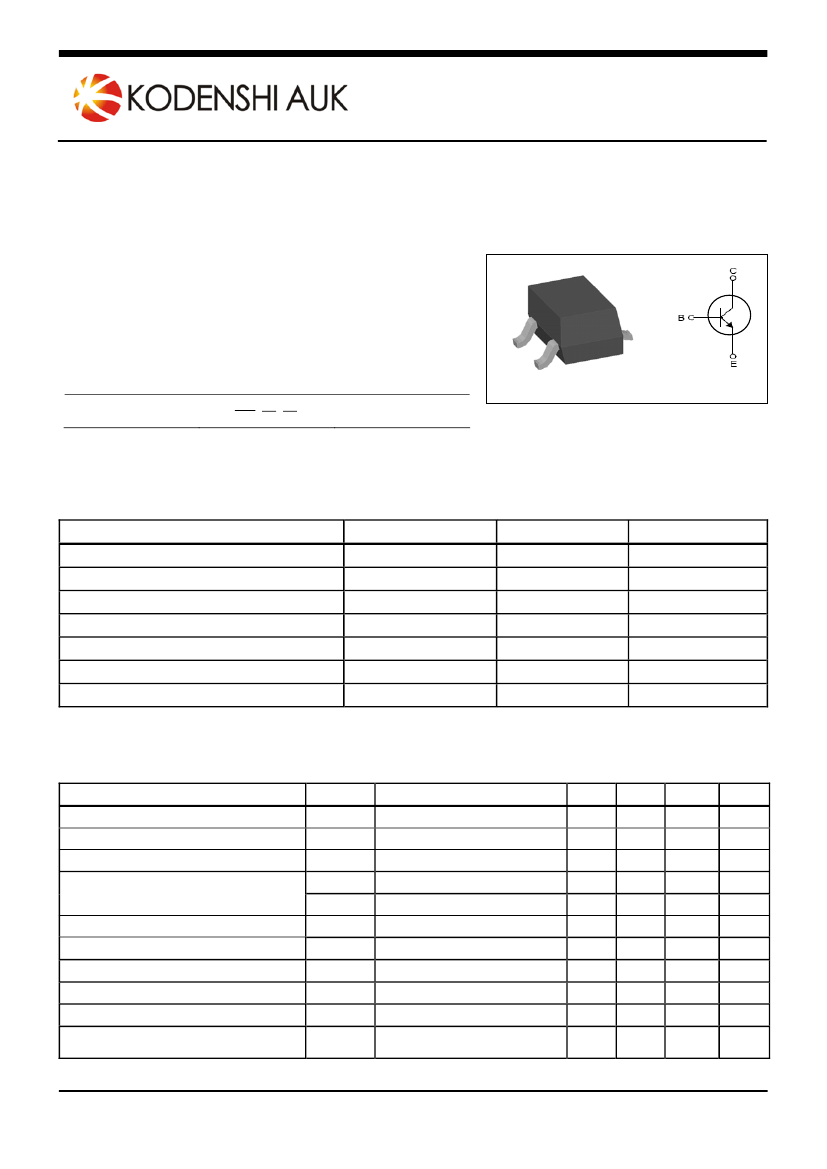

2SC5343S

NPN Silicon Transistor

GENERAL SMALL SIGNAL AMPLIFIER

Features

•

Low collector saturation voltage : V

=0.25V(Max.)

•

Low output capacitance : C

=2pF(Typ.)

•

Complementary pair with 2SA1980S

PIN Connection

Ordering Information

Type No.

2SC5343S

Marking

□ □

① ②

③

Package Code

SOT-23

①

Device Code

②

hFE Rank

③

Year&Week Code

Absolute Maximum Ratings

Characteristic

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

* Package mounted on 99.5% alumina 10×8×0.6mm

Ta=25°C

Symbol

CBO

CEO

EBO

stg

Rating

150

350

150

-55~150

Unit

°C

Electrical Characteristics

Characteristic

Collector-Base breakdown voltage

Collector-Emitter breakdown voltage

Collector cut-off current

Emitter cut-off current

DC current gain

Collector-emitter saturation voltage

Transition frequency

Collector output capacitance

Noise figure

Ta=25°C

Symbol

CBO

CEO

EBO

CEO

CBO

EBO

CE(sat)

Test Condition

=100uA, I

=1mA, I

=10uA, I

=50V, I

=60V, I

=5V, I

=6V, I

=2mA

=100mA, I

=10mA

=10V, I

=1mA

=10V, I

=0, f=1MHz

=6V, I

=0.1mA,

f=1KHz, Rg=10KΩ

Min. Typ. Max.

0.6

0.1

700

0.25

Unit

μA

MHz

* : h

rank / O : 70 ~ 140, Y : 120 ~ 240, G : 200 ~ 400, L : 300 ~ 700

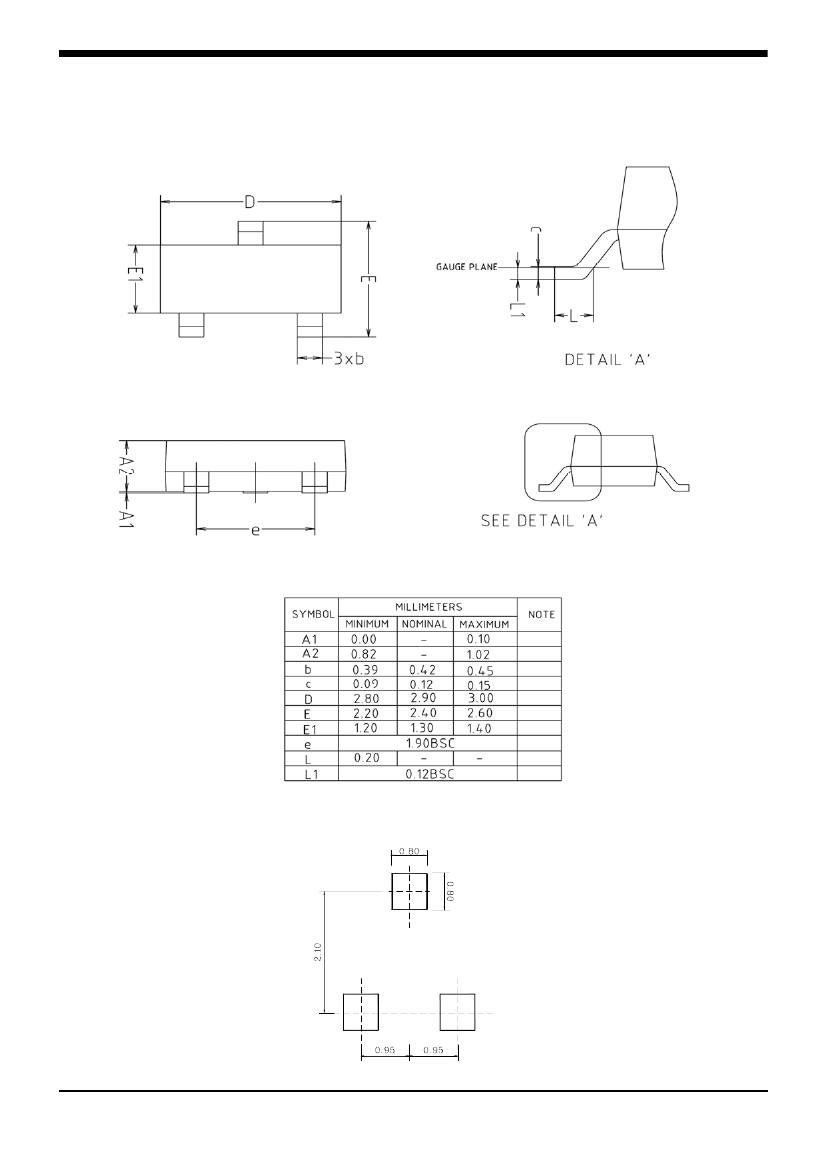

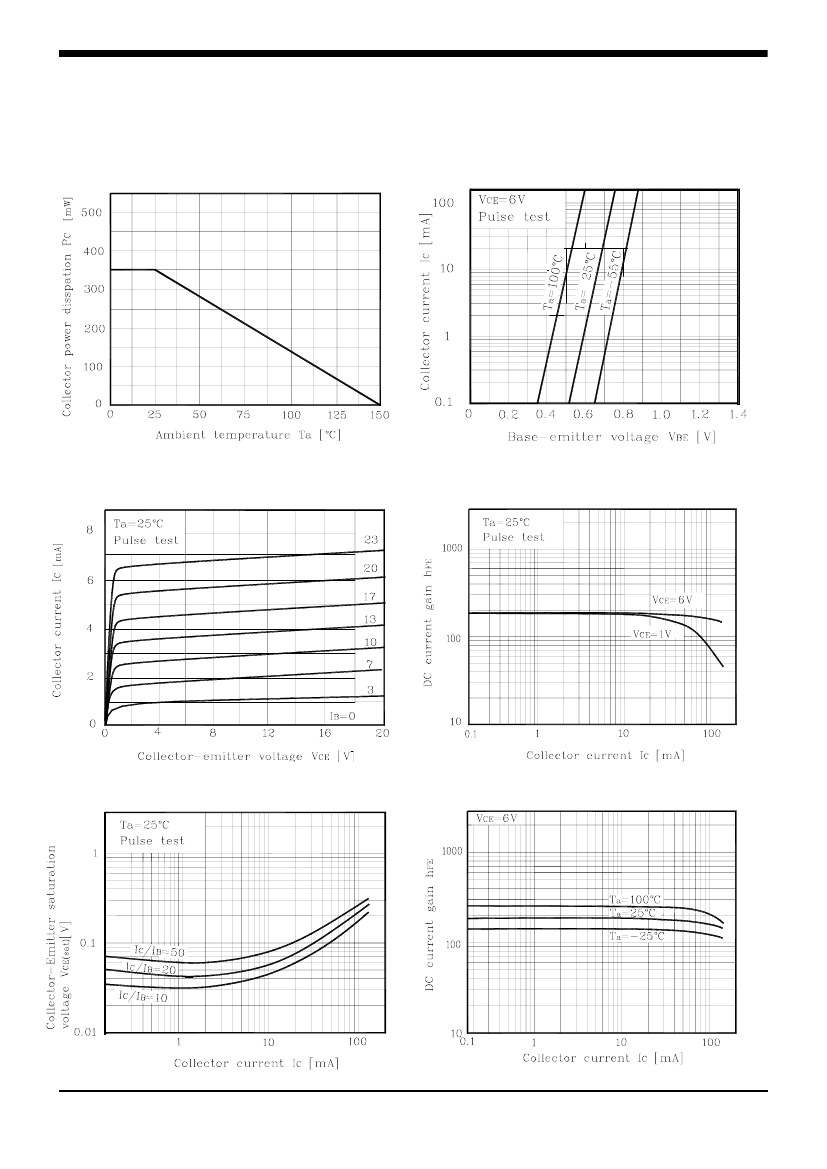

KSD-T5C022-004

2SC5343SY Related Products

	2SC5343SY	2SC5343SG	2SC5343SO	2SC5343SL
Description	Transistor,	Transistor,	Transistor,	Transistor,
Reach Compliance Code	unknow	unknow	unknow	unknow
Maximum collector current (IC)	0.15 A	0.15 A	0.15 A	0.15 A
Configuration	Single	Single	Single	Single
Minimum DC current gain (hFE)	120	200	70	300
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.2 W	0.2 W	0.2 W	0.2 W
surface mount	YES	YES	YES	YES
Nominal transition frequency (fT)	80 MHz	80 MHz	80 MHz	80 MHz
Base Number Matches	1	1	1	1
