Semiconductor
2SC5343UF
NPN Silicon Transistor
Description
•
General small signal amplifier
Features
•
Low collector saturation voltage : V
CE
=0.25V(Max.)
•
Low output capacitance : C
ob
=2pF(Typ.)
•
Complementary pair with 2SA1980UF
Ordering Information
Type NO.
2SC5343UF
Marking
D
① ② ③
①Device
Code
②hFE
Rank
③Year&Week
Code
Package Code
SOT-323F
Outline Dimensions
unit :
mm
1.95~2.25
1.20~1.40
1
1.90~2.10
1.30 Typ.
3
2
0.16 Max.
0.10 Max.
0.60~0.80.
0.40 Max.
PIN Connections
1. Base
2. Emitter
3. Collector
KSD-T5D018-000
1
2SC5343UF
Absolute Maximum Ratings
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
Ta=25°C
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
Rating
60
50
5
150
200
150
-55~150
Unit
V
V
V
mA
mW
°C
°C
Electrical Characteristics
Characteristic
Collector-emitter breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Transistion frequency
Collector output capacitance
Noise figure
Ta=25°C
Symbol
BV
CEO
I
CBO
I
EBO
h
FE
*
V
CE(sat)
f
T
C
ob
NF
Test Condition
I
C
=1mA, I
B
=0
V
CB
=60V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=6V, I
C
=2mA
I
C
=100mA, I
B
=10mA
V
CE
=10V, I
C
=1mA
V
CB
=10V, I
E
=0, f=1MHz
V
CE
=6V, I
C
=0.1mA,
f=1KHz, Rg=10KΩ
Min. Typ. Max.
50
-
-
70
-
-
-
-
-
-
-
-
-
80
3.5
10
-
0.1
0.1
700
0.25
-
-
-
Unit
V
μA
μA
-
V
MHz
pF
dB
* : h
FE
rank / O : 70 ~ 140, Y : 120 ~ 240, G : 200 ~ 400, L : 300 ~ 700
KSD-T5D018-000
2
2SC5343UF

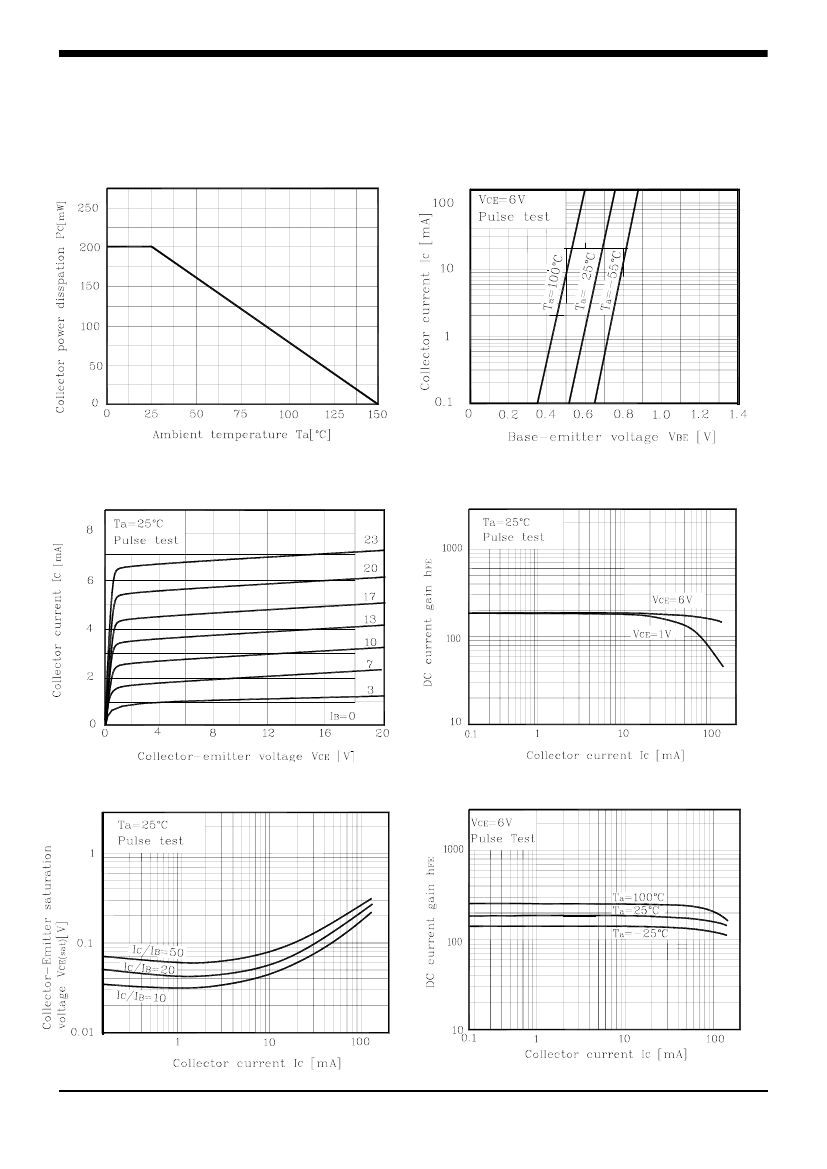

Electrical Characteristic Curves
Fig. 1 P
C
- T
a
Fig. 2 I
C
- V
BE
Fig. 3 I
C
- V
CE
Fig. 4 h
FE
- I
C
㎂
Fig. 5 V
CE(sat)
- I
C
Fig. 6 h
FE
- I
C
KSD-T5D018-000
3
2SC5343UF
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T5D018-000
4
