26MT80: DescriptionDiode Rectifier Bridge Single 800V 25A 5-Pin Case D-63; CategoryDiscrete semiconductor diode; File Size63KB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

26MT80 Overview

Diode Rectifier Bridge Single 800V 25A 5-Pin Case D-63

26MT80 Parametric

Parameter Name	Attribute value
package instruction	R-PUFM-D5
Reach Compliance Code	unknow
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PUFM-D5
Maximum non-repetitive peak forward current	360 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

-doncmckoi lJ\odu.ct\, One..

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

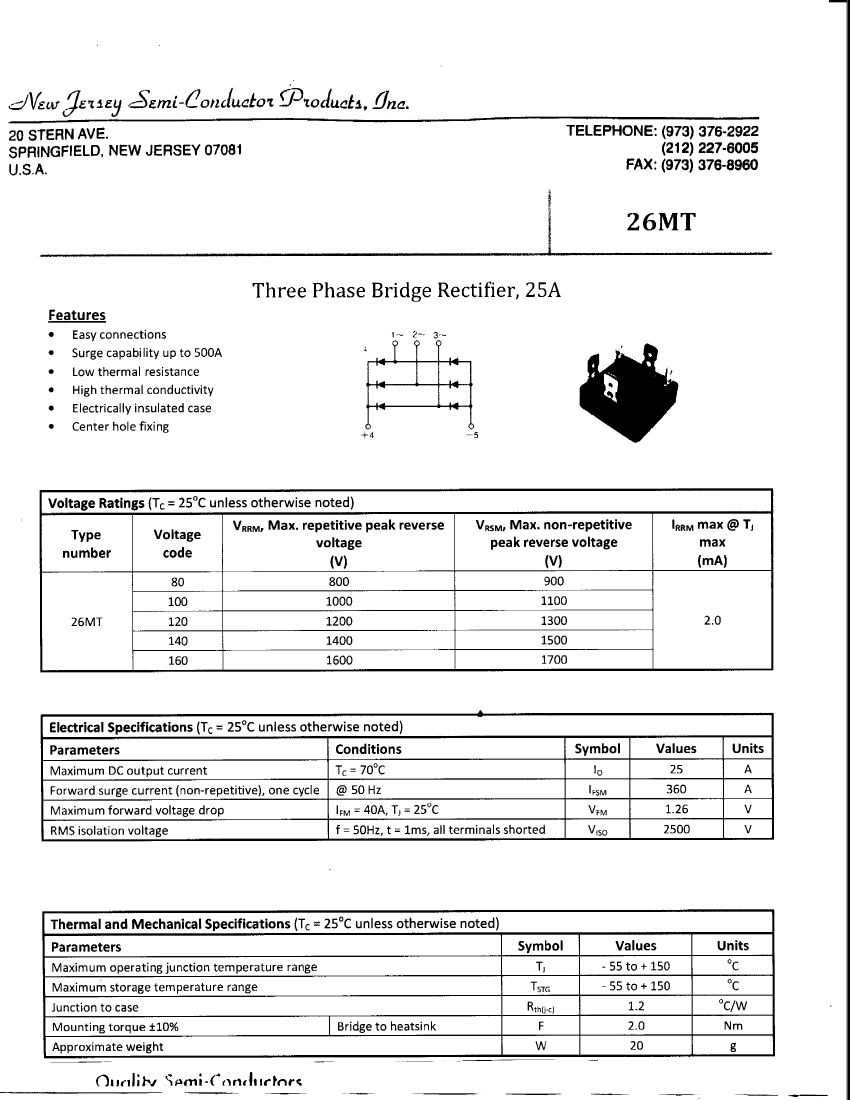

26MT

Three Phase Bridge Rectifier, 25A

Features

•

Easy connections

•

Surge capability up to 500A

•

Low thermal resistance

•

High thermal conductivity

•

Electrically insulated case

•

Center hole fixing

1~

Id 1

I1

2-

5

3-

(

•>

O

+4

Voltage Ratings (T

c

= 25°C unless otherwise noted)

Type

number

Voltage

code

80

100

26MT

VRRM, Max. repetitive peak reverse

voltage

VRSM, Max. non-repetitive

peak reverse voltage

I

RRM

max @ Tj

max

(mA)

(V)

800

1000

1200

1400

1600

(V)

900

1100

1300

1500

1700

120

140

160

2.0

Electrical Specifications (T

c

= 25°C unless otherwise noted)

Parameters

Maximum DC output current

Forward surge current (non-repetitive), one cycle

Maximum forward voltage drop

RMS isolation voltage

Conditions

T

c

= 70°C

@50Hz

I

FM

- 40A, T, = 25°C

Symbol

lo

IFSM

Values

25

360

1.26

Units

A

V

FM

Viso

f = 50Hz, t = 1ms, all terminals shorted

2500

Thermal and Mechanical Specifications (T

c

* 25°C unless otherwise noted)

Parameters

Maximum operating junction temperature range

Maximum storage temperature range

Junction to case

Mounting torque ±10%

Approximate weight

Bridge to heatsink

Symbol

Values

- 55 to + 150

1.2

2.0

20

Units

Tj

TSTG

Rth(j-c)

°c

°c/w

Nm

g

F

W

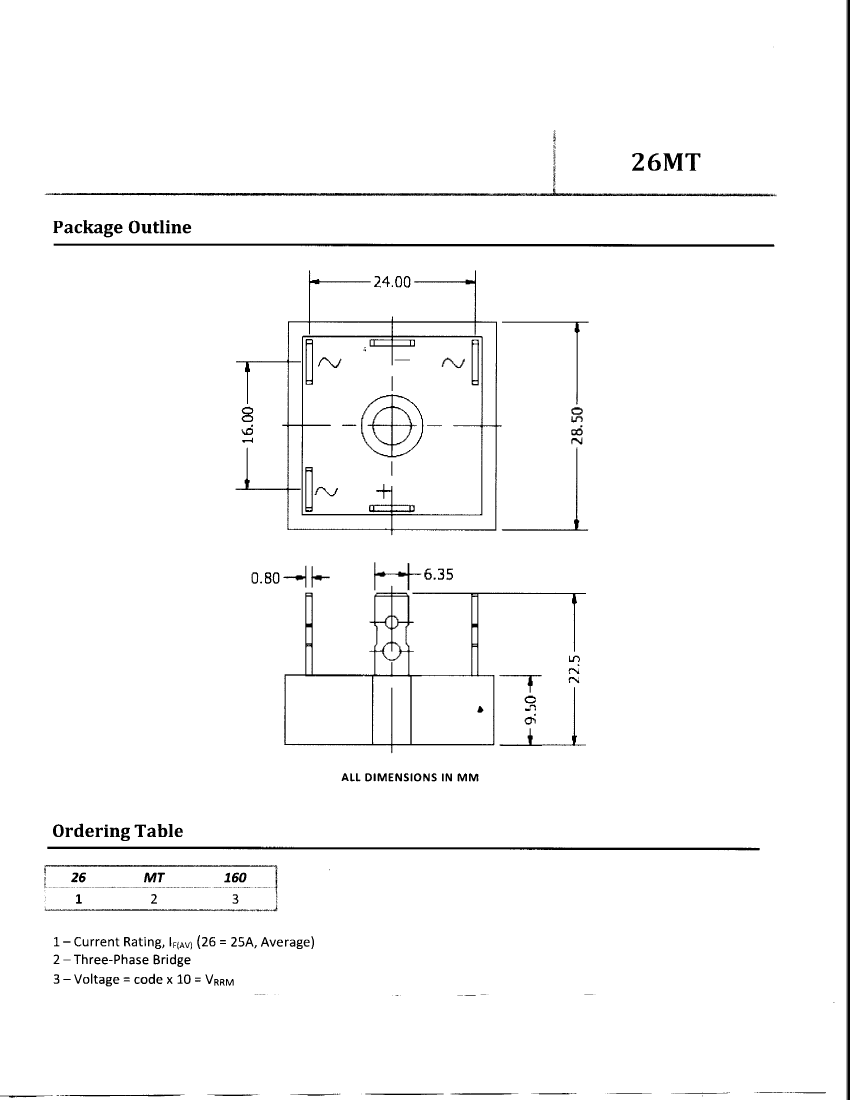

26MT80 Related Products

	26MT80	26MT100	26MT120	26MT160	26MT140
Description	Diode Rectifier Bridge Single 800V 25A 5-Pin Case D-63	Diode Rectifier Bridge Single 1KV 25A 5-Pin Case D-63	Diode Rectifier Bridge Single 1.2KV 25A 5-Pin Case D-63	Diode Rectifier Bridge Single 1.6KV 25A 5-Pin Case D-63	Diode Rectifier Bridge Single 1.4KV 25A 5-Pin Case D-63
package instruction	R-PUFM-D5	R-PUFM-D5	R-PUFM-D5	R-PUFM-D5	R-PUFM-D5
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PUFM-D5	R-PUFM-D5	R-PUFM-D5	R-PUFM-D5	R-PUFM-D5
Maximum non-repetitive peak forward current	360 A	360 A	360 A	360 A	360 A
Number of components	6	6	6	6	6
Phase	3	3	3	3	3
Number of terminals	5	5	5	5	5
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	25 A	25 A	25 A	25 A	25 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	800 V	1000 V	1200 V	1600 V	1400 V
surface mount	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1
