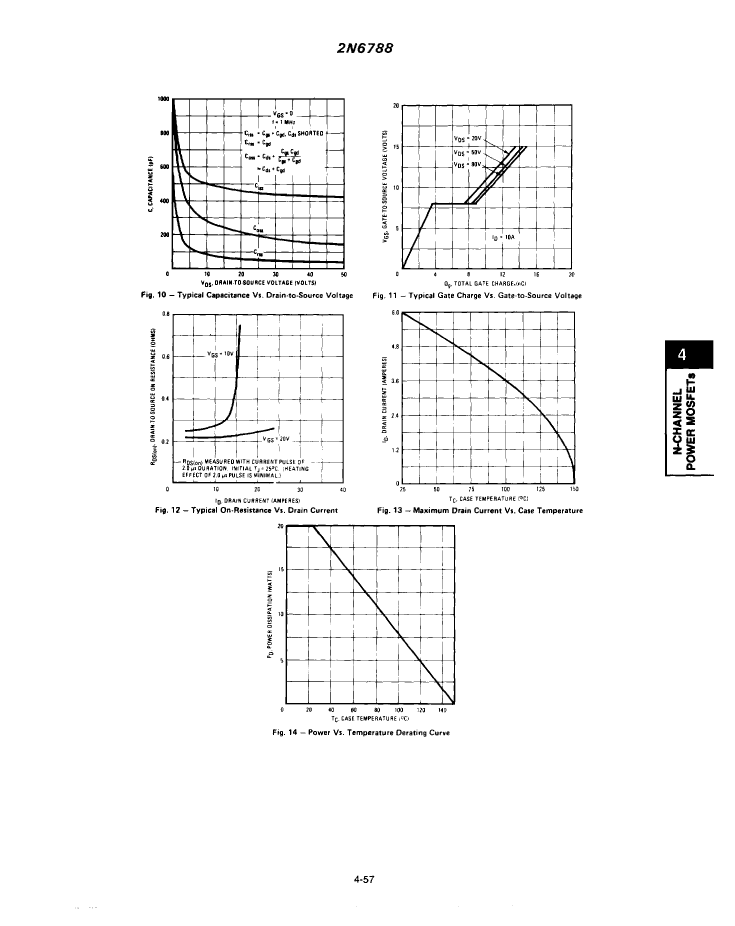

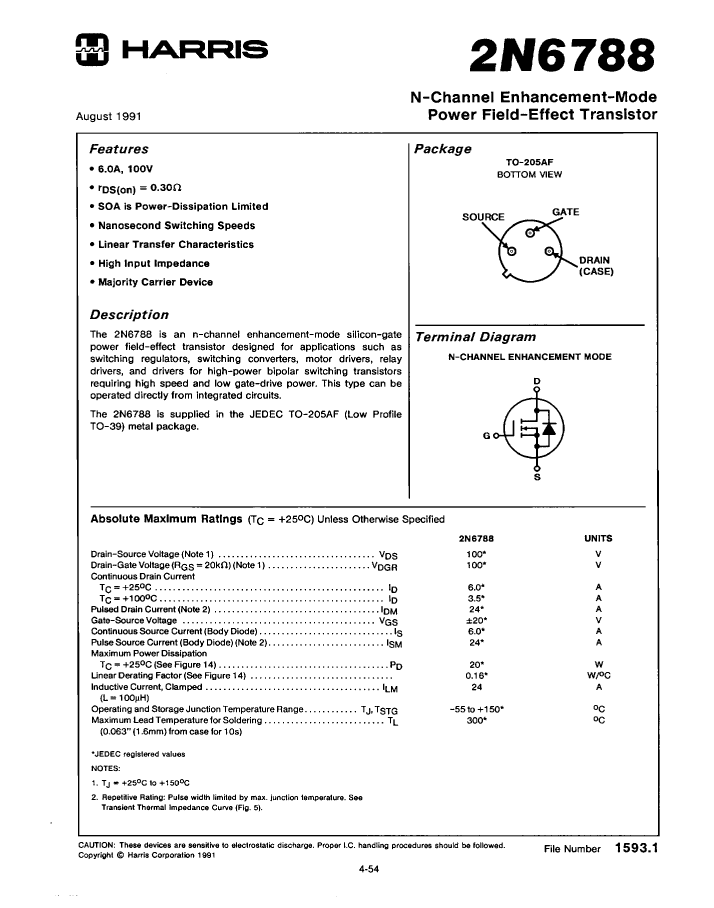

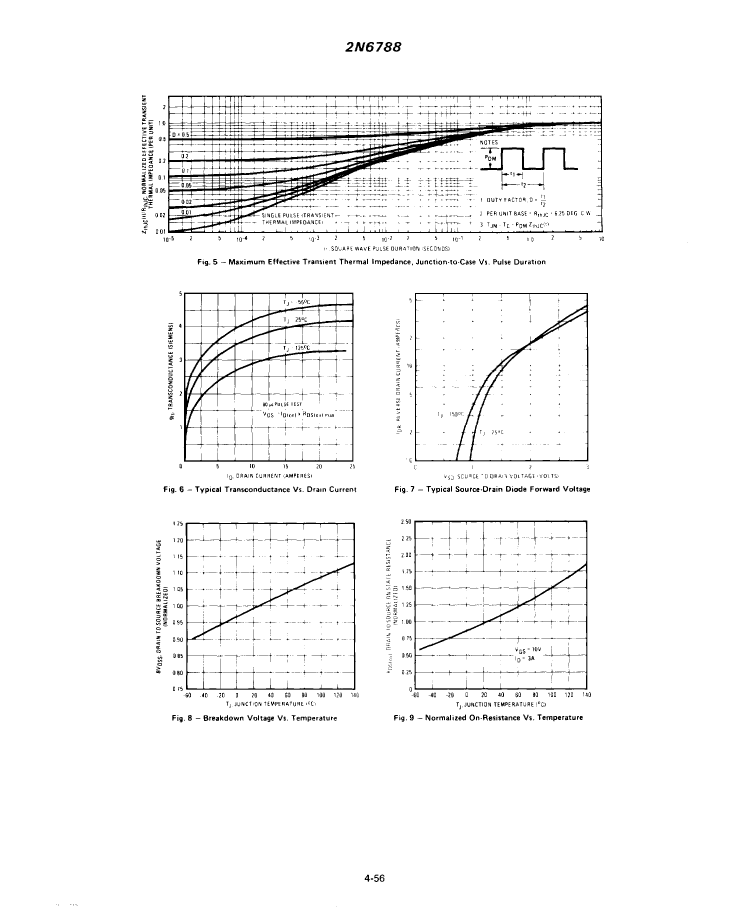

6A, 100V, 0.3ohm, N-CHANNEL, Si, POWER, MOSFET, TO-205AF

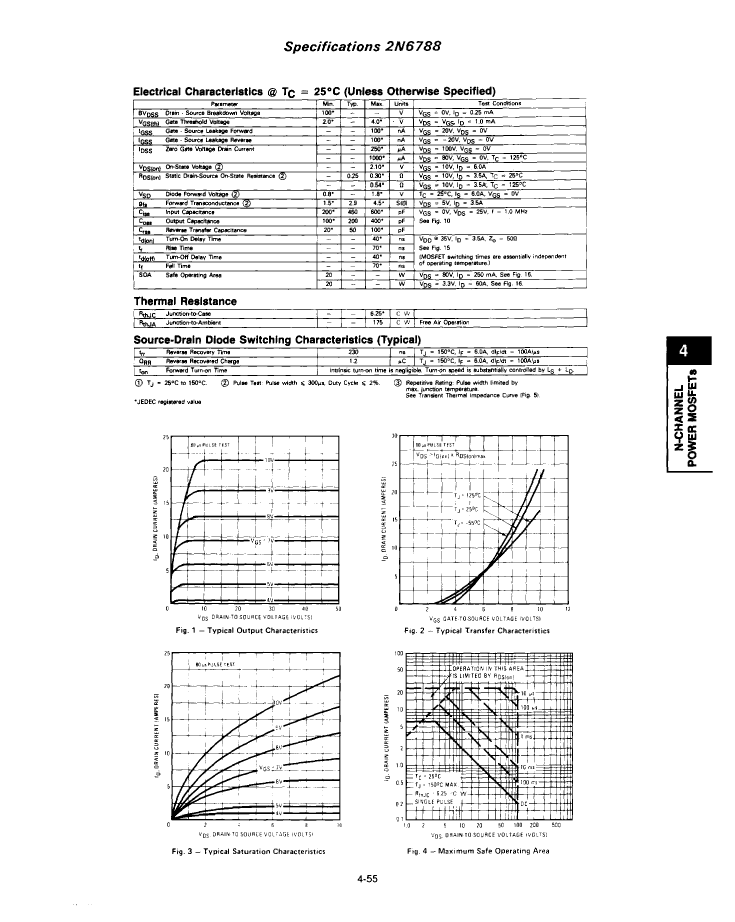

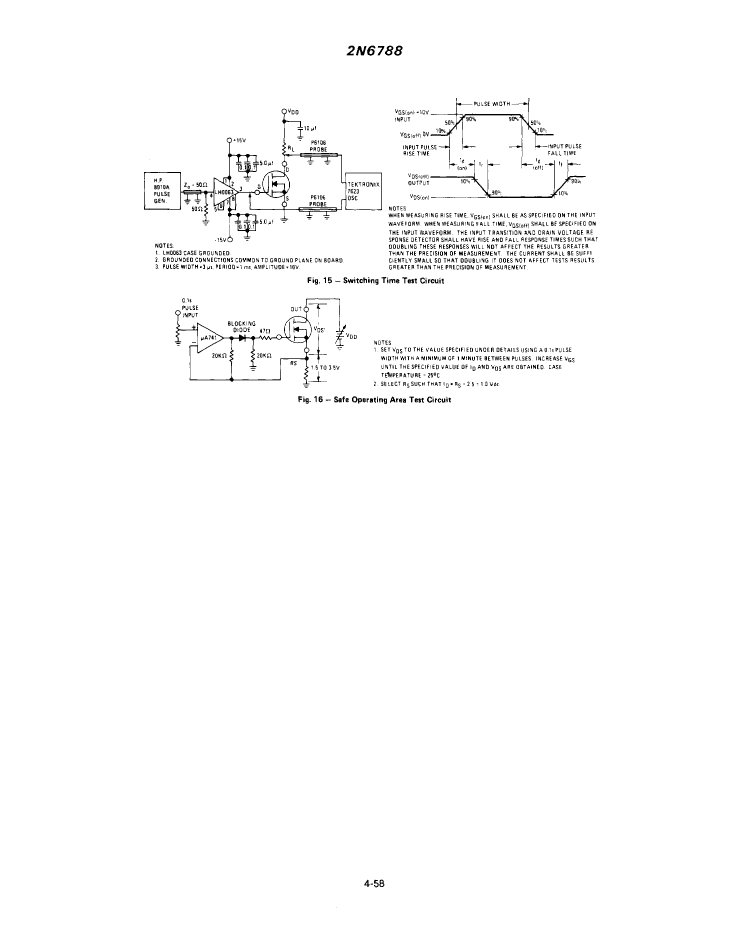

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | _compli |
| ECCN code | EAR99 |
| Other features | RADIATION HARDENED |
| Shell connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V |
| Maximum drain current (Abs) (ID) | 6 A |
| Maximum drain current (ID) | 6 A |
| Maximum drain-source on-resistance | 0.3 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 100 pF |
| JEDEC-95 code | TO-205AF |
| JESD-30 code | O-MBCY-W3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | N-CHANNEL |
| Maximum power consumption environment | 20 W |
| Maximum power dissipation(Abs) | 20 W |
| Maximum pulsed drain current (IDM) | 24 A |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Maximum off time (toff) | 110 ns |
| Maximum opening time (tons) | 110 ns |
| Base Number Matches | 1 |
