7310-1511-000

Description
RF Connector, Male, Board Mount, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size83KB,1 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

7310-1511-000 Overview

RF Connector, Male, Board Mount, Solder Terminal, Receptacle

7310-1511-000 Parametric

Parameter NameAttribute value
MakerRadiall
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing typeRECEPTACLE
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.3 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberSSLB
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency12.4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER

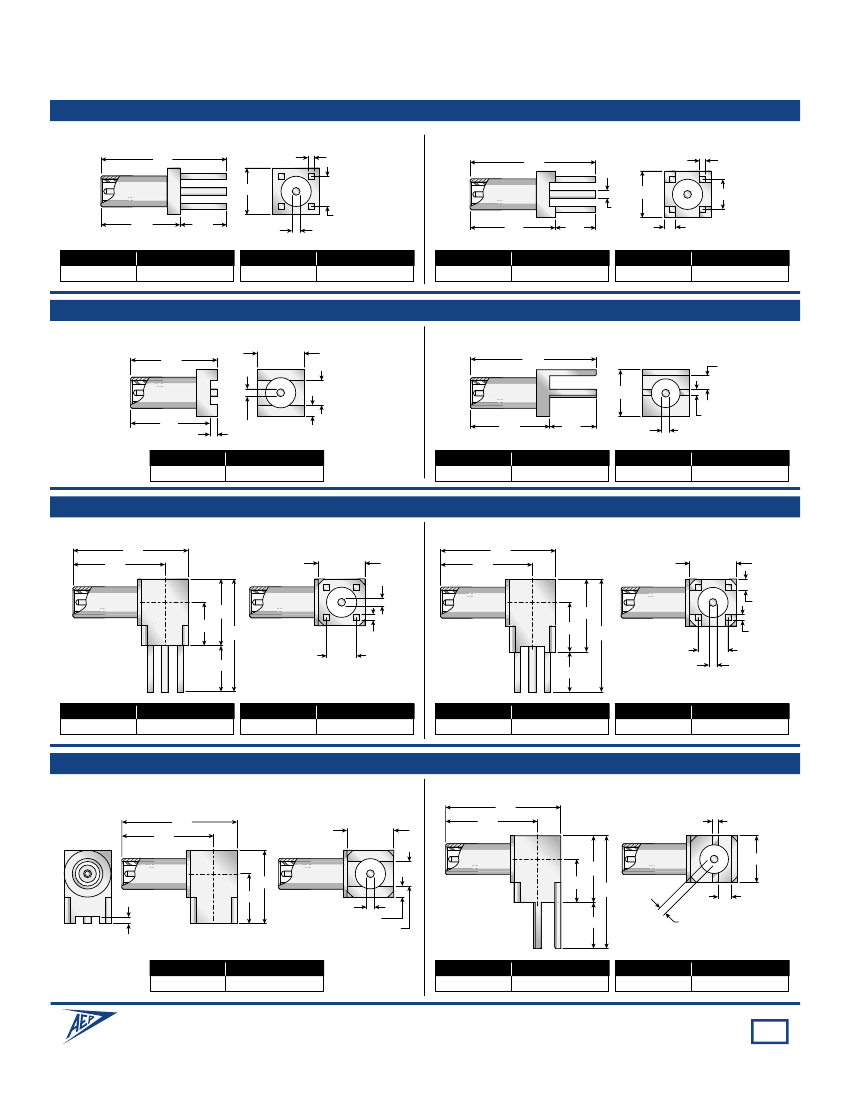

SSLB P.C. Board Receptacles
Straight P.C. Board Receptacles
Standard legs
.419
.020 sq. (typ.)
.156 sq.
.264
.155
.100 (typ.)
.026 dia.
.135
.419
Standoff legs
.020 sq. (typ.)
.156 sq.
.026
dia.
.100 (typ.)
.038 sq. (typ.)
.284
LEG FINISH
GOLD
AEP P/N
7309-1511-000
LEG FINISH
PRETINNED
AEP P/N
7309-1511-012
LEG FINISH
GOLD
AEP P/N
7309-1511-050
LEG FINISH
PRETINNED
AEP P/N
7309-1511-040
Straight P.C. Board Receptacles—Surface
Mount
Top mount
.289
.156 sq.
.080
.419
.156 sq.
.264
.025
.026 dia.
.264
.155
.026 dia.
Edge mount
.031
(P.C. board
thickness)
.020 (typ.)
.038 (typ.)
LEG FINISH
GOLD
AEP P/N
7309-1511-015
LEG FINISH
GOLD
AEP P/N
7309-1511-060
LEG FINISH
PRETINNED
AEP P/N
7309-1511-061
Right Angle P.C. Board Receptacles
Standard legs
.384
.306
.156 sq.
.026 dia.
.225
.141
.38
.100 (typ.)
.020 sq.
(typ.)
.245
.161
.38
.100 (typ.)
.135
.038 sq.
(typ.)
.020 sq.
(typ.)
.026 dia.
.306
.384
.156 sq.
Standoff legs
.155
LEG FINISH
GOLD
AEP P/N
7310-1511-000
LEG FINISH
PRETINNED
AEP P/N
7310-1511-012
LEG FINISH
GOLD
AEP P/N
7310-1511-050
LEG FINISH
PRETINNED
AEP P/N
7310-1511-040
Right Angle P.C. Board Receptacles—Surface
Mount
Standard legs
.384
.384
.306
.156 sq.
.306
.020 (typ.)
Standoff legs
.225
.025
.247
.163
.141
.026 dia.
.038 (typ.)
.080
.38
.026 dia.
.156 sq.
.031
(P.C. board
thickness)
.155
LEG FINISH
GOLD
AEP P/N
7310-1511-015
LEG FINISH
GOLD
AEP P/N
7310-1511-060
LEG FINISH
PRETINNED
AEP P/N
7310-1511-061
APPLIED ENGINEERING PRODUCTS
(203) 776-2813 • FAX (203) 776-8294
www.aepconnectors.com • aepsales@aepconnectors.com
18
