IS28F002BVB-80TI datasheet, PDF

Datasheet> All Categories > storage> storage> IS28F002BVB-80TI

IS28F002BVB-80TI: DescriptionFlash, 256KX8, 110ns, PDSO40, 10 X 20 MM, TSOP-40; Categorystorage storage; File Size2MB，38 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric Compare View All

IS28F002BVB-80TI Overview

Flash, 256KX8, 110ns, PDSO40, 10 X 20 MM, TSOP-40

IS28F002BVB-80TI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP
package instruction	10 X 20 MM, TSOP-40
Contacts	40
Reach Compliance Code	compli
ECCN code	EAR99
Maximum access time	110 ns
Other features	USER SELECTABLE 5V VCC; BOTTOM BOOT BLOCK
startup block	BOTTOM
command user interface	YES
Data polling	NO
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
memory density	2097152 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	1,2,1,1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	TSOP40/44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
power supply	3.3/5 V
Programming voltage	5 V
Certification status	Not Qualified
Department size	16K,8K,96K,128K
Maximum standby current	0.00011 A
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	MOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
switch bit	NO
type	NOR TYPE
Base Number Matches	1

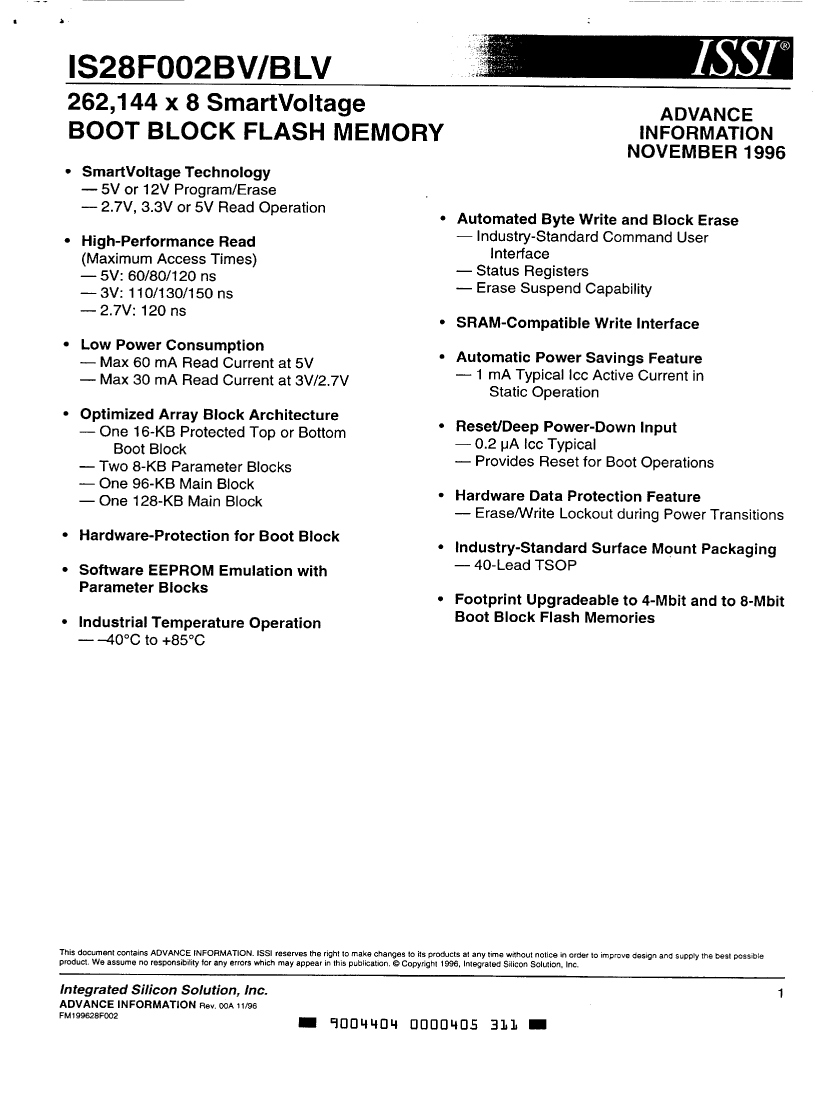

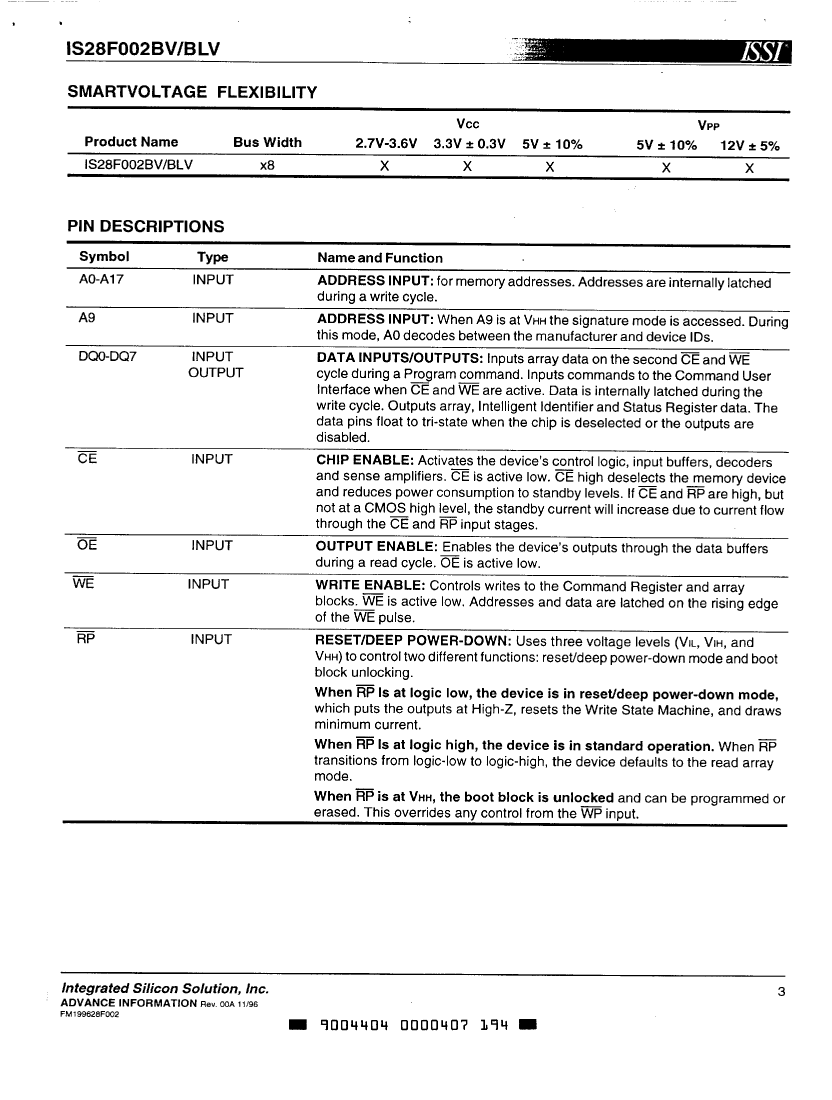

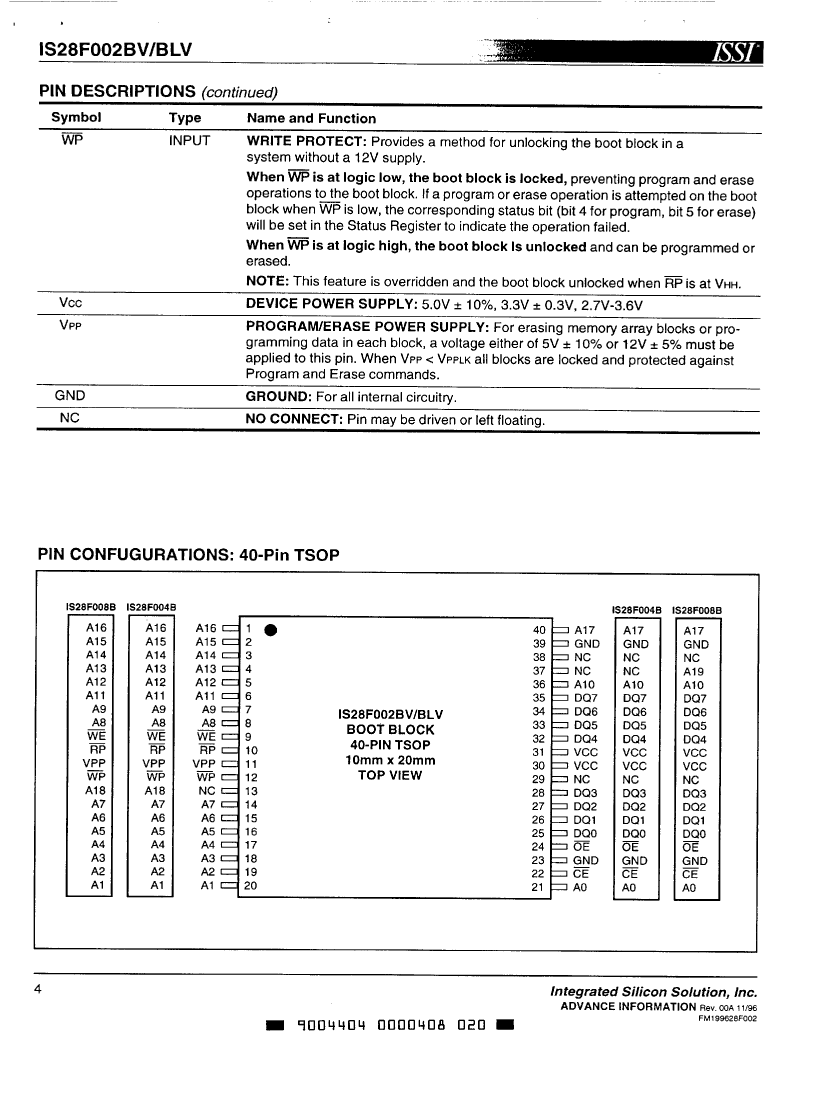

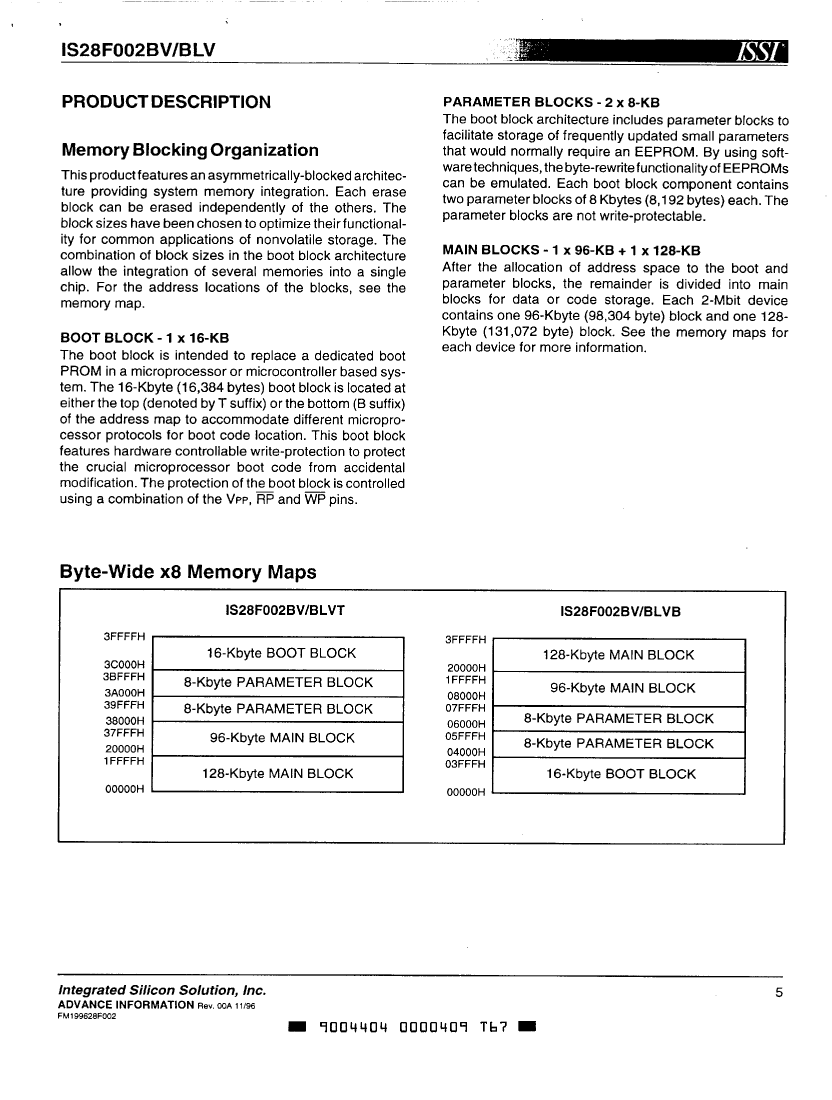

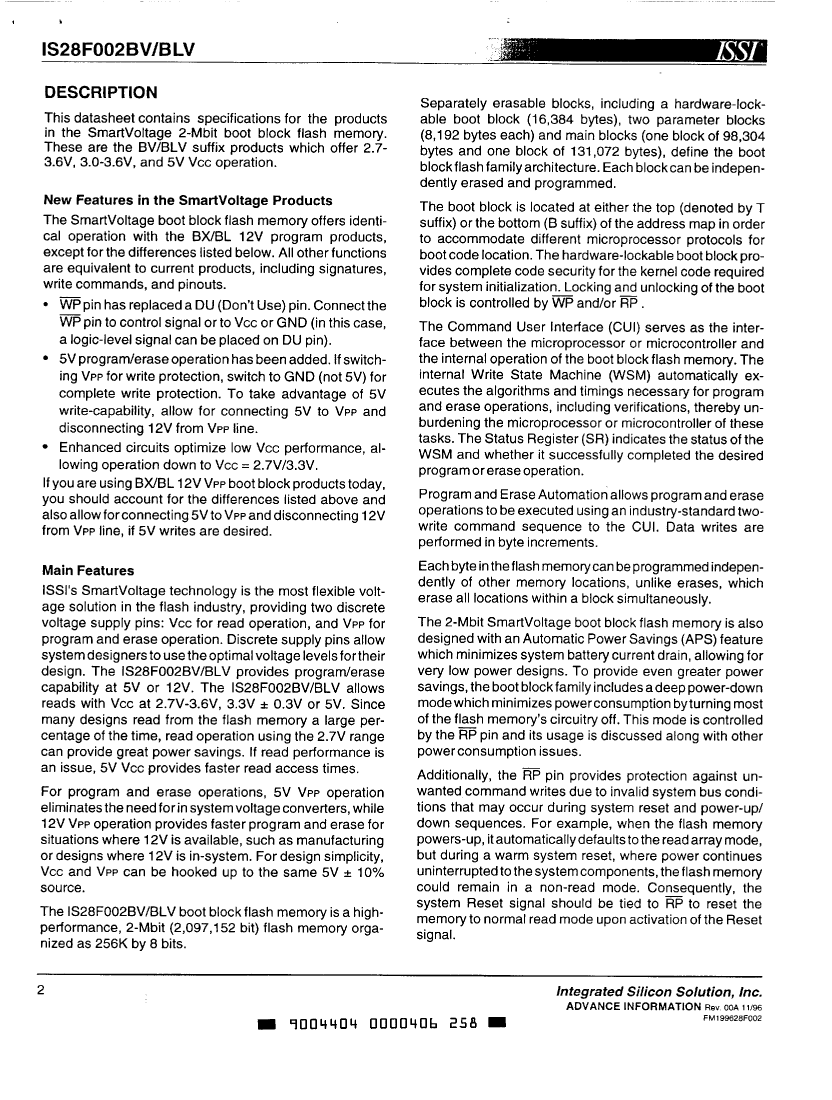

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

IS28F002BVB-80TI Related Products

	IS28F002BVB-80TI	IS28F002BVT-80TI	IS28F002BVT-80T	IS28F002BVT-60T	IS28F002BVT-120T	IS28F002BVB-120T	IS28F002BVB-60T	IS28F002BVB-80T	IS28F002BLVT-120TI	IS28F002BLVB-120TI
Description	Flash, 256KX8, 110ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 110ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 150ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 110ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 180ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 180ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 110ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 150ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 120ns, PDSO40, 10 X 20 MM, TSOP-40	Flash, 256KX8, 120ns, PDSO40, 10 X 20 MM, TSOP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
package instruction	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40	10 X 20 MM, TSOP-40
Contacts	40	40	40	40	40	40	40	40	40	40
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	110 ns	110 ns	150 ns	110 ns	180 ns	180 ns	110 ns	150 ns	120 ns	120 ns
Other features	USER SELECTABLE 5V VCC; BOTTOM BOOT BLOCK	USER SELECTABLE 5V VCC; TOP BOOT BLOCK	USER SELECTABLE 5V VCC; TOP BOOT BLOCK	USER SELECTABLE 5V VCC; TOP BOOT BLOCK	USER SELECTABLE 5V VCC; TOP BOOT BLOCK	USER SELECTABLE 5V VCC; BOTTOM BOOT BLOCK	USER SELECTABLE 5V VCC; BOTTOM BOOT BLOCK	USER SELECTABLE 5V VCC; BOTTOM BOOT BLOCK	USER SELECTABLE 5V VCC; TOP BOOT BLOCK	USER SELECTABLE 5V VCC; BOTTOM BOOT BLOCK
startup block	BOTTOM	TOP	TOP	TOP	TOP	BOTTOM	BOTTOM	BOTTOM	TOP	BOTTOM
command user interface	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Data polling	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	2097152 bi	2097152 bi	2097152 bi	2097152 bi	2097152 bi	2097152 bi	2097152 bi	2097152 bi	2097152 bit	2097152 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of departments/size	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1
Number of terminals	40	40	40	40	40	40	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240	240	240	240
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3/5 V	3/5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Department size	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K
Maximum standby current	0.00011 A	0.00011 A	0.00011 A	0.00011 A	0.00011 A	0.00011 A	0.00011 A	0.00011 A	0.00011 A	0.00011 A
Maximum slew rate	0.07 mA	0.07 mA	0.065 mA	0.065 mA	0.065 mA	0.065 mA	0.065 mA	0.065 mA	0.07 mA	0.07 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30	30	30
switch bit	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
Base Number Matches	1	1	1	1	1	1	1	1	1	-
