2SC5344UY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC5344UY

2SC5344UY: DescriptionTransistor,; CategoryDiscrete semiconductor The transistor; File Size253KB，4 Pages; ManufacturerKODENSHI; Websitehttp://www.kodenshi.co.jp

Download Datasheet Parametric Compare View All

2SC5344UY Overview

Transistor,

2SC5344UY Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	0.8 A
Configuration	Single
Minimum DC current gain (hFE)	160
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

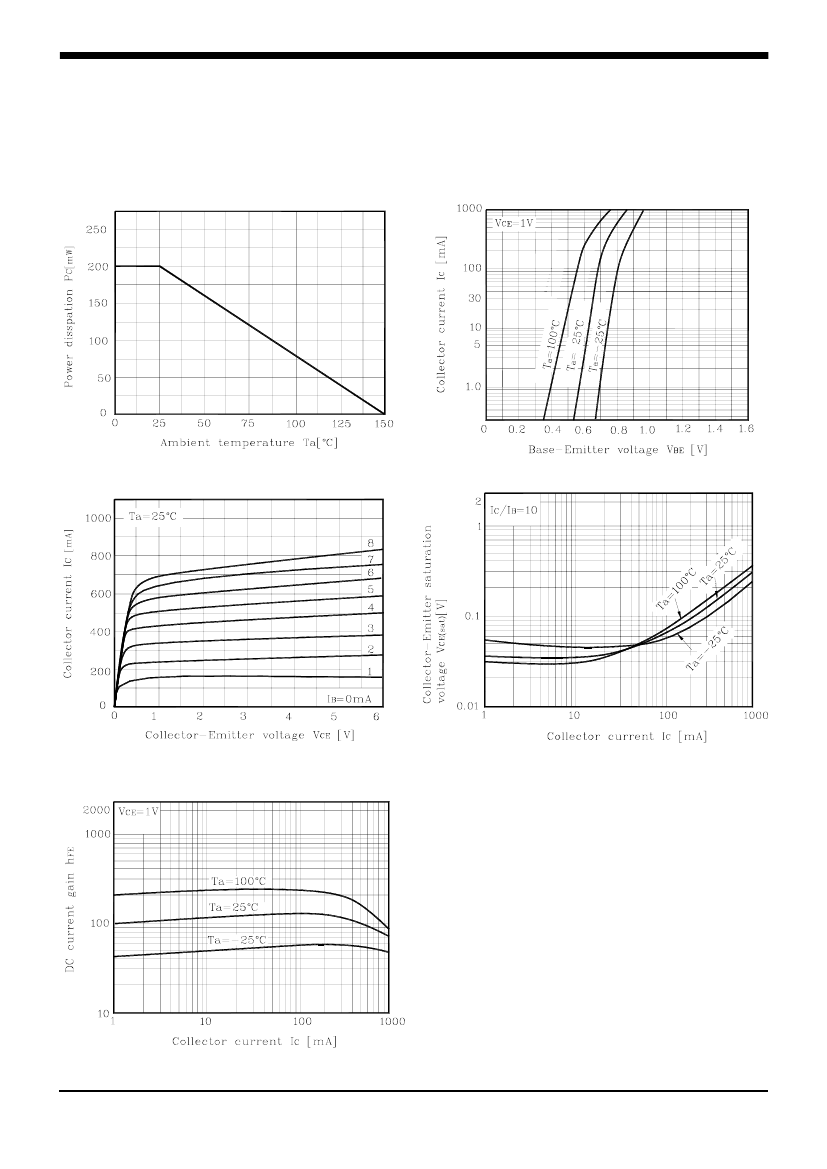

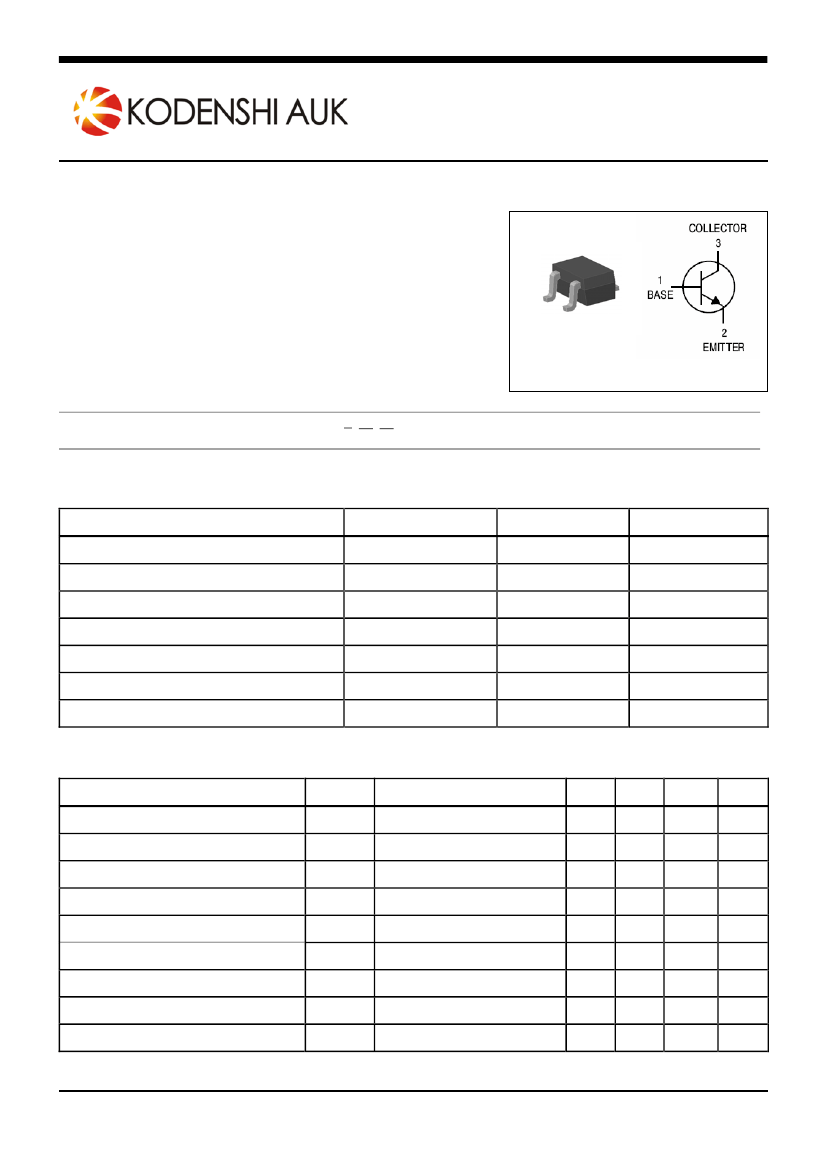

2SC5344U

NPN Silicon Transistor

Description

•

Audio power amplifier application

PIN Connection

Features

•

High h

: h

=100~320

•

Complementary pair with 2SA1981U

Ordering Information

Type NO.

2SC5344U

Marking

□ □

① ②

③

①Device

Code

②hFE

Rank

③Year&Week

Code

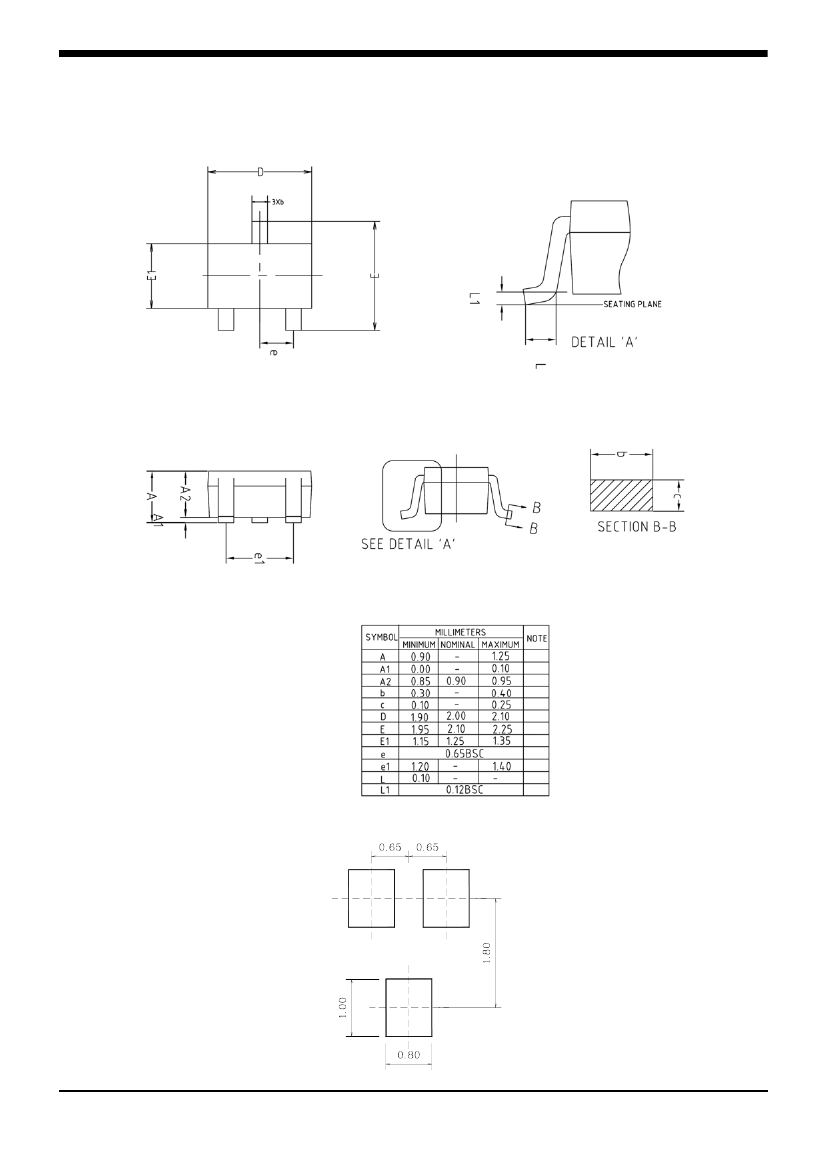

SOT-323

Package Code

SOT-323

Absolute maximum ratings

Characteristic

Collector-Base voltage

Collector-Emitter voltage

Emitter-Base voltage

Collector current

Collector dissipation

Junction temperature

Storage temperature

(Ta=25°C)

Symbol

CBO

CEO

EBO

stg

Ratings

800

200

150

-55~150

Unit

°C

Electrical Characteristics

Characteristic

Collector-Base breakdown voltage

Collector-Emitter breakdown voltage

Emitter-Base breakdown voltage

Collector cut-off current

Emitter cut-off current

DC current gain

Collector-Emitter saturation voltage

Transition frequency

Collector output capacitance

(Ta=25°C)

Symbol

CBO

CEO

EBO

CBO

EBO

CE(sat)

Test Condition

=100μA, I

=1mA, I

=10μA, I

=35V, I

=5V, I

=1V, I

=100mA

=500mA, I

=50mA

=5V, I

=10mA

=10V, I

=0, f=1MHz

Min. Typ. Max.

100

120

0.1

320

0.5

Unit

μA

MHz

* : h

rank / O : 100 ~ 200, Y : 160 ~ 320

KSD-T5D001-000

2SC5344UY Related Products

	2SC5344UY	2SC5344UO
Description	Transistor,	Transistor,
Reach Compliance Code	unknow	unknow
Maximum collector current (IC)	0.8 A	0.8 A
Configuration	Single	Single
Minimum DC current gain (hFE)	160	100
Maximum operating temperature	150 °C	150 °C
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	0.2 W	0.2 W
surface mount	YES	YES
Base Number Matches	1	1
