TDA8707HGP datasheet, PDF - EEWORLD Datasheet

TDA8707HGP: DescriptionIC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PQFP44, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size254KB，11 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

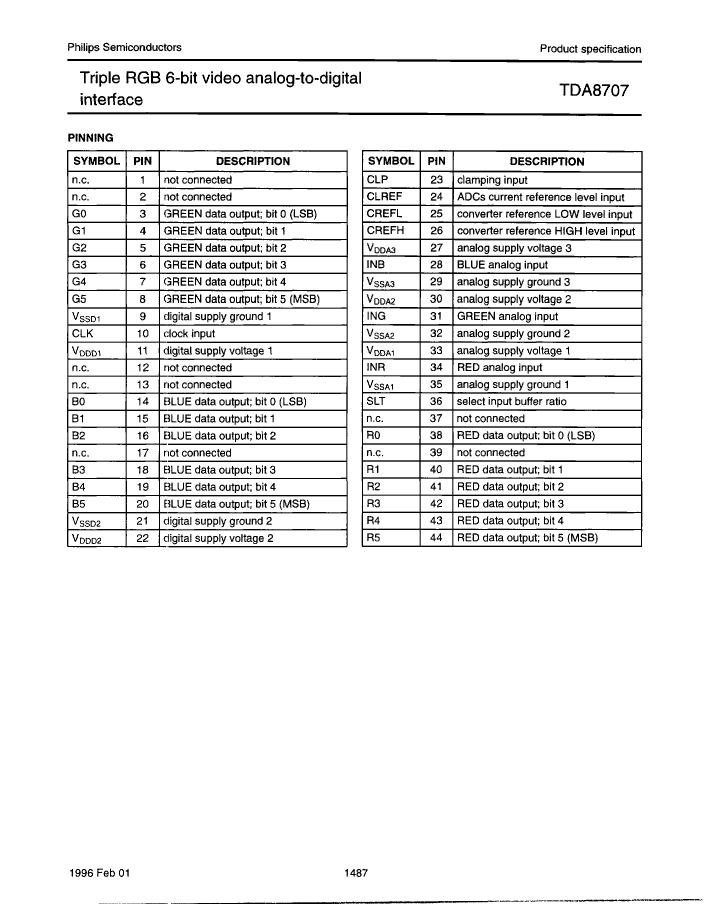

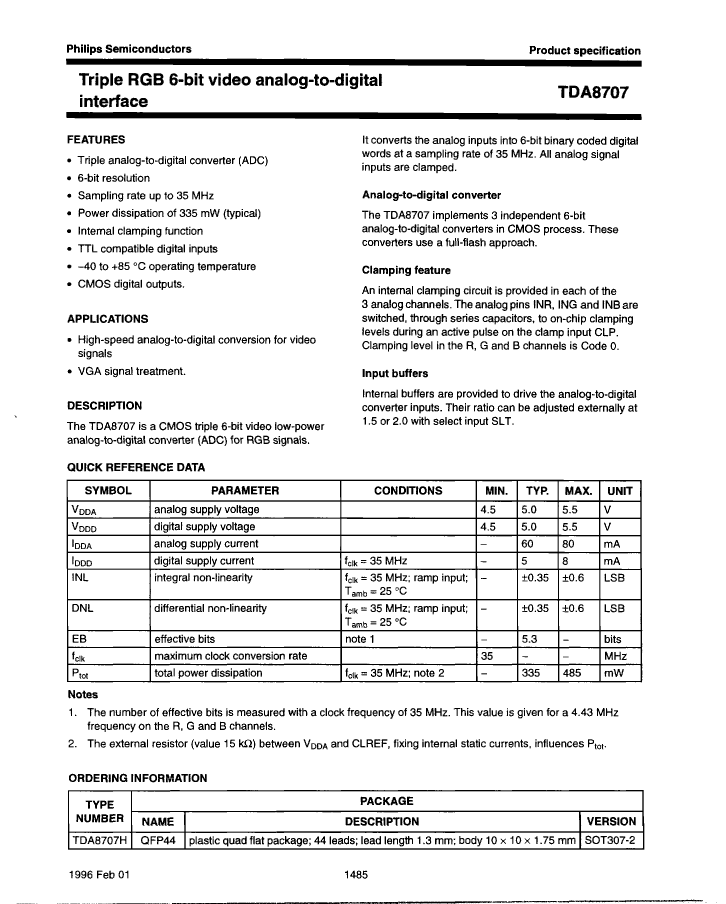

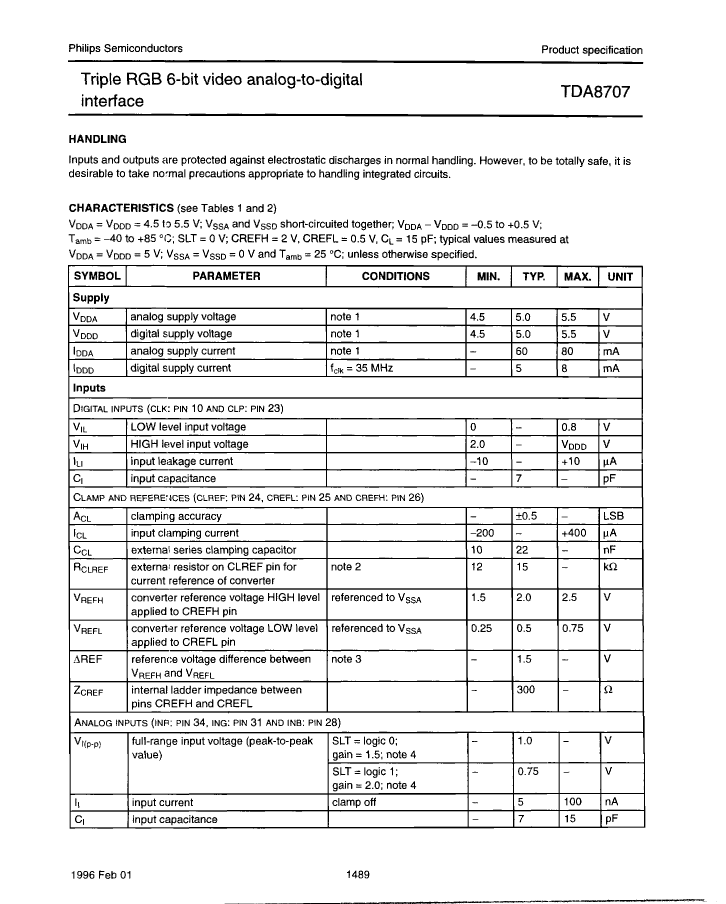

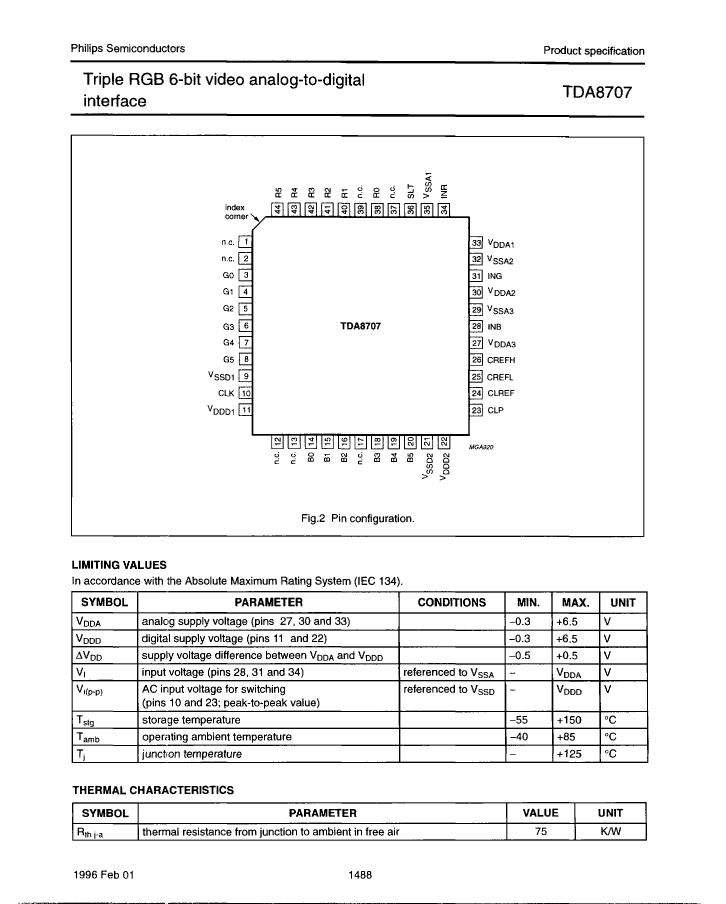

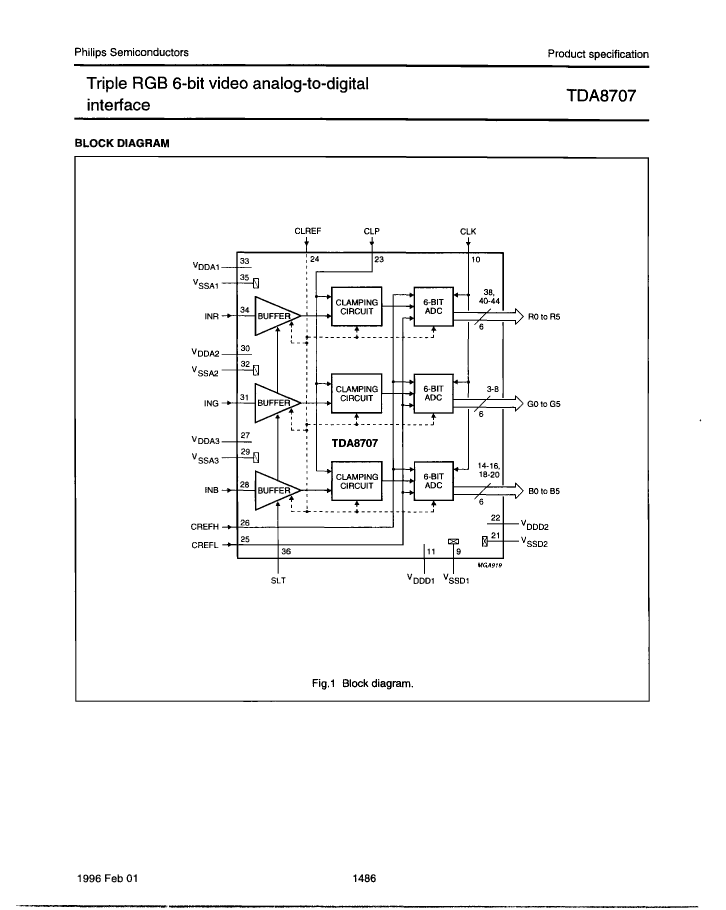

TDA8707HGP Overview

IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PQFP44, Analog to Digital Converter

Parameter Name	Attribute value
Maker	NXP
package instruction	QFP,
Reach Compliance Code	unknown
ECCN code	EAR99
Converter type	ADC, FLASH METHOD
JESD-30 code	S-PQFP-G44
length	10 mm
Maximum linear error (EL)	0.9375%
Number of analog input channels	3
Number of digits	6
Number of functions	1
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	BINARY CODED DECIMAL
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Sampling rate	35 MHz
Maximum seat height	2.1 mm
Maximum slew rate	80 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm

	TDA8707HGP	TDA8707HGPB
Description	IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PQFP44, Analog to Digital Converter	IC 3-CH 6-BIT FLASH METHOD ADC, PARALLEL ACCESS, PQFP44, Analog to Digital Converter
package instruction	QFP,	QFP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	S-PQFP-G44	S-PQFP-G44
length	10 mm	10 mm
Maximum linear error (EL)	0.9375%	0.9375%
Number of analog input channels	3	3
Number of digits	6	6
Number of functions	1	1
Number of terminals	44	44
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output bit code	BINARY CODED DECIMAL	BINARY CODED DECIMAL
Output format	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
Sampling rate	35 MHz	35 MHz
Maximum seat height	2.1 mm	2.1 mm
Maximum slew rate	80 mA	80 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
width	10 mm	10 mm
