BK/S505SC-1.25-R datasheet, PDF

Datasheet> All Categories > Circuit protection> Circuit protection> BK/S505SC-1.25-R

BK/S505SC-1.25-R: DescriptionElectric Fuse, Time Lag Blow, 1.25A, 1500A (IR), 5x20mm,; CategoryCircuit protection Circuit protection; File Size1MB，6 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

BK/S505SC-1.25-R Overview

Electric Fuse, Time Lag Blow, 1.25A, 1500A (IR), 5x20mm,

BK/S505SC-1.25-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	24 mm
Body length or diameter	6 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
physical size	6mm x 24mm
Pre-discharge rating	2.14 A2/s
Rated breaking capacity	1500 A
Rated current	1.25 A
Rated voltage	250 V
Guideline	BSI, CQC, IMQ, PSE, SEMKO, TUV, VDE, UL
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

Technical Data

10132

Effective May 2015

Supersedes September 2013

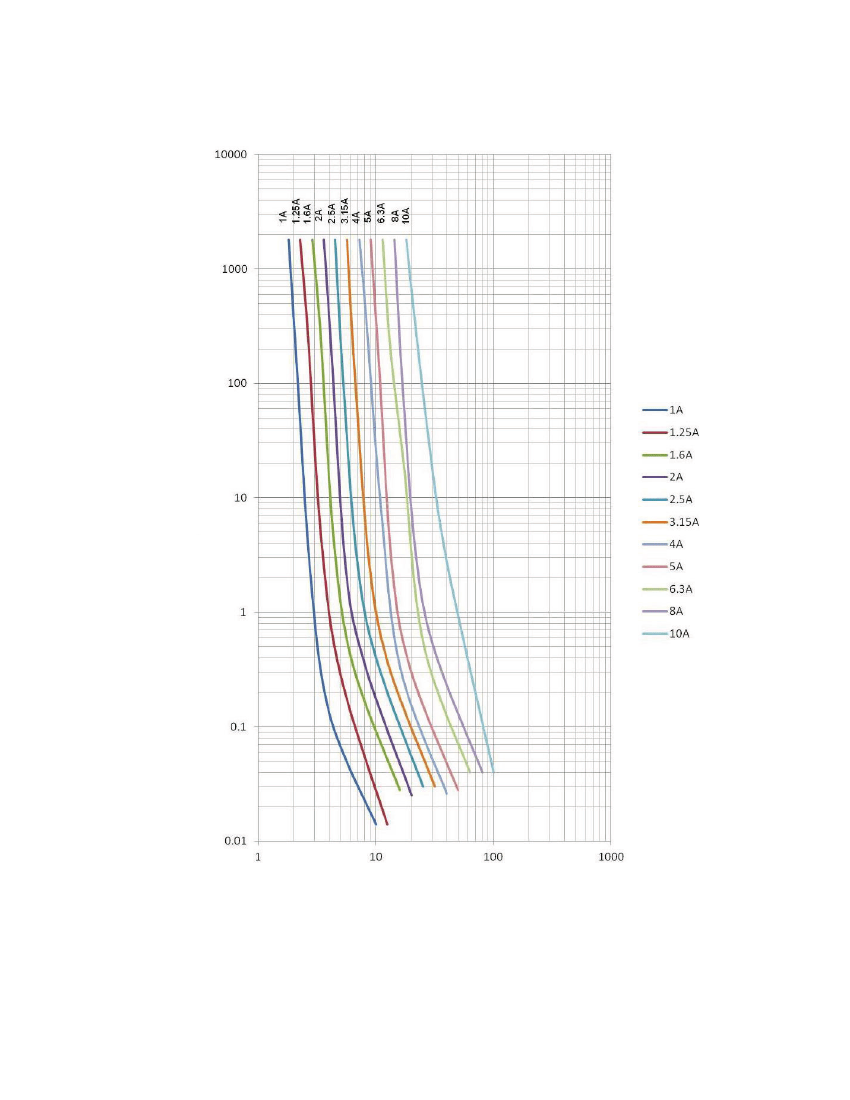

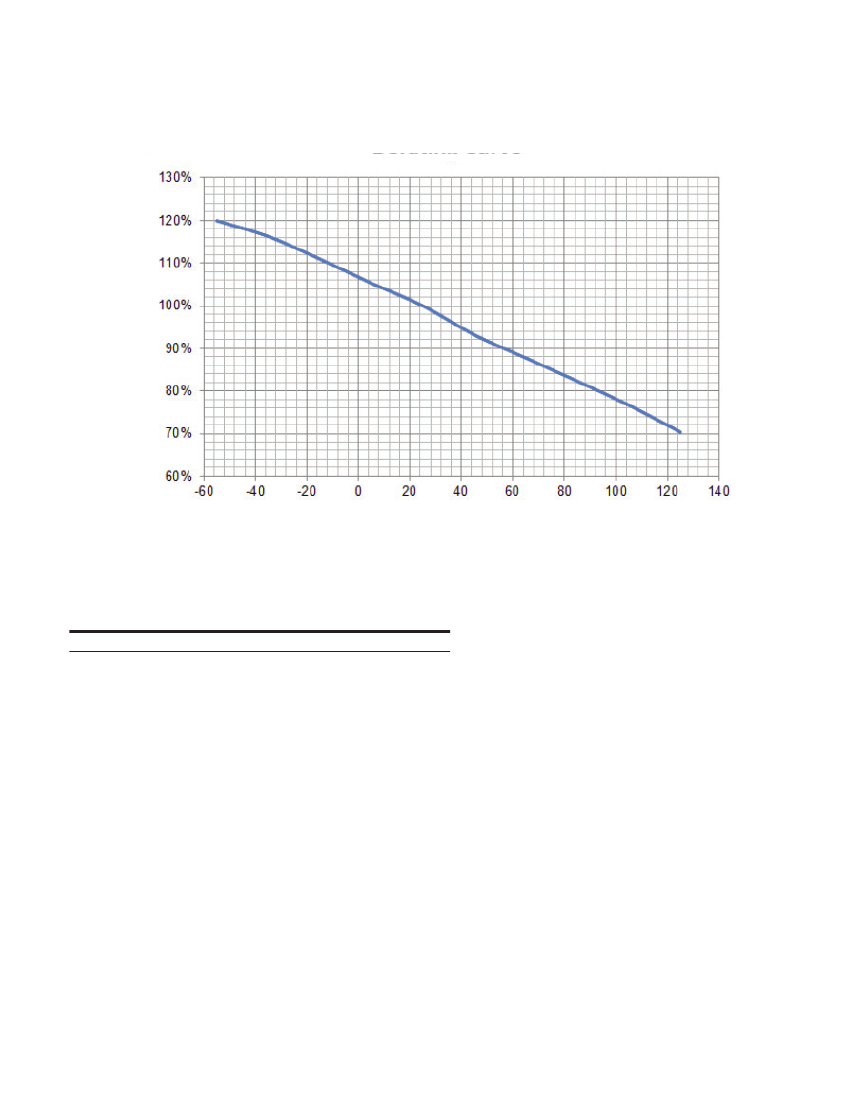

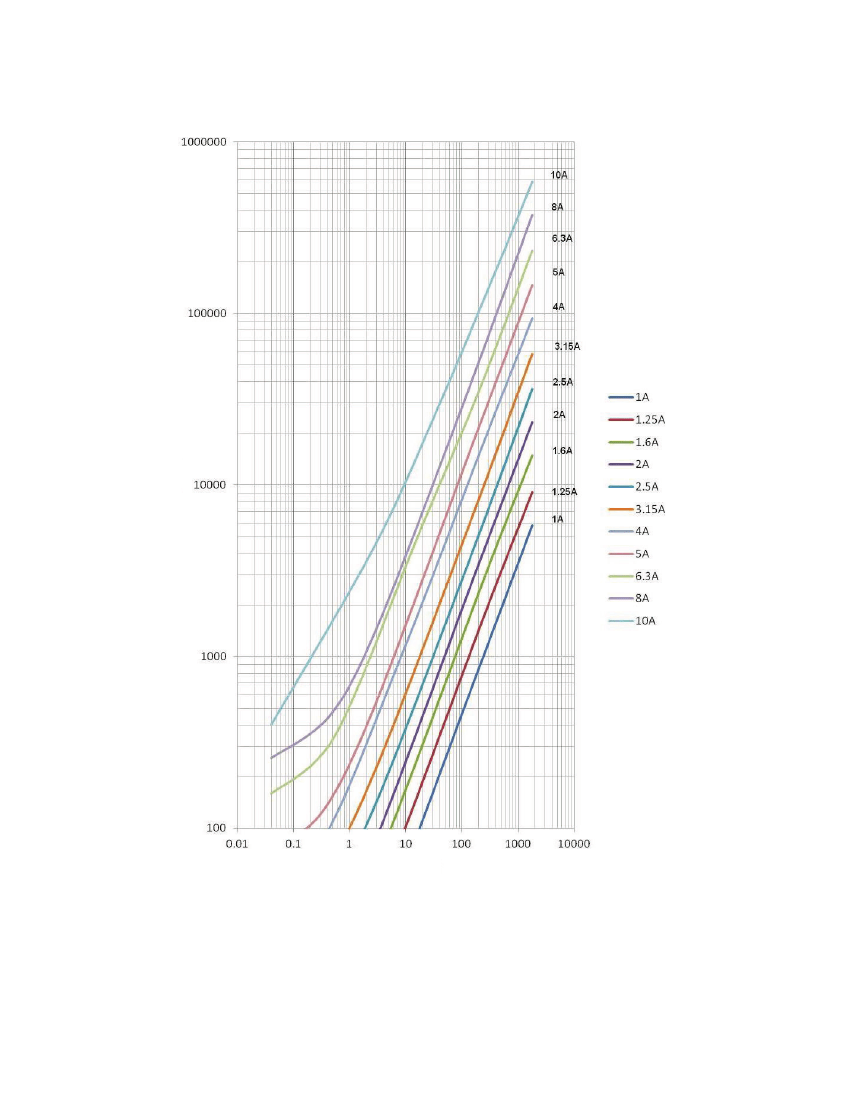

S505SC

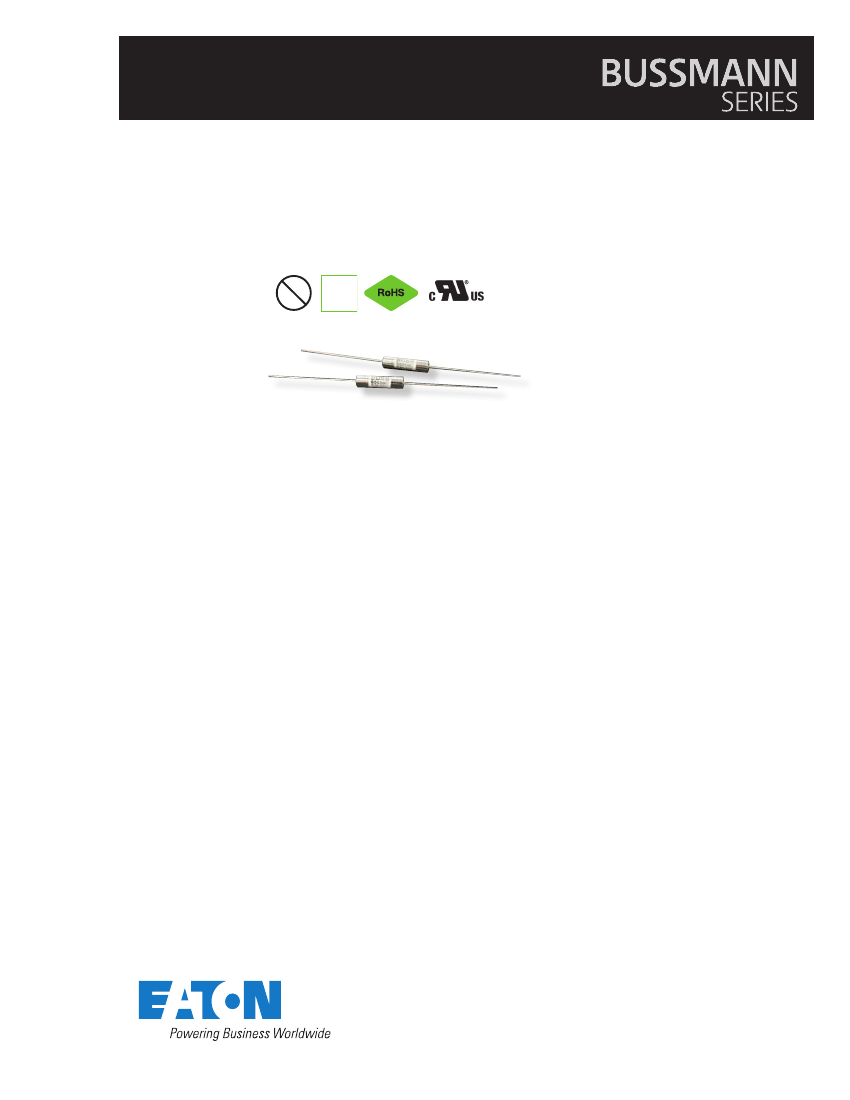

5 x 20 mm Time-delay, axial lead ceramic tube fuses

FREE

HALOGEN

Agency information

•

cURus Recognition file number: E19180, Guide

JDYX2/JDYX8

SEMKO: File 1219335, 1310139

VDE: File 40024252, 40037710 (1-8A)

BSI: File KM55676

IMQ: File CA03.00529

PSE/JET: JET1641-31003-1010, JET1641-31003-

2002, JET7042-31003-2001

CQC: 12012079823, 13012103317

KC-Mark: File SU05011-12003, SU05011-12004,

SU05011-12005A; SU05030-13003A, SU05030-

13004, SU05030-13005

TUV: J50233218

•

5 x 20mm fuse with axial leads

•

Product description

•

Time-delay, high breaking capacity

Designed to IEC 60127-2

Nickel-plated brass end cap construction

5 x 20mm physical size

Halogen free, lead free, RoHS compliant

•

Ordering

•

Applications

Primary circuit protection:

•

Specify packaging prefix and part number

as shown

Packaging prefix

Power supplies

LED lighting

LED/LCD televisions

Appliances and white goods

Printers

BK/

S505SC-1-R

Part number

Packaging prefixes

•

BK/ 20 parts in a carrier, 5 carriers in a box

TR2/1500 parts per reel, tape width 52mm

TR3/1500 parts per reel, tape width 54mm
