FX252B-FREQ1-BBD10010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FX252B-FREQ1-BBD10010

FX252B-FREQ1-BBD10010: DescriptionParallel - Fundamental Quartz Crystal, 16MHz Min, 26MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size213KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FX252B-FREQ1-BBD10010 Overview

Parallel - Fundamental Quartz Crystal, 16MHz Min, 26MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

FX252B-FREQ1-BBD10010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99

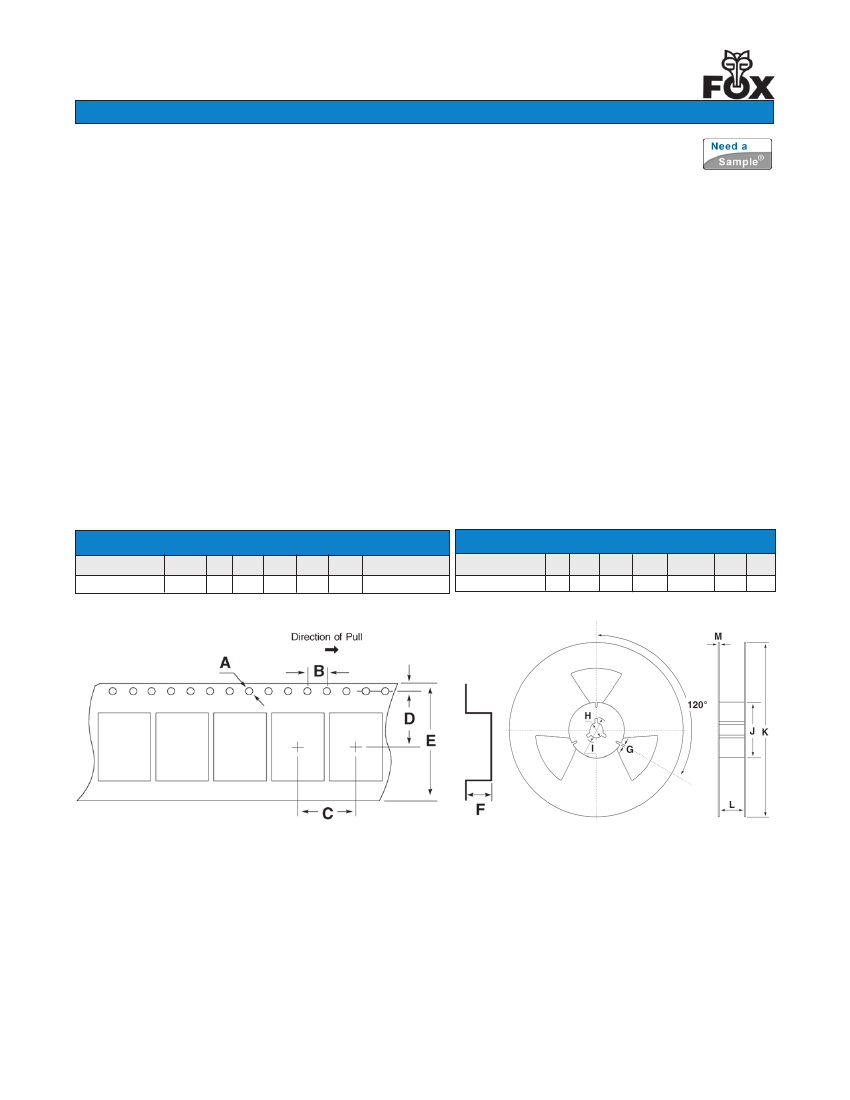

Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e3/e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	26 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L2.5XB2.0XH0.6 (mm)/L0.098XB0.079XH0.024 (inch)
Series resistance	200 Ω
surface mount	YES
Terminal surface	TIN/GOLD

Preview

Download Datasheet

View All

Ceramic SMD Crystal

Model: FX252B Series

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 10/20/2008

http://www.foxonline.com/need_a_sample.htm

FEATURES

• Ultra Low Profile

• Fundamental

“Now available as FX252BS. See PCN310 for details.”

•

• PART NUMBER

Learn More - Internet Required

Part Number

637S-Frequency-xxxxx

Model Number

Frequency Range (MHz)

16.000 ~ 54.000

2 .5 ±0.1

FX252B

2 .0 ±0.1

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (Co)

Load Capacitance

)

Drive Level

Aging per year

Reflow Soldering Temperature

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

16.000 ~ 54.000 MHz

±50 PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

5 pF

10 pF~Series

(Customer Specified)

100 µW

±5 PPM

260ºC x 10 Seconds (2 Cycles)

Au/Sn

T o p V iew

0 .6 M ax

1 .0

0 .7

B o ttom

Tolerances and stabilities to ±10 PPM, operating temps to -40ºC ~ 85ºC available.

Note: Dimensional drawing is for reference to critical specifications defined by size

measurements. Certain non-critical visual attributes, such as side castellations, etc. may vary.

The above specifications, having been carefully prepared and checked, is believed to be ac-

curate at the time of publication; however, no responsibility is assumed by Fox Electronics for

inaccuracies

All specifications subject to change without notice.

R e co m m ended

S o ld e r P a d Layout

0 .95

0 .85

0 .3

0 .5

Developed Frequencies

16.000

19.680

24.000

32.000

54.000

Frequency Range

(MHz)

16.000 ~ 26.000

26.000+ ~ 35.000

35.000+ ~ 54.000

19.200

19.800

26.000

48.000

All dimensions are in millimeters.

Operating Mode

Fundamental

Max ESR

Ω

200

100

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
