NOTES

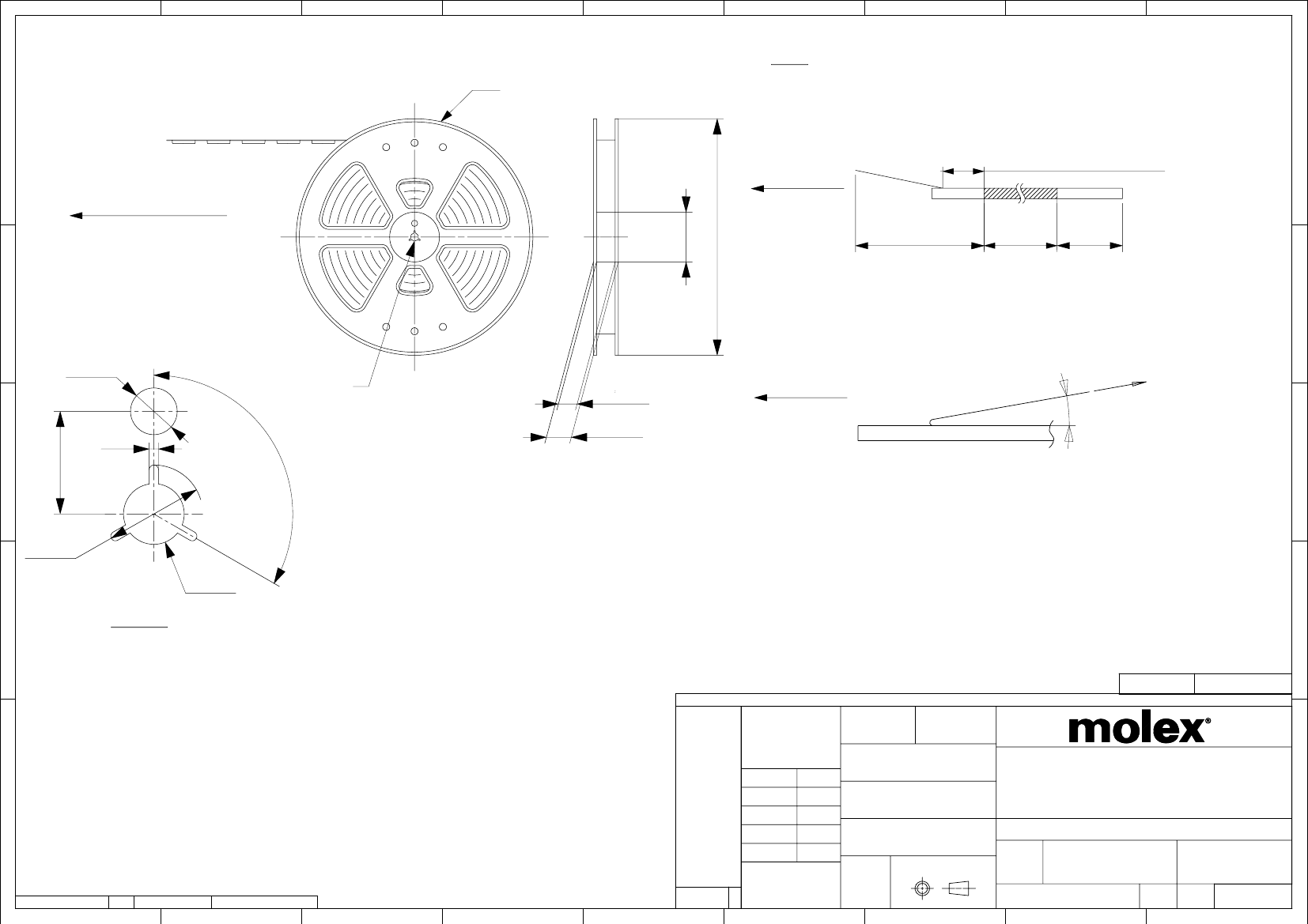

REEL
E
1.½品詳細寸法については、527931000 DOC PART 000図面を参照下さい。
RE DETAILED DIMENSION, SEE 527931000 DOC PART 000
2. 梱包数量：1000個／リール
NUMBER OF CONNECTORS : 1000 PCS/REEL
3. リードテープ長さ LEAD TAPE LENGTH
E
⌀
330
±
2
(
⌀
80)
引き出し方向
PULL OUT DIRECTION
引き出し方向
PULL OUT
DIRECTION
400 MIN.
20PCS.MIN.
トップテープ接着部(空エンボス)
TOP TAPE BONDED PART.(EMPTY)
部品挿入部
COMPONENT
SUPPLIER
.
末端部(空部)
TAIL PART
(EMPTY)
40 MIN.
D
(
⌀
10
)
4. トップテープの剥離強度：0.1N-1.3N(10-130gf)(剥離方向は下図参照)
尚、本規格値は出荷時に適用。(½し、輸送時に剥離が発生しないこと。)
PEELING OFF FORCE OF TOP TAPE : 0.1N-1.3N(10-130gf)
(PEELING DIRECTION AS SHOWN IN FOLLOWING FIG.)
THIS REQUIREMENT SHOULD BE APPLIED AT SHIPMENT.
PEEL OFF SHOULD NOT BE ALLOWED, DURING TRANSPORTATION.
D
F
(
120
°
)
D
E
±
1
±
1
引き出し方向
PULL OUT
DIRECTION
剥離方向
PEEL OFF DIRECTION
10
°
(
2
)
C
5. 材料(MATERIAL)
キャリアテープ(CARRIER TAPE)：ポリプロピレン(POLYPROPYLENE)
トップテープ(TOP TAPE)：PET, PE, PEF
リール(REEL)：ポリスチレン(PS) ＜リサイクル材を含む>
POLSTYRENE(PS) <RECYCLE MATERIAL CONTAINED>
6. 本½品は 52793**90 の鉛フリー品である。
THIS PRODUCT IS LEAD FREE OF 52793**90.
(
22
)
C
(
⌀
21
)
(
⌀
13
)
B
DETAIL F
B
52793**70
MODEL NO.
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/02/03
2016/09/28
2016/09/29
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
NTS
4 PLACES
±
±
±
±
±
0.2
0.2
RLALSANGI
CHK'D BY
DATE
2016/02/03
2016/09/28
DATE
108819
RLALSANGI
KTAKAHASHI
TKUSUHARA01
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
1.0 FFC CONN ASSY NON ZIF SMT RA
UPPER CONTACT EMBSTP PKG -LEAD FREE-
0.25
0.3
0.3
KTAKAHASHI
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
TKUSUHARA01
DRAWING SIZE
2016/09/29
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
9
P1
RELEASE DATE
29.09.2016
8
01:01:06
7
6
5
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
52793
DOCUMENT NUMBER
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
527930000
2
PSD
000
1
1 OF 5
9
8
7
6
5
4
3
2
1
E
